500mm Hydraulic Rebar Shear Line with 42kw Motor

Brand Name:	GUTE
MOQ:	1
Price:	$58,000

Detail Information

Product Description

Detail Information

Place of Origin:

Sichuan, China

Voltage:

380V

Dimension:

30*5*3 M

Power:

42kw

Weight:

15000 Kg

Cutting Edge Width:

500mm

Shearing Mode:

Hydraulic Shearing

Roller Speed:

0-100m/min Adjustable

Maximum Shear Length:

12m

Minimum Shear Length:

1.4m

Shear Accuracy:

±5mm

Shear Frequency:

≤12n/min

Silo Series:

Length Control Mode:

Servo

Blade Thickness:

40mm

Pay-off Capacity:

2500KG

Highlight:

500mm hydraulic rebar shear line

42kw motor rebar cutter

industrial rebar shear machine

Product Description

Good Quality Custom Cutting Edge Width 500mm Rebar Shear Line Rebar Shear Line SGS150

Product Specifications

Attribute	Value
Video Outgoing-Inspection	Provided
Machinery Test Report	Provided
Core Components	Motor
Voltage	380V
Dimension (L×W×H)	30×5×3 m
Power (kW)	42
Weight (kg)	15000
Key Selling Points	Easy to Operate
Warranty	1 Year
Cutting Edge Width	500mm
Shearing Mode	Hydraulic Shearing
Roller Speed	0-100m/min adjustable
Maximum Shear Length	12m
Minimum Shear Length	1.4m
Shear Accuracy	±5mm
Shear Frequency	≤12n/min
Silo Series	3
Rated Power	42kw
Total Weight	15t

Product Description

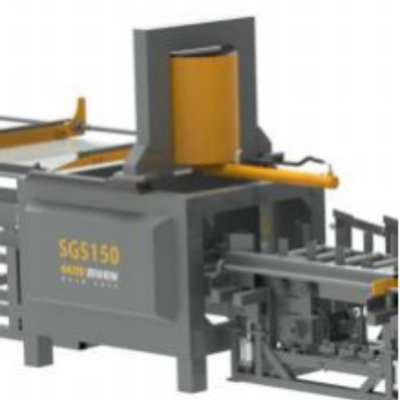

CNC REBAR SHEAR LINE SGS150

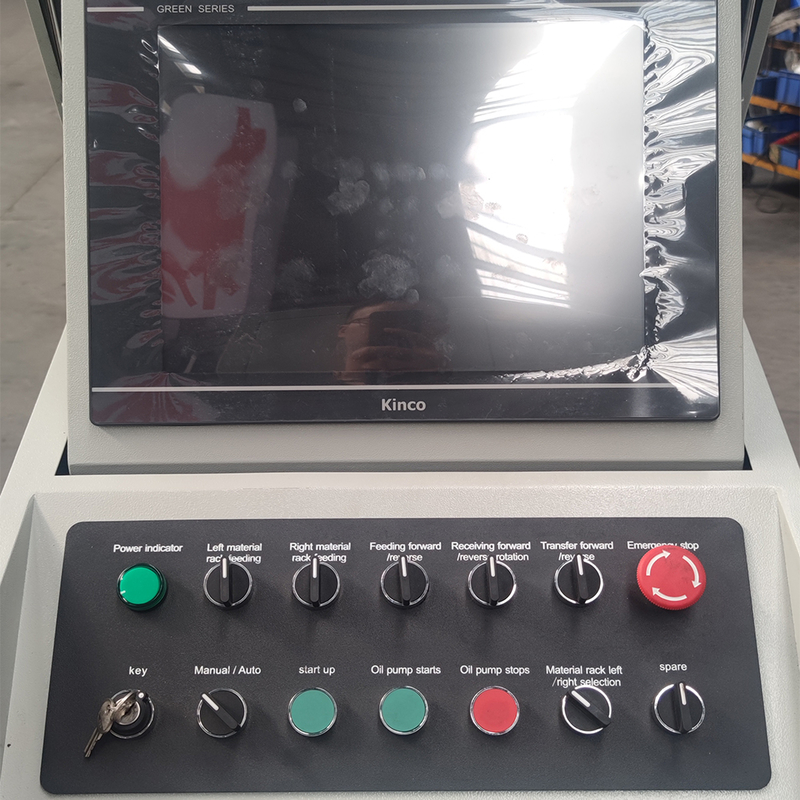

PLC control shearing precision, high precision of finished steel bar, suitable for shearing processing of steel bar with many specifications and small batches.
The machine has 24 fixed length plates, all steel plate structure, with fixed length servo motor for fast and accurate positioning.
Large length blade and inclined blade design ensure multiple reinforcing bars can be cut simultaneously.
Equipped with centralized oil supply system for long life operation.

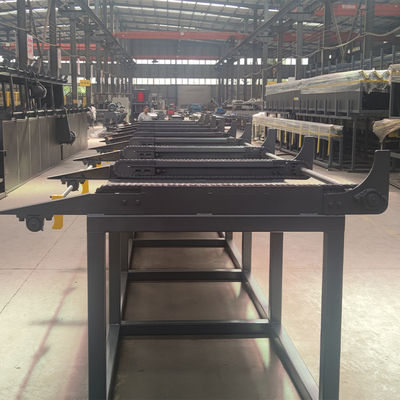

Level 3 product storage mechanism facilitates collection of multiple products.
Thickened and widened gears for stable, efficient cutting with fully encapsulated shield for enhanced safety.
High strength spiral elevator for positioning screw prevents deformation and ensures high positioning accuracy.
Cutting length can be set arbitrarily for continuous work with high fixed-length cutting accuracy.
Key-guided chains with rolling friction design for minimal wear, long service life, and high transmission efficiency.

Straightening Structure

Straightening wheel made from forged alloy tool steel for superior wear resistance and impact resistance.

Preset wheel plate constructed from 30mm thick steel plate for high strength and durability under impact load.

Multi-split Type Blade

Multi-split type blade design doubles lifespan compared to standard one-piece blades.

Servo Motor

16KW high-power servo motor ensures smooth traction operation.

Pneumatic Element

Premium Airtac brand pneumatic components from Taiwan ensure extended service life.

Split thickening blade design with 40mm thickness for multiple uses.

Pay-Off System

2 pay-off units per machine
2500KG maximum carrying capacity per pay-off
Designed for easy disassembly and transport
Optional brake customization available

Automatic Collector (Optional)

Automatically collects finished stirrups
Adjustable collection quantity settings
Simplifies finished product packaging

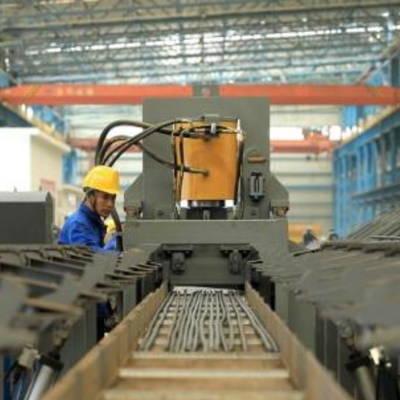

Application

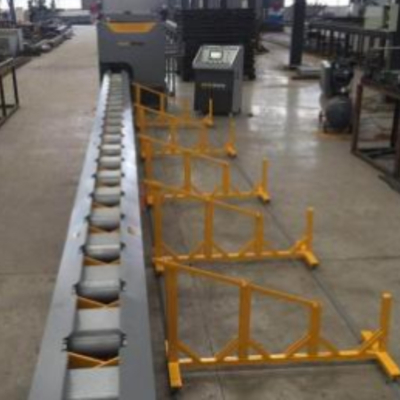

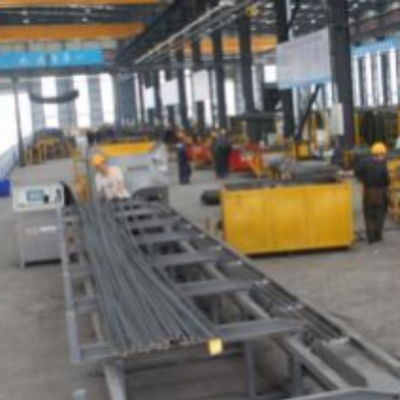

Production Line

Company Profile

GUTE is a manufacturer of construction machinery with 28 years of history and more than 250 workers producing steel bar processing machinery.

Exported to more than 70 countries with 70% export share of steel bar bender/cutter
Over 200 agents in Chinese market and 10 owned brand shops across China
OEM provider for many famous European brands
Machines sold to Russia, Italy, Brazil, Algeria, India, Argentina, Saudi Arabia, Middle East and more than 70 countries worldwide
Specialists in reinforcement steel bar bending, shearing, welding, and straightening machines
Expert in fast, professional customized services with strong R&D and quality control
Manufacturer of highly precise, durable semi-automatic and fully automatic steel bar machines

Transportation

Frequently Asked Questions

Q: What's the producing time and delivery time?

A: Order less than 5 pcs, we have stock, delivery to Shanghai port about 5 days. And order more than 5 pcs, about 10-15 working days.

Q: What's the MOQ?

A: 5 pcs. For sample order, 1 pc is OK, there's extra port and delivery charges.

Q: What's the departure port?

A: Usually Shanghai port, Guangzhou, Qingdao, Tianjin and other Chinese port is also OK.

Q: What's the packing?

A: Iron Pallet and Polly wooden cases (no fumigation needed).

Q: What's the payment term?

A: T/T, L/C, DP, West union, PayPal.

Our Service

Your inquiry related to our products or prices will be replied in 24 hours
Protection of your sales area, design ideas and all private information
Best quality and competitive price

Tags:

CNC shear line 28m×3m×2m

12m CNC Rebar Cutting line

Electric Knife CNC Cutting Shear Line
