PLC automatic control 16mm CNC Stirrup Bender Automatic Stirrup Making Machine

Brand Name: GUTE
Model Number: SGW16D-4
MOQ: 1set
Price: 75000-95000USD/SET
Packaging Details: plywood case
Payment Terms: L/C, T/T, D/P, D/A
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO 9001:2000
Product Name:
Cnc Bendar
MODEL:
SGW16D-4
OPERATION:
Automatic Wire Feeding System(CNC)/Air-operated Systerm
SINGLE WIRE BENDING:
6-16 Mm
DOUBLE WIRE BENDING:
6-13mm
MAX. LENGTH OF STIRRUP SIDE:
1000 Mm
BENDING DIRECTION:
Bi-direction
LENGTH ACCURACY:
±1mm
ANGLE ACCURACY:
±1°
L×W×H:
14000×1460×2600mm
WEIGHT:
10T
MAX.BENDING.SPEED:
1000°/sec
MAX.TRACTION. SPEED:
100m/min
TRACTION SERVICE MOTOR POWER:
29KW✖2PSC
BENDING SERVICE MOTOR POWER:
22KW
Supply Ability:
200set/month
Product Description

PCL automatic control 16mm CNC Stirrup Bender Automatic Stirrup Making Machine

01  Overview
1. With the capacity of making stirrups from 6-16mm reinforced coil wires as well as 12-16mm straight wires.
2.​​​​​ PLC automatic control, high degree of automation.
3. Dual-power traction mechanism(tradional only one traction motor).
4. European Standard Forming wheel and center pile dual-purpose bending mechanism.

02



Scope of application

  • Mainly used in the construction of housing construction, highways, roads and bridges, subways and other projects.

03



Device parameters

Single wire bending diameter 6–16mm
Rebar double wire bending diameter 6–12mm
Processing material Steel Coil
Maximum towing speed

100 m/min
Maximum bending speed

1050°/sec
Bending direction Bi-direction

Traction service motor power

 29 KW X 2 PCS
Bending service motor power 22 KW
Moving motor power 2 KW
Cutting motor power 7.5 KW
Aerage electric consumption 9KW/H
Total power 100KW
Longest stirrup side 1000mm
Shortest stirrup side 65mm
The longest length of the rib 7m
Main machine weight 6.0T
Traction control method Servo
Bend control method Servo
L*W*H 14000×1460×2600 mm
Total Weight 5.5T

04



Equipment advantages

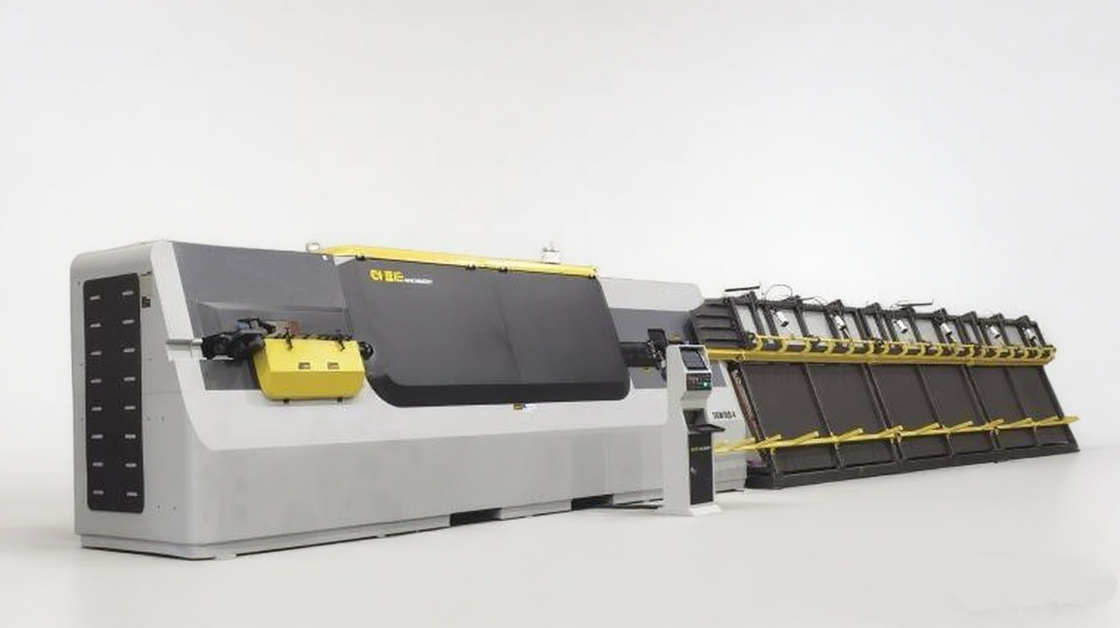

PLC automatic control 16mm CNC Stirrup Bender Automatic Stirrup Making Machine 0

PLC automatic control 16mm CNC Stirrup Bender Automatic Stirrup Making Machine 1

  • PLC automatic control, high degree of automation.
    The product uses a Siemenz brand of PLC as the core controller. All action processes are automatically and quickly executed, realizing the full automation of the entire stirrup production process; the traction adopts servo control, and its speed can be quickly adjusted according to actual production needs; the bending drive system uses a high-power servo closed-loop system to ensure bending accuracy and bending speed. A convenient, simple, efficient and fast intelligent human-computer interaction system has been formed.

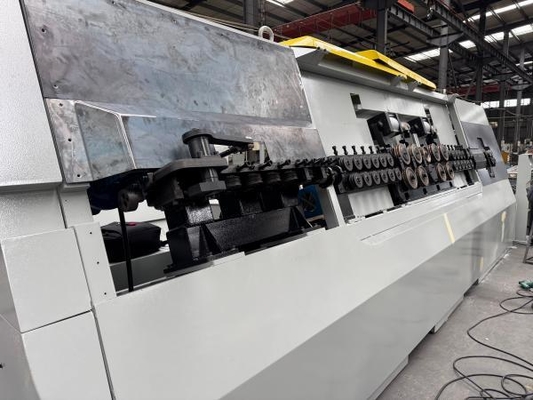

  • Multi-wheel straightening mechanism
    The number of pre-adjusting wheels and straightening wheels is 1/3 more than that of tradional bending machines, with better straightening effect, lower load on a single straightening wheel, and longer service life of the straightening wheel.

PLC automatic control 16mm CNC Stirrup Bender Automatic Stirrup Making Machine 2



  • The product uses a Siemenz brand of PLC as the core controller.
  • All action processes are automatically and quickly executed, realizing the full automation of the entire stirrup production process; the traction adopts servo control, and its speed can be quickly adjusted according to actual production needs; the bending drive system uses a high-power servo closed-loop system to ensure bending accuracy and bending speed. A convenient, simple, efficient and fast intelligent human-computer interaction system has been formed.

PLC automatic control 16mm CNC Stirrup Bender Automatic Stirrup Making Machine 3

  • ​​European Standard Forming wheel and center pile dual-purpose bending mechanism
  • For different stirrup bending requirements, the forming wheel or center pile can be selected, which has a wider range of adaptability and produces stirrups that better meet the requirements.



PLC automatic control 16mm CNC Stirrup Bender Automatic Stirrup Making Machine 4​

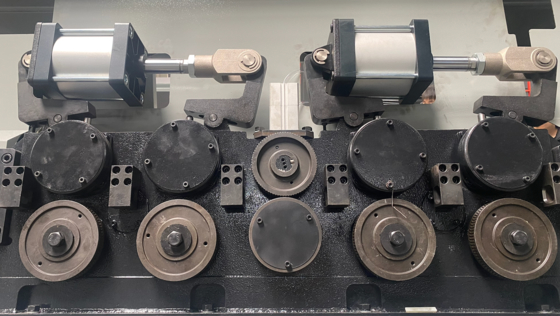

Dual-power traction mechanism(tradional only one traction motor).The innovative use of Dual traction servo motor + reducer power input has 4 sets of power wheels,to make sure enough power to straight 16mm, which can reduce the load of each set of power wheels, increase the service life of the corresponding parts, and also reduce the indentation of the steel bars.​​

Our factory

PLC automatic control 16mm CNC Stirrup Bender Automatic Stirrup Making Machine 5

PLC automatic control 16mm CNC Stirrup Bender Automatic Stirrup Making Machine 6













Our service

PLC automatic control 16mm CNC Stirrup Bender Automatic Stirrup Making Machine 8















Certification
