CNC Stirrup Bending Machine

Steel Wire CNC Stirrup Hook Bender Machine For Steel Processing Plant

All Category

Automatic Stirrup Bending Machine

Automatic Rebar Bending Machine

Rebar Straightening And Cutting Machine

Mr. Jurrivh

sales5@cdgute.com

008618349380338

Contact Now

Steel Wire CNC Stirrup Hook Bender Machine For Steel Processing Plant

Brand Name:	GUTE
Model Number:	SGW08A
MOQ:	1set
Price:	11000-13000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

SINGLE WIRE BENDING:

4-8 Mm

DOUBLE WIRE BENDING:

4-6mm

MAX. BENDING ANGLE:

MAX. LENGTH OF STIRRUP SIDE:

700 Mm

MIN. LENGTH OF STIRRUP SIDE:

60 Mm

BENDING DIRECTION:

One-direction

TOTAL POWER:

L×W×H:

2510×810×1630 Mm

WEIGHT:

Supply Ability:

200set/month

Highlight:

CNC Stirrup hook Bender Machine

Steel Wire Stirrup Hook Bender Machine

Product Description

Steel wire CNC Stirrup hook Bender Machine For Steel processing plant

Overview

This is a very cost-effective CNC steel bending machine, suitable for small steel processing plants to use. Do not need air compressor and oil, high efficiency, low maintenance costs. Can process a variety of graphics, hoop machine, circle, retractor and other reinforcement graphics.

Scope of application

Mainly used in the construction of housing construction, steel processing plant

Device parameters

Single wire bending diameter	4–8mm
Double wire bending diameter	4–6mm
Processing material	Steel coil
Maximum towing speed	75-100 m/min
Maximum towing speed	1200°/sec
Rib straightness error	0.02/m
Total power	12KW
Power consumption	3KW/H
Bending direction	One-direction
Stirrup length accuracy	±1mm
Rib length accuracy	±5mm
Angle accuracy	±1°
Maximum bending angle	±180°
Maximum bending angle	700mm
Shortest stirrup side	60mm
Working temperature	-5~40 ℃
Traction control method	Servo
Bend control method	Servo
Loopback control method	Servo
Total Weight	1.2T

Equipment advantages

1200-2400 stirrups production per hour, 1200 stirrups for 8mm single-wire,2400 stirrups for double-wire.
1 year free warranty service.
The electric components are of famous brands such as CHINT and MEAN WEL. The power of traction and bending is provided by a servo motor, with high efficiency and accuracy Supports multi - language interactive interface, and simple operation.

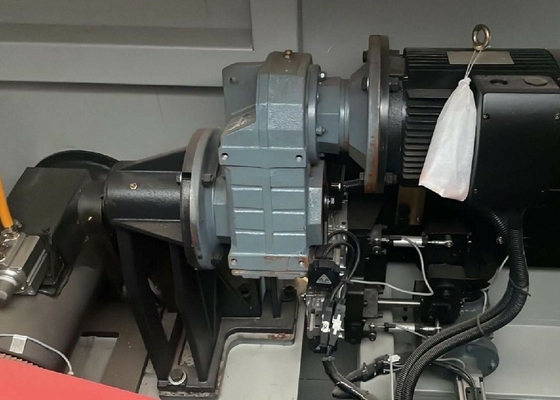

Each transmission system adopts standard reducer transmission, with stable structure and high transmission efficiency.
Lightweight and compact body, more convenient and easy to transport and install.
The production system structure does not require air source and hydraulic pressure, it can be used immediately after plugging in, and the use cost is lower, convenient and fast.
Function:
This machine can process stirrup square, rectangular, circles, hooks, long straight bar and so on hundreds of shapes.
Process §4-8mm single wires and §4-6mm double wires for deformed steel coil.

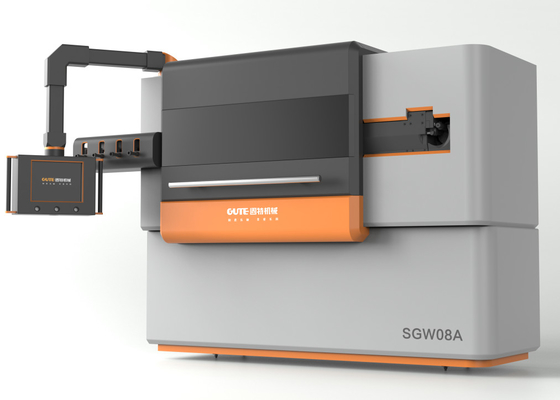

Steel Wire CNC Stirrup Hook Bender Machine For Steel Processing Plant 0

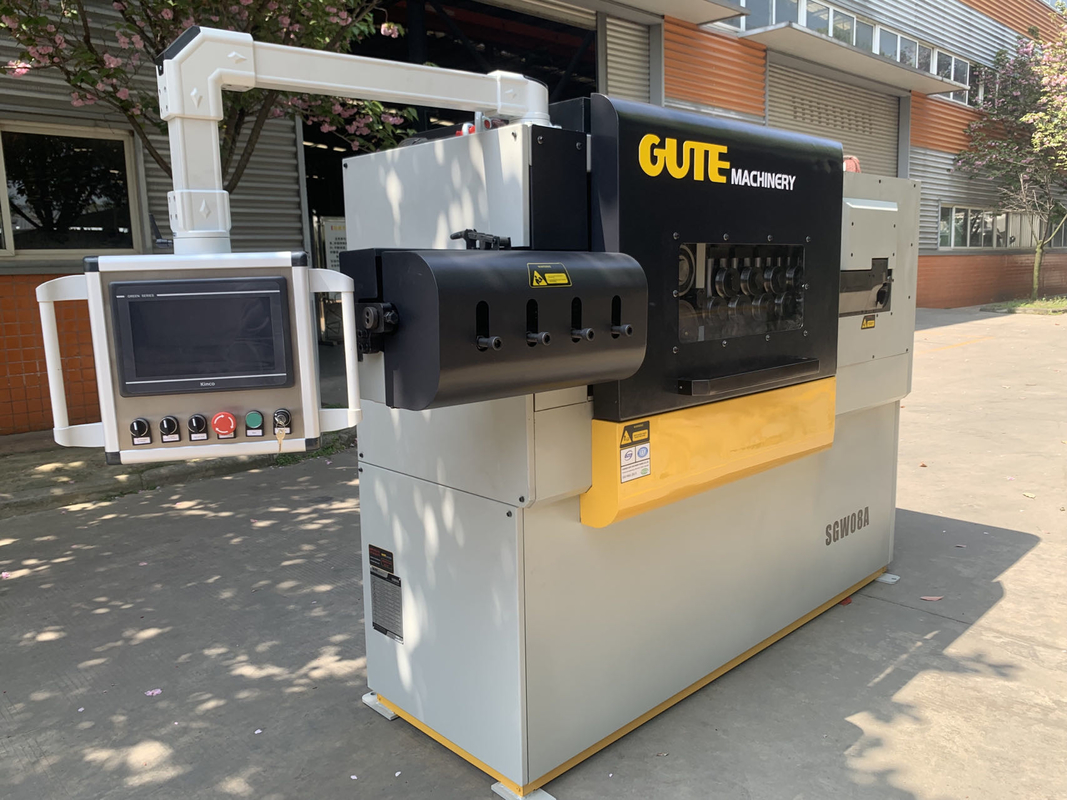

Steel Wire CNC Stirrup Hook Bender Machine For Steel Processing Plant 1

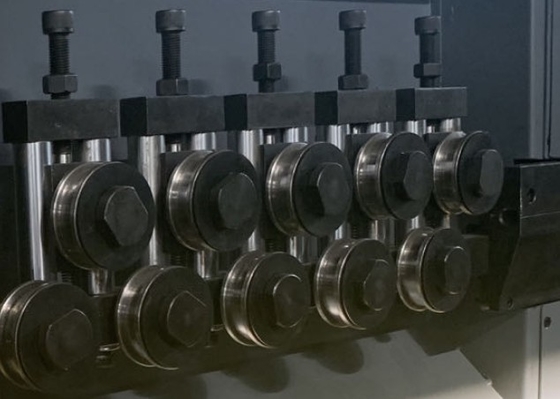

Steel Wire CNC Stirrup Hook Bender Machine For Steel Processing Plant 2

Steel Wire CNC Stirrup Hook Bender Machine For Steel Processing Plant 4

Steel Wire CNC Stirrup Hook Bender Machine For Steel Processing Plant 5

Steel Wire CNC Stirrup Hook Bender Machine For Steel Processing Plant 6

Our factory

Steel Wire CNC Stirrup Hook Bender Machine For Steel Processing Plant 7

Steel Wire CNC Stirrup Hook Bender Machine For Steel Processing Plant 8

Our service

Steel Wire CNC Stirrup Hook Bender Machine For Steel Processing Plant 10

Certification

Steel Wire CNC Stirrup Hook Bender Machine For Steel Processing Plant 11
