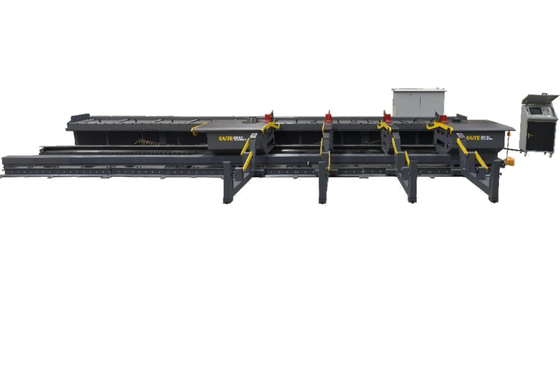

America standard CSA/UL Certificate CNC Rebar Double Head Bending machine HB45

1. Complete sets of equipment has UL or CSA certificate;

2. The equipment adopts Siemens electrical components, control system, PLC, servo motor, touch screen, etc.;

3. The key pneumatic elements adopt the Fisesto (Germany) brand;

4. Key bearing, oil seal are SKF (Sweden), NSK (Japan) and other international well-known brands;

6. Special design for North America bar bending R and tensile ;

7. The equipment adopts disc tooth structure, long service life, low noise, convenient maintenance, disassembly and maintenance;

8. Modular guide rail frame, bending Angle is more accurate, bending steel bar finished quality is higher;

9. Equipment can Long-term processing of φ 36mm(No.11 in USA) (HRB500);

10. Single fixed, positive and reverse bending reinforcement diameter, bending R standard refer to the requirements of the United States;

11. maximum arc diameter (φ 304mm);

12. Bending speed 50-60° / sec, bending movement speed 0.5-1 m/s;

13. The shortest bending side size of double head is 1.8m for double head bending, and the shortest bending side size of single head is 600mm for signle head bending;

It is mainly used for highway, highway bridge, housing construction, railway and other engineering construction.
