Name: CSA/UL Certificate CNC Rebar Double Head Beder HB45
Brand: Chengdu Gute Machinery Works Co., Ltd.
SKU: HB45
Price: 115,000.00 USD
Availability: InStock

Brand Name:	GUTE
Model Number:	HB45
MOQ:	1set
Price:	100000-130000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CSA,UL,CE,ISO 9001:2000

Model:

HB45

Bending Diameter:

10-40mm

Rated Power:

45KW

Gas Source Wor:

0.8MPa

Maximum Bending Angle:

-120°~180°

Longest Stirrup:

10.8m

Minimum Margin Spacing:

750mm

Head Movement Speed:

0.5-1m/sec

L*W*H:

12m×2m×1.6m

Supply Ability:

200set/month

Highlight:

CNC Rebar Double Head Beder

Double Head Beder HB45

Product Description

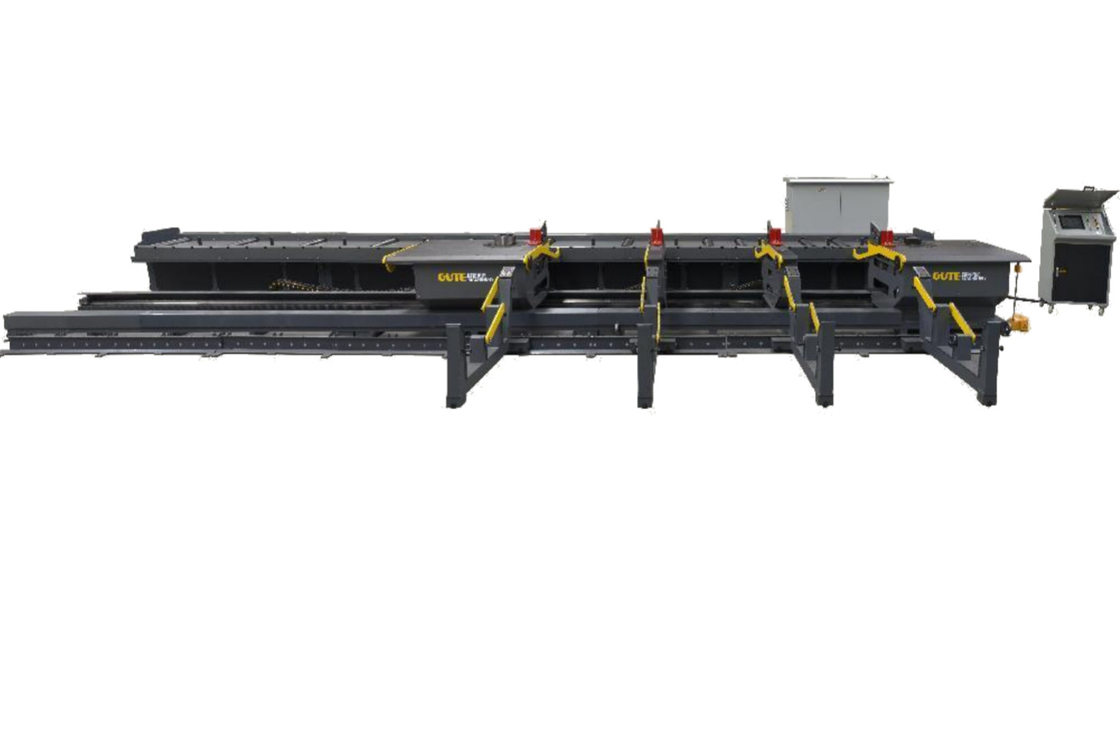

CSA/UL Certificate CNC Rebar Double Head Beder HB45 380V/440/220V

Overview

1. Complete sets of equipment has UL or CSA certificate;

2. The equipment adopts Siemens electrical components, control system, PLC, servo motor, touch screen, etc.;

3. The key pneumatic elements adopt the Fisesto (Germany) brand;

4. Key bearing, oil seal are SKF (Sweden), NSK (Japan) and other international well-known brands;

6. Special design for North America bar bending R and tensile ;

7. The equipment adopts disc tooth structure, long service life, low noise, convenient maintenance, disassembly and maintenance;

8. Modular guide rail frame, bending Angle is more accurate, bending steel bar finished quality is higher;

9. Equipment can Long-term processing of φ 36mm(No.11 in USA) (HRB500);

10. Single fixed, positive and reverse bending reinforcement diameter, bending R standard refer to the requirements of the United States;

11. maximum arc diameter (φ 304mm);

12. Bending speed 50-60° / sec, bending movement speed 0.5-1 m/s;

13. The shortest bending side size of double head is 1.8m for double head bending, and the shortest bending side size of single head is 600mm for signle head bending;

Scope of application

It is mainly used for highway, highway bridge, housing construction, railway and other engineering construction.

Device parameters

rated power	45KW
Air source working pressure	0.8MPa
Maximum bending angle	-120° to 180°
Maximum bending angle	12m
Minimum curved edge spacing	1700mm
Moving speed of machine head	0.5-1m/sec
Fastest bending speed	60°/sec
total weight	7.8t
Average power consumption	15KW/H
LWH	16m×4.5m×1.6m
Diameter	#3	#4	#5	#6	#7	#8	#9	#10	#11
Quantity	7	6	4	4	2	2	2	2	1
Movement Control	Servo
Bending Control	Servo
Power source	pneumatic

Equipment advantages

The forming wheel can be customized to bend complex rebar patterns.

Complete sets of equipment has UL or CSA certificate;The equipment adopts Siemens electrical components, control system, PLC, servo motor, touch screen, etc.

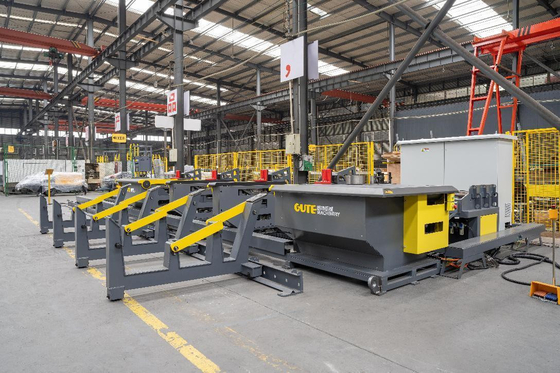

Site Layout

Finished product

CSA/UL Certificate CNC Rebar Double Head Beder HB45 5

Case

CSA/UL Certificate CNC Rebar Double Head Beder HB45 6

Our factory

CSA/UL Certificate CNC Rebar Double Head Beder HB45 7

CSA/UL Certificate CNC Rebar Double Head Beder HB45 8

Our service

CSA/UL Certificate CNC Rebar Double Head Beder HB45 10

Certification

CSA/UL Certificate CNC Rebar Double Head Beder HB45 11
