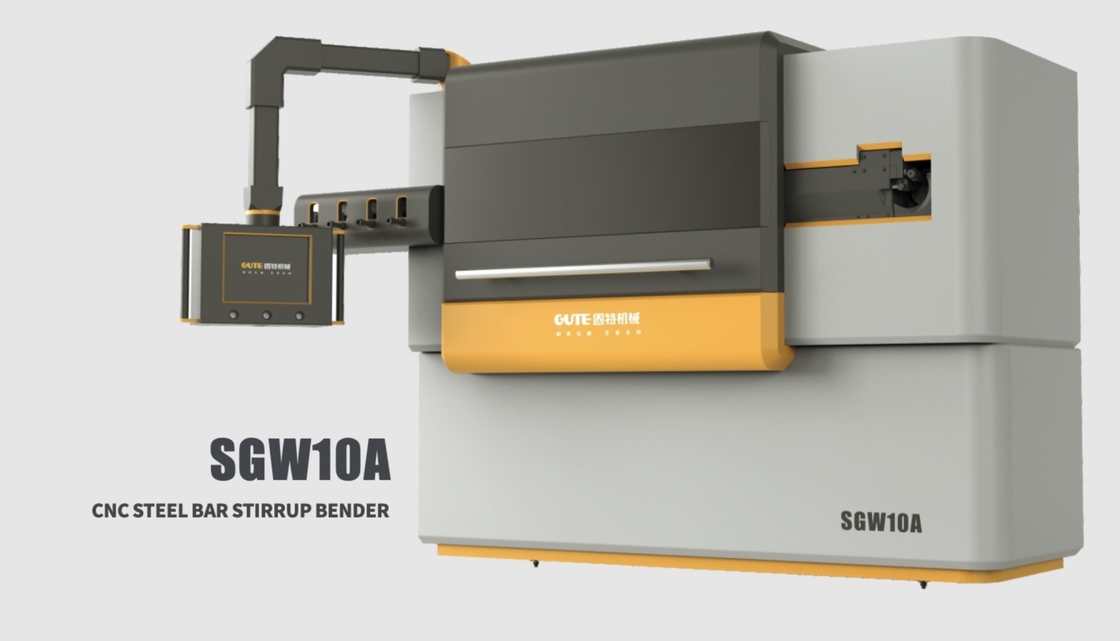

4-10mm Steel Wire CNC Stirrup Hook Bender Machine Rebar Bending Machine

Brand Name: GUTE
Model Number: SGW10A
MOQ: 1set
Price: 9000-11000USD/SET
Packaging Details: plywood case
Payment Terms: L/C, T/T, D/P, D/A
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO 9001:2000
SINGLE WIRE BENDING:
4-10 Mm
DOUBLE WIRE BENDING:
4-8mm
MAX. BENDING ANGLE:
180°
MAX. LENGTH OF STIRRUP SIDE:
700 Mm
MIN. LENGTH OF STIRRUP SIDE:
60 Mm
BENDING DIRECTION:
One-direction
TOTAL POWER:
12KW
AERAGE ELECTRIC CONSUMPTION:
3KW/H
L×W×H:
2510×810×1630 Mm
WEIGHT:
1.2T
Supply Ability:
200set/month
Highlight:

CNC Stirrup hook Bender Machine

,

Steel Wire Stirrup Hook Bender Machine

Product Description
4-10mm steel wire CNC Stirrup hook Bender Machine For Steel processing plant
01


Overview

This is a very cost-effective CNC steel bending machine, suitable for small steel processing plants to use. Do not need air compressor and oil, high efficiency, low maintenance costs. Can process a variety of graphics, hoop machine, circle, retractor and other reinforcement graphics.

02


Scope of application

Mainly used in the construction of housing construction, steel processing plant​

03


Device parameters

Single wire bending diameter 4–10mm
Double wire bending diameter 4–8mm
Processing material Steel coil
Maximum towing speed 75-100 m/min
Maximum towing speed 1200°/sec
Rib straightness error 0.02/m
Total power 12KW
Power consumption 3KW/H
Bending direction One-direction
Stirrup length accuracy ±1mm
Rib length accuracy ±5mm
Angle accuracy ±1°
Maximum bending angle ±180°
Maximum bending angle 700mm
Shortest stirrup side 60mm
Working temperature -5~40 ℃
Traction control method Servo
Bend control method Servo
Loopback control method Servo
Total Weight 1.2T
04


Equipment advantages

  • 1200-2400 stirrups production per for hour, 1200 stirrups for 8mm single-wire,2400 stirrups for double-wire.
  • 1 years free warranty service.

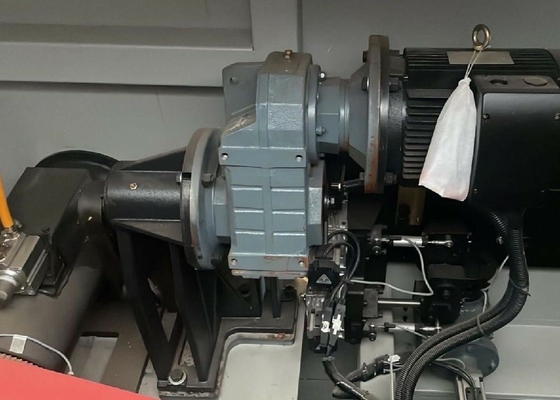

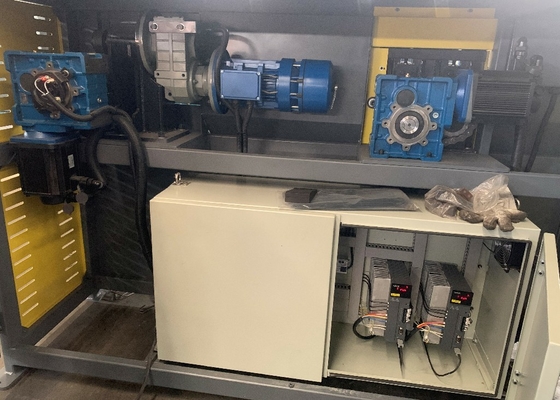

  • The electric components are of famous brands such as CHINT and MEAN WEL. The power of traction and bending is provided by servo motor, with high efficiency and accuracy Support multi - language interactive interface, simple operation.
  • Each transmission system adopts standard reducer transmission, with stable structure and high transmission efficiency.
  • Lightweight and compact body, more convenient and easy to transport and install.
  • The production system structure does not require air source and hydraulic pressure, it can be used immediately after plugging in, and the use cost is lower, convenient and fast.
  • Function:
  • This machine can process stirrup square, rectangular, circles, hooks, long straight bar and so on hundreds of shapes.
  • Process §4-8mm single wires and §4-6mm double wires for deformed steel coil.

.


4-10mm Steel Wire CNC Stirrup Hook Bender Machine Rebar Bending Machine 1

4-10mm Steel Wire CNC Stirrup Hook Bender Machine Rebar Bending Machine 2
4-10mm Steel Wire CNC Stirrup Hook Bender Machine Rebar Bending Machine 3

4-10mm Steel Wire CNC Stirrup Hook Bender Machine Rebar Bending Machine 4

4-10mm Steel Wire CNC Stirrup Hook Bender Machine Rebar Bending Machine 5

4-10mm Steel Wire CNC Stirrup Hook Bender Machine Rebar Bending Machine 6

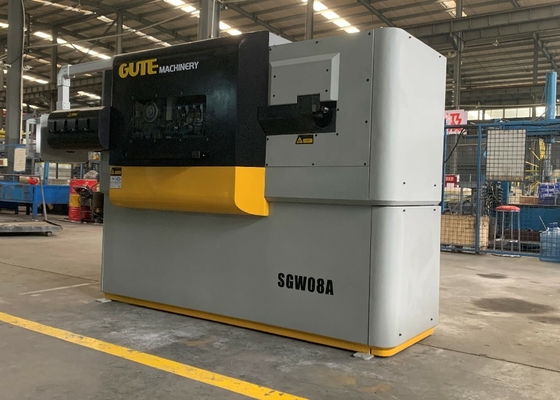

Our factory

4-10mm Steel Wire CNC Stirrup Hook Bender Machine Rebar Bending Machine 7

4-10mm Steel Wire CNC Stirrup Hook Bender Machine Rebar Bending Machine 8








Our service

4-10mm Steel Wire CNC Stirrup Hook Bender Machine Rebar Bending Machine 10










Certification

4-10mm Steel Wire CNC Stirrup Hook Bender Machine Rebar Bending Machine 11
