Name: Cutting Edge Width 500mm Automatic Rebar Shear Line Machine 100m/Min
Brand: Chengdu Gute Machinery Works Co., Ltd.
SKU: SGS150
Price: 56,500.00 USD
Availability: InStock

Brand Name:	GUTE
Model Number:	SGS150
MOQ:	1set
Price:	55000-58000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

Brand:

GUTE

Model:

SGS150

Cutting Edge Width:

500mm

Maximum Shear Length:

12m

Cutting Type:

Hydraulic

Max Cutting:

50mm

Supply Ability:

200set/month

Highlight:

Rebar Shear Line 500mm

shear line machine 100m/Min

100m/Min Automatic Rebar Shear Line

Product Description

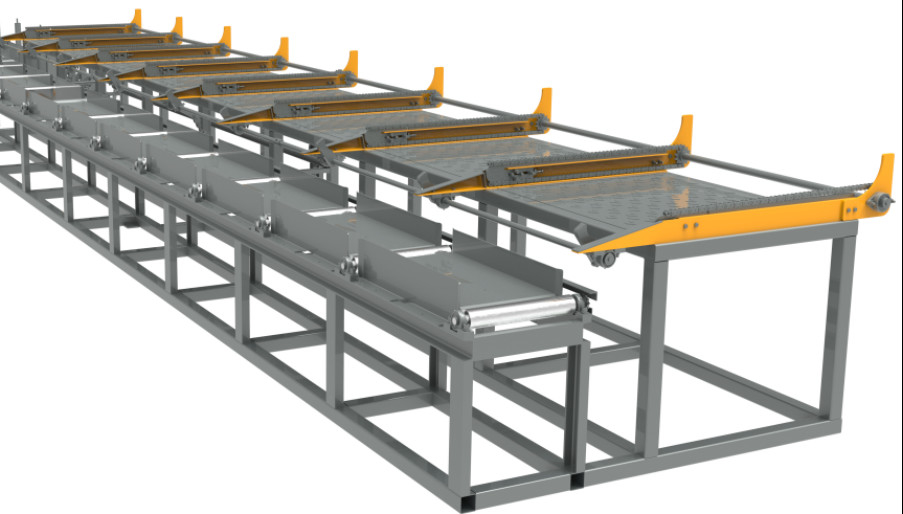

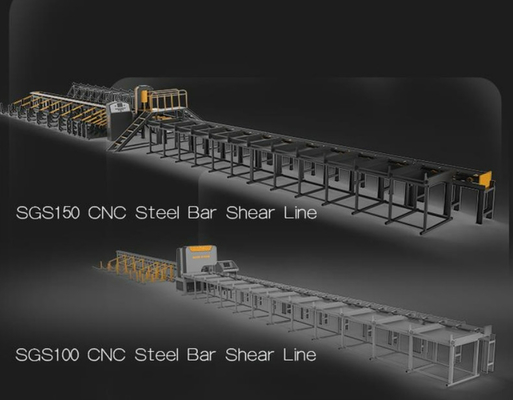

500mm Hydraulic Rebar CNC Automatic Cutting Machine Shearing Line Machine 图片1.png

The overall design of the feeding rack and the feeding rack has a more stable structure, the feeding position is fixed, and there is no displacement and deformation;
The feeding trough is increased on one side to prevent the steel bar from rolling out when feeding, which is safer;
The key bar under the transmission chain acts as a guide rail, guiding and reducing friction, and improving the service life of the chain;
There is a pre-feeding mechanism to make the two steel bars discharge in unison, increasing the service life of the chain; and it has a pre-feeding mechanism to make the two steel bars discharge continuously. Processing efficiency.

Cutting edge width	500mm
Shearing mode	Hydraulic shearing
Roller speed	0-100m/min adjustable
Maximum shear length	12m
Minimum shear length	1.4m
Shear Accuracy	±5mm
Shear frequency	≤12n/min
Silo Series	3
Rated power	42kw
Total weight	15t
Long x wide x high	30m×5m×3m
Reinforcement diameter	50	40	32	25	20	18	16	12
Bending quantity	1	2	6	15	20	22	25	40
Length Control Mode	Servo


Cutting Edge Width 500mm Automatic Rebar Shear Line Machine 100m/Min 2

Cutting Edge Width 500mm Automatic Rebar Shear Line Machine 100m/Min 3
