| CAGE DIAMETER: | 300mm-1500mm | MAX. CAGE LENGTH: | 12m(or Customized) |
|---|---|---|---|
| CAGE WEIGHT: | 5500KG | COIL BAR DIAMETER: | 5-14mm |
| MAIN FRAME BAR DIAMETER: | 12-40 Mm | HYDRAULIC PRESSURE: | 10 Mpa |
| RATED POWER: | 21KW | L*W*H: | 28000×3700×2500mm |
| TOTAL WEIGHT: | 15T | ||
| Highlight: | 21KW pile cage making machine,pile cage making machine CNC,21KW pile cage welding equipment |
||

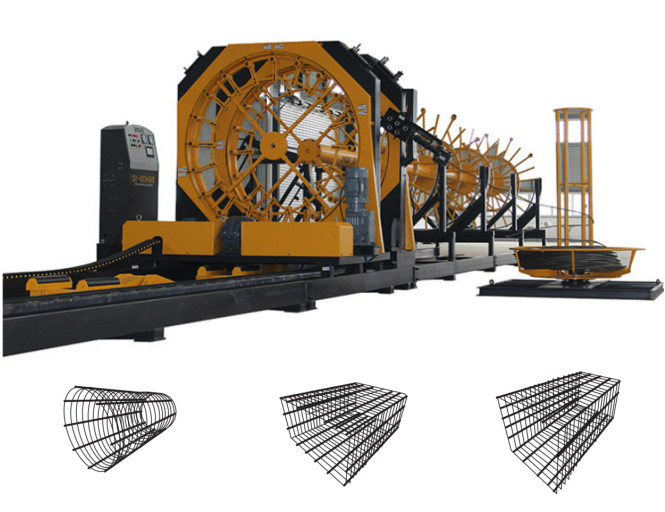

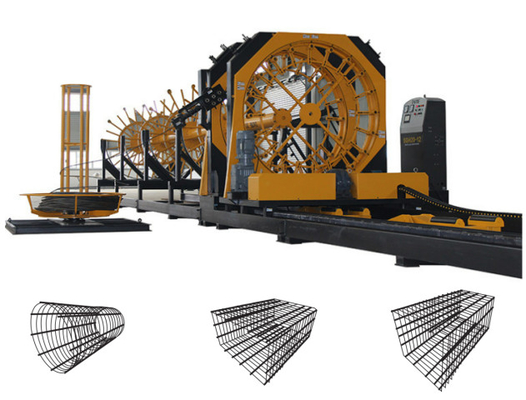

21KW CNC Pile Cage Welding Machine High Strength Anti Wear
Construction concrete Pile cage making machine/Rebar cage welding machine
Features:
1. Control system: PLC, touch screen, inverter.
2. Automatic wire feeding mechanism, the distance can be adjusted online, the error is small, and the molding quality is high.
3. The traction cage mechanism with variable frequency speed regulation has high operation accuracy.
4. It has more automatic hydraulic feed rollers to prevent the reinforcement cage from deforming due to its own weight.
5. Equipped with an automatic feeding device, it is easy to operate and improves the efficiency.
6. The template adopts the combination of template ring and conduit, which can quickly replace and modify the number of steel wires in the main cage.
7. The straightening system is made of high-strength alloy material, which has high strength, wear resistance and improves the life of the wear parts.
|
CNC PILE CAGE WELDING MACHINE(Automatic Welding) |
|
|
CAGE DIAMETER |
300mm-2000mm |
|
MAX. CAGE LENGTH |
12m(or customized) |
|
CAGE WEIGHT |
5500KG |
|
COIL BAR DIAMETER |
5-14mm |
|
MAIN FRAME BAR DIAMETER |
12-40 mm |
|
HYDRAULIC PRESSURE |
10 Mpa |
|
RATED POWER |
21KW |
|
L×W×H |
28000×8000×33000mm |
|
CERTIFICATION |
ISO 9001:2008 |
| Turntable rotation speed (r / min)Rotary speed of the turntable during | 0-4 |
| automatic welding (r / min)Number of guns blocked during automatic welding | 0-1 |
| Desoldering probability during | About once / 25 solder joints |
| automatic welding | about 10% |
Electrical components.
The turntable is controlled by a servo motor, which has high rotation precision, high start-stop precision and long service life.
Pneumatic components adopt Taiwan's famous brand Airtac, Schneider Electric components, etc.
Welding robot (optional)
The welding part is replaced by a robot, which has higher welding precision and avoids mis-soldering and de-soldering.
Save labor cost and increase production efficiency
Walking mechanism
Compared with sprocket and chain transmission, rack and pinion transmission has the advantages of high transmission accuracy, low noise, good stability, convenient maintenance and durability.
|
Parameters |
SGH15-12 |
SGH20-12 |
SGH22-12 |
|
Cage pile diameter |
Φ300-φ1500 full size adjustable |
Φ650-φ2000 full size adjustable |
Φ650-φ2200 full size adjustable |
|
Cage length |
3-12m |
3-12m |
3-12m |
|
Cage weight |
5500kg |
5500kg |
6000kg |
|
Coil bar diameter |
Φ5-Φ14mm |
Φ5-Φ14mm |
Φ5-Φ14mm |
|
Main frame bar diameter |
Φ12-Φ40mm |
Φ12-Φ40mm |
Φ12-Φ40mm |
|
Total weight |
15t |
14t |
15t |
|
Rated power |
21KW |
21KW |
21KW |
|
Spacing of winding bars |
0-300mm |
0-300mm |
0-300mm |
|
L*W*H |
28.5*3.7*2.5(M) |
28.5*4.7*3(M) |
28.5*5*3.6(M) |
|
Maximum walking speed |
2.8m/min |
2.8m/min |
2.8m/min |
|
Maximum rotation speed |
4r/min |
3.1r/min |
2.8r/min |
|
Feeding Device |
Chain Drive |
Chain Drive |
Chain Drive |
|
Pipe Material |
Process Heat Treatment Steel |
Process Heat Treatment Steel |
Process Heat Treatment Steel |
|
Welding equipment |
carbon dioxide shielded welding |
carbon dioxide shielded welding |
carbon dioxide shielded welding |
|
Welding method |
Manual/Auto |
Manual/Auto |
Manual/Auto |
Certificate
