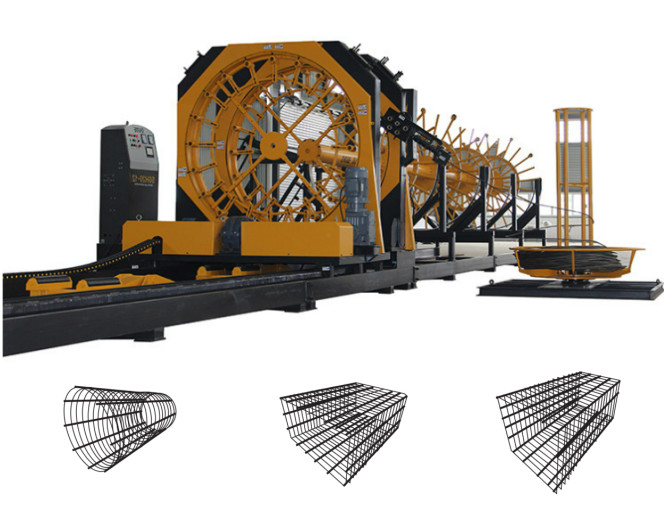

Construction concrete Pile cage making machine/Rebar cage welding machine
Features:
1. Control system: PLC, touch screen, frequency converter.
2. Automatic wire feeding mechanism, the spacing can be adjusted online, the error is small, and the forming quality is high.
3. The traction cage mechanism with variable frequency speed regulation has high operation accuracy.
4. With more automatic hydraulic feed rollers to prevent the steel cage from deforming due to its own weight.
5. Equipped with automatic feeding device, easy to operate and improve efficiency.
6. The formwork adopts the combination of formwork ring and conduit, which can quickly replace and modify the number of steel wires in the main cage.
7. The straightening system is made of high-strength alloy material, which has high strength, wear resistance and improves the life of worn parts.
|
CNC PILE CAGE WELDING MACHINE(Automatic Welding) |
|
|
CAGE DIAMETER |
300mm-2000mm |
|
MAX. CAGE LENGTH |
12m(or customized) |
|
CAGE WEIGHT |
5500KG |
|
COIL BAR DIAMETER |
5-14mm |
|
MAIN FRAME BAR DIAMETER |
12-40 mm |
|
HYDRAULIC PRESSURE |
10 Mpa |
|
RATED POWER |
21KW |
|
L×W×H |
28000×8000×33000mm |
|
CERTIFICATION |
ISO 9001:2008 |
| Turntable rotation speed (r / min)Rotary speed of the turntable during | 0-4 |
| automatic welding (r / min)Number of guns blocked during automatic welding | 0-1 |
| Desoldering probability during | About once / 25 solder joints |
| automatic welding | about 10% |
Electrical parts .
The rotating disc is controlled by servo motor,which has higher rotating precision,more precisestart-stop and longer service life.
Pneumatic components adopt famous brand Airtac of Taiwan , Schneider Electric Components, etc.
Welding robot(Optional)
The welding part is replaced by a robot,which has higher weldingaccuracy and avoids false welding and desoldering.
Save labor costs and improve production efficiency
Walking mechanism
Compared with sprocket and chain transmission,rack and geartransmission has the advantages of high transmission accuracy, low noise,good stability, convenient maintenance and durability.
|
Parameters |
SGH15-12 |
SGH20-12 |
SGH22-12 |
|
Cage pile diameter |
Φ300-φ1500 full size adjustable |
Φ650-φ2000 full size adjustable |
Φ650-φ2200 full size adjustable |
|
Cage length |
3-12m |
3-12m |
3-12m |
|
Cage weight |
5500kg |
5500kg |
6000kg |
|
Coil bar diameter |
Φ5-Φ14mm |
Φ5-Φ14mm |
Φ5-Φ14mm |
|
Main frame bar diameter |
Φ12-Φ40mm |
Φ12-Φ40mm |
Φ12-Φ40mm |
|
Total weight |
15t |
14t |
15t |
|
Rated power |
21KW |
21KW |
21KW |
|
Spacing of winding bars |
0-300mm |
0-300mm |
0-300mm |
|
L*W*H |
28.5*3.7*2.5(M) |
28.5*4.7*3(M) |
28.5*5*3.6(M) |
|
Maximum walking speed |
2.8m/min |
2.8m/min |
2.8m/min |
|
Maximum rotation speed |
4r/min |
3.1r/min |
2.8r/min |
|
Feeding Device |
Chain Drive |
Chain Drive |
Chain Drive |
|
Pipe Material |
Process Heat Treatment Steel |
Process Heat Treatment Steel |
Process Heat Treatment Steel |
|
Welding equipment |
carbon dioxide shielded welding |
carbon dioxide shielded welding |
carbon dioxide shielded welding |
|
Welding method |
Manual/Auto |
Manual/Auto |
Manual/Auto |
Certificate
