Product Details:
Payment & Shipping Terms:
|
| SINGLE WIRE BENDING: | 5-13 Mm | DOUBLE WIRE BENDING: | 5-10 Mm |
|---|---|---|---|
| MAX. BENDING ANGLE: | 180° | MAX. LENGTH OF STIRRUP SIDE: | 1000 Mm |
| MIN. LENGTH OF STIRRUP SIDE: | 90 Mm | BENDING DIRECTION: | Bi-direction |
| TOTAL POWER: | 48KW | AERAGE ELECTRIC CONSUMPTION: | 7KW/H |
| L×W×H: | 3800×1000×1900 Mm | WEIGHT: | 3.7T |
| Highlight: | cnc stirrup bending machine,Bidirectional CNC Stirrup Bender,CNC rebar stirrup bender |
||

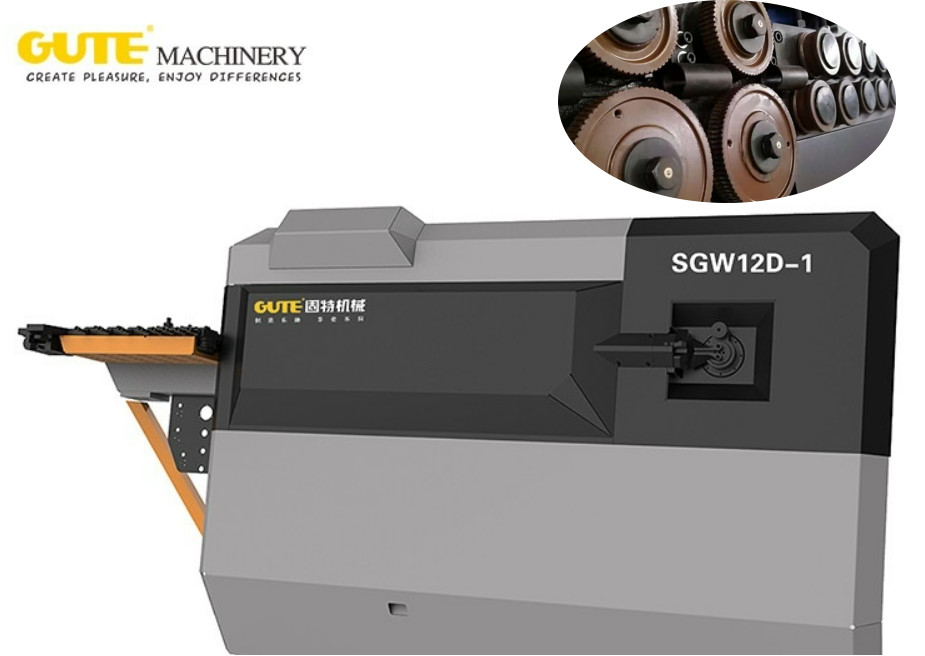

Overview Gute automatic CNC bending machineCNC rebar stirrup bending machine can be used for one-time forming of stirrups, hooks and special-shaped parts. It can automatically complete the functions of straightening, sizing, bending, cutting and counting of steel bars and round steel. The equipment adopts numerical control system, and controls the servo system through touch screen and PLC. The finished stirrup has high processing precision, stable and reliable quality, and strong graphic storage capacity. It is easy to operate and easy to set up. It can save a lot of labor and waste. Improving processing efficiency is an indispensable part of modern building construction, and it is also an intelligent device that meets international standards. Scope of application Mainly used in the construction of housing construction, highways, roads and bridges, subways and other projects Device parameters Equipment advantages 1, The raw material pre-straightening mechanism is composed of 14 straightening wheels. The spacing of each straightening wheel can be adjusted and controlled by bolts. The straightening wheel has double grooves for double wire straightening. At the same time, the straightening wheel is made of forged alloy tool steel, which is wear-resistant and impact-resistant. 2, Equipped with 19KW high-power servo motor to ensure smooth operation of traction. The square head transition connection is adopted, and the strength is 12 times that of the traditional flat key connection. The traction pulley is made of forged alloy tool steel, which is wear-resistant and impact-resistant. 3, The split-type thick blade design is fixed on the blade seat with bolts, and the thickness reaches 40mm. The replacement is quick and the maintenance is convenient, which greatly reduces the maintenance cost of the equipment. 4, The touch screen console can store hundreds of graphics and is easy to operate. Our factory Our service Certification
Single wire bending diameter
5–13mm
Double wire bending diameter
5–10mm
Processing material
Steel coil
Maximum towing speed
75-100 m/min
Maximum towing speed
1050°/sec
Rib straightness error
0.02/m
Total power
48KW
Power consumption
7KW/H
Bending direction
Bi-direction
Stirrup length accuracy
±1mm
Rib length accuracy
±5mm
Angle accuracy
±1°
Maximum bending angle
±180°
Maximum bending angle
1000mm
Shortest stirrup side
90mm
Working temperature
-5~40 ℃
Traction control method
Servo
Bend control method
Servo
Loopback control method
Servo
Total Weight
3.7T
