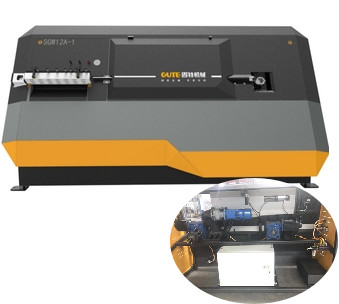

Name: PLC Steel Bar CNC Stirrup Bending Machine 1600pcs/H Single Direction
Brand: Chengdu Gute Machinery Works Co., Ltd.
SKU: SGW12A-1
Price: 17,000.00 USD
Availability: InStock

Brand Name:	GUTE
Model Number:	SGW12A-1
MOQ:	1set
Price:	15000-19000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

Name:

CNC Steel Bar Stirrup Bending Machine

WEIGHT:

1.5T

SINGLE WIRE BENDING:

5-12mm

DOUBLE WIRE BENDING:

5-8 Mm

MAX. LENGTH OF STIRRUP SIDE:

900 Mm

MIN. LENGTH OF STIRRUP SIDE:

140 Mm

BENDING DIRECTION:

Single-direction

L×W×H:

3600×1460×1950 Mm

Supply Ability:

200set/month

Highlight:

PLC CNC Stirrup Bending Machine

1600pcs/H CNC Stirrup Bending Machine

cnc bar bending PLC

Product Description

Economical 12mm Cnc Stirrup Bending Machine Steel Bar Bender

Overview

1. The key parts adopt IKO bearings imported from Japan to ensure the service life.
2.PLC and servo motor control.
3. 1600 stirrups per hour, each batch can produce up to 8 tons.
4. Includes 2 unit payments.

Device parameters

Single wire bending diameter	5–12mm
Rebar double wire bending diameter	5–8mm
Maximum towing speed	100 m/min
Maximum bending speed	1050°/sec
Rib straightness error	0.02/1m
Stirrup length accuracy	±1mm
Rib length accuracy	±5mm
Maximum bending angle	±180°
Longest stirrup side	900mm
Shortest stirrup side	140mm
Total Weight	1.5T

Equipment advantages

PLC Steel Bar CNC Stirrup Bending Machine 1600pcs/H Single Direction 0

Straightening wheels are made of forged alloy tool steel, wear-resistant and impact-resistant.
Preset wheel plate: The overall use of 30mm thick steel plate, high strength, strong impact load, very durable.

PLC Steel Bar CNC Stirrup Bending Machine 1600pcs/H Single Direction 1

Equipped with a 16KW high-power servo motor to ensure the smooth operation of the traction.

PLC Steel Bar CNC Stirrup Bending Machine 1600pcs/H Single Direction 2

Using multi-piece blades, compared with ordinary single-piece blades, it can ensure that the service life is doubled.

PLC Steel Bar CNC Stirrup Bending Machine 1600pcs/H Single Direction 3

The touch screen console can store hundreds of graphs and is easy to operate.

Finished products

PLC Steel Bar CNC Stirrup Bending Machine 1600pcs/H Single Direction 4

Our factory

PLC Steel Bar CNC Stirrup Bending Machine 1600pcs/H Single Direction 5

PLC Steel Bar CNC Stirrup Bending Machine 1600pcs/H Single Direction 6

Our service

PLC Steel Bar CNC Stirrup Bending Machine 1600pcs/H Single Direction 8

Certification

PLC Steel Bar CNC Stirrup Bending Machine 1600pcs/H Single Direction 9
