| Model: | LSW40 | Rated Power: | 20KW |
|---|---|---|---|
| Gas Source Wor: | 0.8MPa | Maximum Bending Angle: | -120°~180° |
| Longest Stirrup: | 10.8m | Minimum Margin Spacing: | 520mm |
| L*W*H: | 12m×2m×1.7m | Max Bending: | 40mm |
| Highlight: | Hoop CNC Rebar Bending Machine,5KW/H rebar cutter and bender machine,Servo Control CNC Rebar Bending Machine |
||

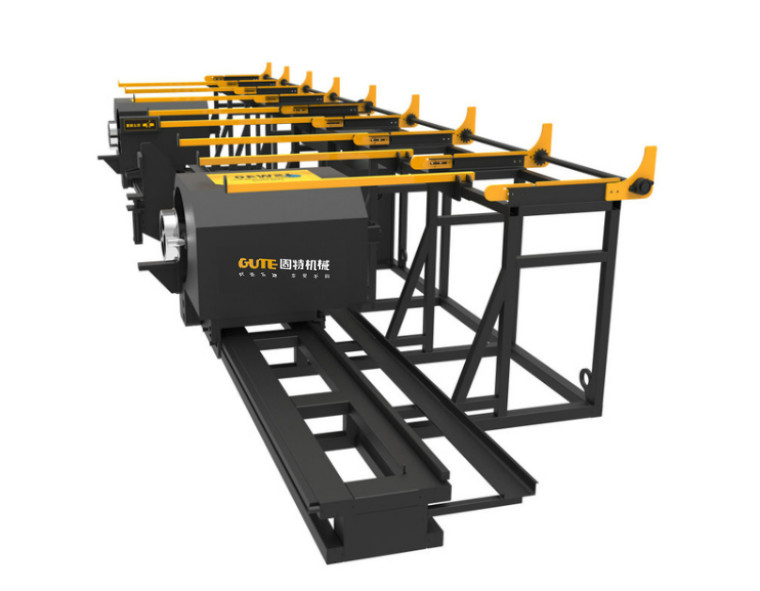

Overview LSW40 is a device designed for large steel bars. In addition to the features of the curved center, it is equipped with different pile heads and pile sockets, which are easy to disassemble and assemble. It can complete the bending of the large R arc of the steel bar at one time. The arc diameter can be adjusted arbitrarily within the allowable range; the equipment is fully functional. The equipment adopts PLC and servo drive control system to ensure the control performance and control accuracy of the whole machine, realize large-scale and efficient production, and meet the needs of construction. Device parameters Equipment advantages Case Our factory Our service Certification
rated power
20KW
Air source working pressure
0.8MPa
Maximum bending angle
-120°至180°
Maximum bending
10.8m
Minimum curved edge spacing
520mm
Moving speed of machine head
0.5-1m/sec
Fastest bending speed
70°/sec
total weight
4.9t
Average power consumption
5KW/H
L*W*H
12m×2m×1.7m
Diameter
10
12
14
16
20
25
28
36
40
Quantity
8
6
5
5
3
2
2
1
1
±≤90°
Movement Control
Servo
Bending Control
Servo
Power source
pneumatic
