Automatic Stirrup Bending Machine

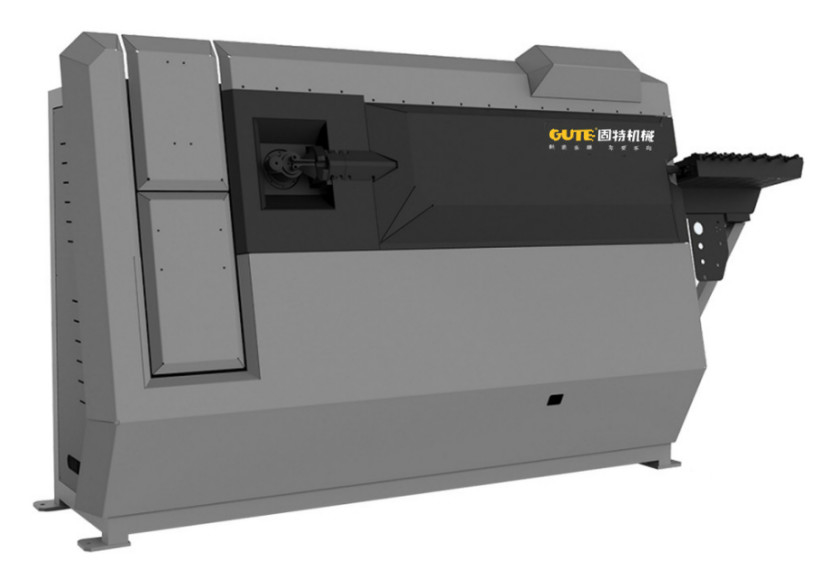

OEM Automatic Rebar Stirrup Bending Machine 5 To 10mm Double Wire Bending

All Category

Automatic Stirrup Bending Machine

Automatic Rebar Bending Machine

Rebar Straightening And Cutting Machine

Mr. Jurrivh

sales5@cdgute.com

008618349380338

Contact Now

OEM Automatic Rebar Stirrup Bending Machine 5 To 10mm Double Wire Bending

Brand Name:	GUTE
Model Number:	SGW12D-3D
MOQ:	1set
Price:	40000-50000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

MODEL:

SGW12D-3D

SINGLE WIRE BENDING:

5-12mm

DOUBLE WIRE BENDING:

5-10 Mm

MAX. LENGTH OF STIRRUP SIDE:

900 Mm

MIN. LENGTH OF STIRRUP SIDE:

140 Mm

BENDING DIRECTION:

Single-direction

WEIGHT:

TOTAL POWER:

Supply Ability:

200set/month

Highlight:

OEM automatic rebar stirrup bending machine

5mm rebar stirrup bending machine

10mm stirrup rebar bending machine

Product Description

3D CNC Steel Bar Stirrup Bending Machine 12mm Wire Bar Bender

Overview

This machine can process hundreds of shapes of reinforcement, such as three-dimensional shape, horseshoe shape, stirrup shape, round shape, hook shape H-shaped steel, long straight bar, etc.
Machining § 5-13mm single wire for deformed steel coil.
1600 stirrups are produced per hour, and the output of each batch can reach 8 tons, which is very efficient.
One year free warranty service.
The electrical components are of Schneider and other famous brands, and the power is provided by the servo motor, with high efficiency, high precision, support for multilingual interface, and simple operation.
Draw the steel coil into a straight line and bend it with cutting.
Sheet metal panel and observation door adopt standard 5mm, with long service life and more wear resistance.
Key components are IKO bearings imported from Japan, with long service life.
The service life of alloy steel straightening wheel is longer.

Finished products

OEM Automatic Rebar Stirrup Bending Machine 5 To 10mm Double Wire Bending 0

Device parameters

Single wire bending diameter	5–12mm
Rebar double wire bending diameter	5–10mm
Maximum bending speed	1050°/sec
Rib straightness error	0.02/1m
Total power	33KW
Power consumption	5KW/H
Stirrup length accuracy	±1mm
Rib length accuracy	±5mm
Longest stirrup side	900mm
Shortest stirrup side	140mm
Total Weight	3.5T

Equipment advantages

OEM Automatic Rebar Stirrup Bending Machine 5 To 10mm Double Wire Bending 1

Equipped with 22KW high-power servo motor to ensure the smooth operation of tractio.

OEM Automatic Rebar Stirrup Bending Machine 5 To 10mm Double Wire Bending 2

Using multi-piece blades, compared with ordinary single-piece blades, it can ensure double the lifespan

OEM Automatic Rebar Stirrup Bending Machine 5 To 10mm Double Wire Bending 3

The touch screen console can store 500 hundreds of graphics and is easy to operate.

Our factory

OEM Automatic Rebar Stirrup Bending Machine 5 To 10mm Double Wire Bending 4

OEM Automatic Rebar Stirrup Bending Machine 5 To 10mm Double Wire Bending 5

Our service

OEM Automatic Rebar Stirrup Bending Machine 5 To 10mm Double Wire Bending 7

Certification

OEM Automatic Rebar Stirrup Bending Machine 5 To 10mm Double Wire Bending 8
