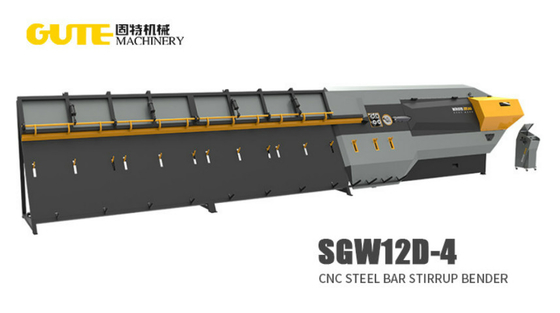

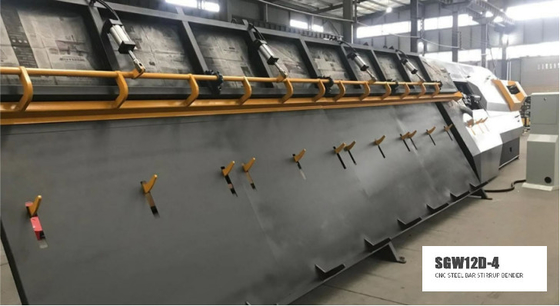

13mm Full Power CNC Automatic Stirrup Bending Machine For Highways

Brand Name: GUTE
Model Number: SGW12D-4
MOQ: 1set
Price: 28000-36000USD/SET
Packaging Details: plywood case
Payment Terms: L/C, T/T, D/P, D/A
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO 9001:2000
Features:
Fully Automatic\CNC Control
MODEL:
SGW12D-4
OPERATION:
Automatic Wire Feeding System(CNC)
SINGLE WIRE BENDING:
5-13 Mm
DOUBLE WIRE BENDING:
5-10 Mm
MAX. LENGTH OF STIRRUP SIDE:
1000 Mm
MIN. LENGTH OF STIRRUP SIDE:
90 Mm
BENDING DIRECTION:
Bi-direction
LENGTH ACCURACY:
±1mm
ANGLE ACCURACY:
±1°
L×W×H:
11700×1900×2110 Mm
WEIGHT:
5.7T
MAX. LENGTH OF HOOL SIDE:
6m
Supply Ability:
200set/month
Highlight:

13mm cnc stirrup bender

,

Highways Automatic Stirrup Bending Machine

,

Highways cnc rebar stirrup bending machine

Product Description
13mm Full Power Cnc Steel Bar Stirrup Bending Machine With Engineer Service
01


Overview

SGW12D-4 Gute fully automatic numerical control steel bar hoop bending machine can automatically complete the straightening, sizing, bending, forming and cutting of steel bars. It can bend in two directions and two lines, and has a very comprehensive and efficient processing capacity. At the same time, the material return mechanism and the material rack can complete the production of the hook rib and the plate rib, realizing multiple uses of one machine. The equipment adopts numerical control system, equipped with touch screen and PLC control system. Intelligent devices that meet national standards.
The fully automatic numerical control steel bar hoop bending machine is easy to operate and install, which can save a lot of labor and improve the working efficiency.



02


Scope of application

Mainly used in the construction of housing construction, highways, roads and bridges, subways and other projects

03


Device parameters

Single wire bending diameter 5–13mm
Rebar double wire bending diameter 5–10mm
Processing material Steel Coil
Maximum towing speed

100 m/min
Maximum bending speed

1050°/sec
Rib straightness error 0.02/1m
Total power 48KW
Power consumption 7KW/H
Stirrup length accuracy ±1mm
Rib length accuracy ±5mm
Angle accuracy ±1°
Maximum bending angle ±180°
Longest stirrup side 1000mm
Shortest stirrup side 90mm
The longest length of the rib 7m
Working temperature -5~40 ℃
Traction control method Servo
Bend control method Servo
Loopback control method Servo
Total Weight 5.7T
04


Equipment advantages

13mm Full Power CNC Automatic Stirrup Bending Machine For Highways 0

  • The pre-traction structure adds a feeding motor to make feeding easier

13mm Full Power CNC Automatic Stirrup Bending Machine For Highways 1



  • Straightening wheel for forging alloy tool steel manufacturing, wear resistance, impact resistance.
  • Preset wheel plate: the overall use of 30mm thick steel plate, high strength, strong impact load, very durable.
  • Each wheel has a power system for better straightening

13mm Full Power CNC Automatic Stirrup Bending Machine For Highways 2



  • The adoption of multi-split type blade which ensures a double lifetime co-mpared with normal one piece blade



13mm Full Power CNC Automatic Stirrup Bending Machine For Highways 3

  • The touch screen console can store hundreds of graphics and is easy to operate.







Our factory

13mm Full Power CNC Automatic Stirrup Bending Machine For Highways 4

13mm Full Power CNC Automatic Stirrup Bending Machine For Highways 5








Our service

13mm Full Power CNC Automatic Stirrup Bending Machine For Highways 7










Certification

13mm Full Power CNC Automatic Stirrup Bending Machine For Highways 8
