Automatic Stirrup Bending Machine
>
100m/Min Automatic Stirrup Bending Machines For Steel Coil

100m/Min Automatic Stirrup Bending Machines For Steel Coil

Brand Name: GUTE
Model Number: SGW12D-2
MOQ: 1set
Price: 22000-26000USD/SET
Packaging Details: plywood case
Payment Terms: L/C, T/T, D/P, D/A
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO 9001:2000
Features:
High Speed,high Efficiency
SINGLE WIRE BENDING:
5-12 Mm
DOUBLE WIRE BENDING:
5-8 Mm
MAX. LENGTH OF STIRRUP SIDE:
90cm
MIN. LENGTH OF STIRRUP SIDE:
90cm
BENDING DIRECTION:
Bi-direction
TRACTION SERVICE MOTOR POWER:
18KW
BENDING SERVICE MOTOR POWER:
7.5KW
CUTTING MOTOR POWER:
4 KW
TOTAL POWER:
31KW
AERAGE ELECTRIC CONSUMPTION:
5 KW/H
LENGTH ACCURACY:
±1mm
ANGLE ACCURACY:
±1°
Supply Ability:
200set/month
Highlight:

100m/Min Automatic Stirrup Bending Machine

,

Steel Coil automatic stirrup bending machines

,

automatic stirrup bender 100m/Min

Product Description
12mm Steel Bar Cnc Stirrup Bending Machine Coil Bar Hook Bender For Constraction
01


Overview

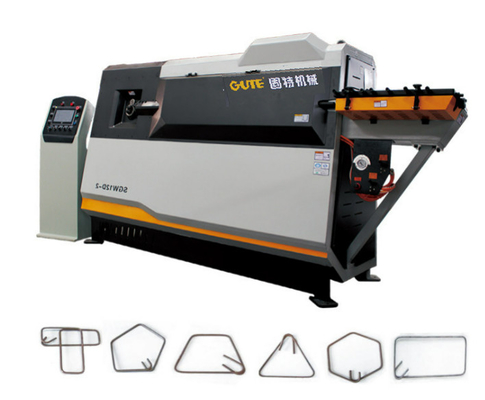

CNC hoop bending machine can be used for one-time forming of stirrups, hooks, and special-shaped parts. It can automatically complete the straightening, sizing, bending, cutting and counting functions of rebar and round steel. The equipment uses a numerical control system, and controls the servo system through a touch screen and PLC. The finished stirrup has high processing accuracy, stable and reliable quality, and has strong graphic storage capabilities. It can save a lot of labor and waste. Improving processing efficiency is an indispensable part of modern construction buildings, and it is also an intelligent equipment that meets national standards.

02


Scope of application

Mainly used in the construction of housing construction, highways, roads and bridges, subways and other projects.

03



Device parameters



Single wire bending diameter 5–12mm
Double wire bending diameter 5–8mm
Processing material Steel coil
Maximum towing speed 75-100 m/min
Maximum towing speed 1050°/sec
Rib straightness error 0.02/m
Total power 31KW
Power consumption 5KW/H
Bending direction Bi-direction
Stirrup length accuracy ±1mm
Rib length accuracy ±5mm
Angle accuracy ±1°
Maximum bending angle ±180°
Maximum bending angle 900mm
Shortest stirrup side 90mm
Working temperature -5~40 ℃
Traction control method Servo
Bend control method Servo
Loopback control method Servo
Total Weight 3.3T
04


Equipment advantages

100m/Min Automatic Stirrup Bending Machines For Steel Coil 0

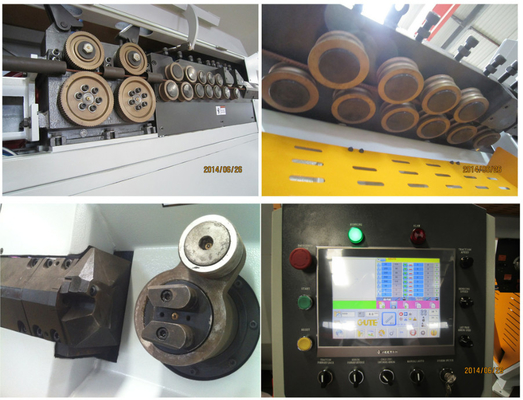

The raw material pre-alignment mechanism consists of 14 straightening wheels. The spacing of each straightening wheel can be adjusted and controlled by bolts. The straightening wheel has double grooves for double wire straightening. At the same time, the straightening wheel is made of forged alloy tool steel, which is wear-resistant and impact-resistant.



100m/Min Automatic Stirrup Bending Machines For Steel Coil 1

The square head transition connection is adopted, and the strength is 12 times that of the traditional flat key connection. The traction pulley is made of forged alloy tool steel, which is wear-resistant and impact-resistant.


100m/Min Automatic Stirrup Bending Machines For Steel Coil 2

The split-type thick blade design is fixed on the blade seat with bolts, and the thickness reaches 40mm. It is quickly replaced, easy to maintain, and greatly reduces the maintenance cost of the equipment.



100m/Min Automatic Stirrup Bending Machines For Steel Coil 3

The touch screen console can store hundreds of graphics and is easy to operate.








Our factory

100m/Min Automatic Stirrup Bending Machines For Steel Coil 4

100m/Min Automatic Stirrup Bending Machines For Steel Coil 5








Our service

100m/Min Automatic Stirrup Bending Machines For Steel Coil 7










Certification

100m/Min Automatic Stirrup Bending Machines For Steel Coil 8
