Truss Girder Welding Machine
>
12m Steel Automatic Rebar Truss Resistance Welder Truss Girder Welding Line Siemens

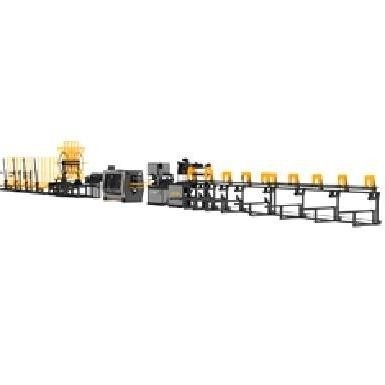

12m Steel Automatic Rebar Truss Resistance Welder Truss Girder Welding Line Siemens

Brand Name: GUTE
Model Number: GHZ300
MOQ: 1set
Price: 150000-200000USD/SET
Packaging Details: plywood case
Payment Terms: L/C, T/T, D/P, D/A
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO 9001:2000
Features:
High Speed\HIgh Strength
Keywords:
Siemens Control Autom Truss Girder Welding Machine
Brand:
GUTE
Finished Product Height:
Straight Foot 70-300mm Folded Foot 70-250mm
Peak Spacing:
190-210mm (adjustable)
Diameter Of Upper And Lower Chord Bars:
6-12mm
Wave Rib:
4.5-8mm (round Steel)
Length Of Finished Truss:
2m-12m
Number Of Pay-off Racks:
5
Power Supply:
380V-50HZ-3P
Supply Ability:
50set/month
Highlight:

12m Steel truss welding machine

,

Automatic Rebar Truss Resistance Welder

,

truss girder welding line Siemens

Product Description
12m Automatic Steel Bar Truss Resistance Welder Truss Welding Machine
01


Overview

  1. The distance between the wave ridge and the wave crest of the autom truss girder welding machine is 190mm to 210mm, and the accuracy can be adjusted to 1mm;
  2. Equipped with three groups of anti torsion + automatic forming function to ensure the forming effect of truss;
  3. Siemens PLC control, good stability;
  4. The power adopts 16kw servo motor, with high precision and power;
  5. The all steel parts of the angle steel mechanism are assembled by welding, and the wear-resistant parts are made of replaceable die steel, which has a longer service life;
  6. IKO bearings imported from Japan are used in key parts to ensure service life;
  7. The adjustable pay off frame with brake makes the steel bar feed more stable;
02


Finished products

12m Steel Automatic Rebar Truss Resistance Welder Truss Girder Welding Line Siemens 0





03


Device parameters

Name Parameter
Rated power of upper suspension bar welding 100KWA (intermittent work)
Rated welding power of lower suspension bar 63KWA*2 (intermittent work)
Shearing motor 7.5KW*2
Traction motor 16KW (servo)
Pre-adjusted traction mode frequency conversion
Power phase number Three-phase four-wire
power supply 380V 50HZ
Air pressure 0.6-0.8 Mpa
Finished product height Straight foot 70-300mm Folded foot 70-250mm
Peak spacing 190-210mm (adjustable)
Diameter of upper and lower chord bars 6-12mm
Wave rib 4.5-8mm (round steel)
Maximum welding speed 12m/min≤The actual production speed is determined by the truss specifications
Length of finished truss 2m-12m
Number of pay-off racks 5
Bottom claw expansion method pneumatic
Cutting method Mechanical shear
way to control PLC+touch screen
PLC Siemens



04


Equipment advantages



12m Steel Automatic Rebar Truss Resistance Welder Truss Girder Welding Line Siemens 1






12m Steel Automatic Rebar Truss Resistance Welder Truss Girder Welding Line Siemens 2

Mechanical shearing avoids the use cost of hydraulic system maintenance and hydraulic oil replacement






12m Steel Automatic Rebar Truss Resistance Welder Truss Girder Welding Line Siemens 3

The height of the truss is 70-300 infinitely adjustable, and the application range is wider








Our factory

12m Steel Automatic Rebar Truss Resistance Welder Truss Girder Welding Line Siemens 4

12m Steel Automatic Rebar Truss Resistance Welder Truss Girder Welding Line Siemens 5








Our service

12m Steel Automatic Rebar Truss Resistance Welder Truss Girder Welding Line Siemens 7










Certification

12m Steel Automatic Rebar Truss Resistance Welder Truss Girder Welding Line Siemens 8
