Product Details:
Payment & Shipping Terms:
|

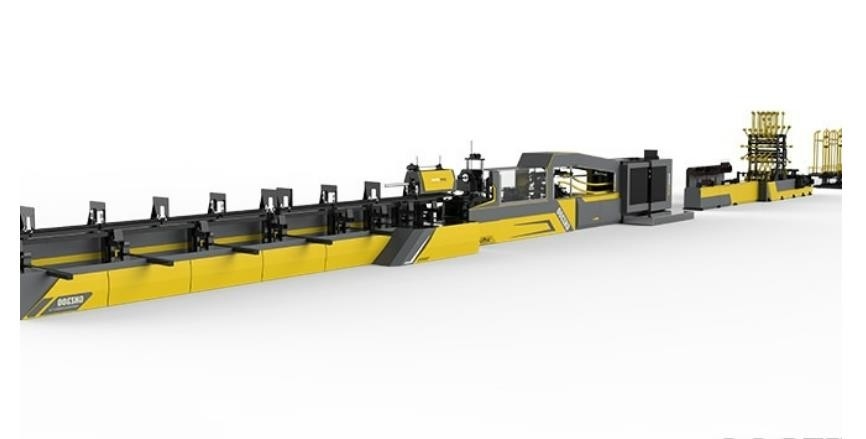

| Product Name: | GUTE Automatic Steel Bar Truss Girder Welding Machine | Finished Product Height: | Straight Foot 70-300mm Folded Foot 70-250mm |
|---|---|---|---|
| Peak Spacing: | 190-210mm (adjustable) | Diameter Of Upper And Lower Chord Bars: | Dia 0.6-1.2cm |
| Wave Rib: | 4.5-8mm (round Steel) | Length Of Finished Truss: | 2m-12m |
| Number Of Pay-off Racks: | 5 | Power Supply: | 380V-50HZ-3P |
| Voltage: | 380V/420V/440V AC | ||
| Highlight: | 300mm Truss Girder Welding Machine,50HZ auto Steel Bar Truss Welding Machine,Truss Girder Welding line ISO9001 |
||
Overview Finished products Device parameters Equipment advantages Mechanical shearing avoids the use cost of hydraulic system maintenance and hydraulic oil replacement The height of the truss is 70-300 infinitely adjustable, and the application range is wider Our factory Our service Certification
2. Three sets of anti-torsion + automatic forming to ensure the forming effect of the truss; the automatic stacking function of the receiving frame is more practical;
3. Each function is modularized, which is convenient for maintenance and transportation;
4. PLC adopts Siemens, with good stability;
5. The power adopts 16KW servo motor, with high precision and high power;
6. All the steel parts of the angle mechanism are assembled by welding, and the wear-resistant parts are made of replaceable die steel, which has a longer service life;
7. The key parts adopt lKO bearings imported from Japan to ensure the service life; the adjustable pay-off frame with brakes makes the feeding of steel bars more stable.
Name
Parameter
Rated power of upper suspension bar welding
100KWA (intermittent work)
Rated welding power of lower suspension bar
63KWA*2 (intermittent work)
Shearing motor
7.5KW*2
Traction motor
16KW (servo)
Pre-adjusted traction mode
frequency conversion
Power phase number
Three-phase four-wire
power supply
380V 50HZ
Air pressure
0.6-0.8 Mpa
Finished product height
Straight foot 70-300mm Folded foot 70-250mm
Peak spacing
190-210mm (adjustable)
Diameter of upper and lower chord bars
6-12mm
Wave rib
4.5-8mm (round steel)
Maximum welding speed
12m/min≤The actual production speed is determined by the truss specifications
Length of finished truss
2m-12m
Number of pay-off racks
5
Bottom claw expansion method
pneumatic
Cutting method
Mechanical shear
way to control
PLC+touch screen
PLC
Siemens
