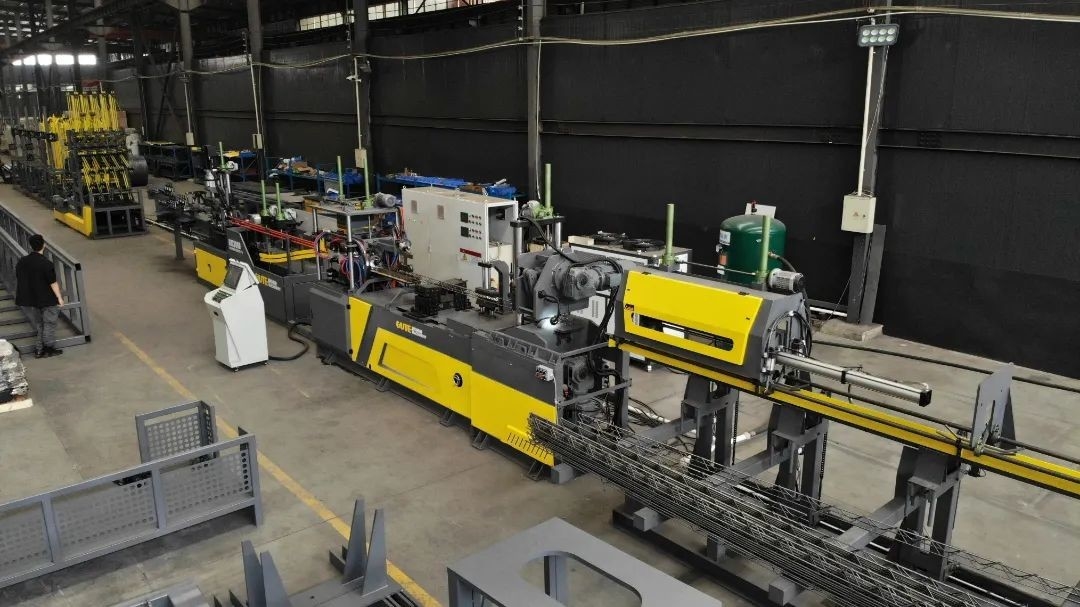

Name: 440V Truss Girder Welding Machine Dia 6mm To 12mm Chord Bars
Brand: Chengdu Gute Machinery Works Co., Ltd.
SKU: GHZ300
Price: 175,000.00 USD
Availability: InStock

Brand Name:	GUTE
Model Number:	GHZ300
MOQ:	1set
Price:	150000-200000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

Brand:

GUTE

Place Of Origin:

SICHUAN,CHINA

Finished Product Height:

Straight Foot 70-300mm Folded Foot 70-250mm

Peak Spacing:

190-210mm (adjustable)

Diameter Of Upper And Lower Chord Bars:

6-12mm

Wave Rib:

4.5-8mm (round Steel)

Power Supply:

380V-50HZ-3P

Voltage:

380V/420V/440V

Supply Ability:

50set/month

Highlight:

440V Truss Girder Welding Machine

Truss Girder Welding Machine 6mm

Truss Girder Welder 12mm

Product Description

Truss Welding Machine Of Pc Assembled Intelligent Equipment

Overview

The distance between wave ribs and crests is 190mm to 210mm, and the precision can be adjusted to 1mm;
Three groups of anti-torsion + automatic shaping to ensure the forming effect of the truss;
The automatic stacking function of the receiving rack is more practical;
each function modular, maintenance convenient transportation;
PLC adopts Siemens, with good stability;
The power adopts 16KW servo motor, with high precision and strong power;
The all-steel parts of the angle mechanism are assembled by welding, and the wear-resistant part is made of replaceable die steel, which has a longer service life;
IKO bearings imported from Japan are used in key parts to ensure service life;
Adjustable pay-off stand with brake, the steel bar feeds more smoothly;

Finished products

440V Truss Girder Welding Machine Dia 6mm To 12mm Chord Bars 0

Device parameters

Name	Parameter
Rated power of upper suspension bar welding	100KWA (intermittent work)
Rated welding power of lower suspension bar	63KWA*2 (intermittent work)
Shearing motor	7.5KW*2
Traction motor	16KW (servo)
Pre-adjusted traction mode	frequency conversion
Power phase number	Three-phase four-wire
power supply	380V 50HZ
Air pressure	0.6-0.8 Mpa
Finished product height	Straight foot 70-300mm Folded foot 70-250mm
Peak spacing	190-210mm (adjustable)
Diameter of upper and lower chord bars	6-12mm
Wave rib	4.5-8mm (round steel)
Maximum welding speed	12m/min≤The actual production speed is determined by the truss specifications
Length of finished truss	2m-12m
Number of pay-off racks	5
Bottom claw expansion method	pneumatic
Cutting method	Mechanical shear
way to control	PLC+touch screen
PLC	Siemens

Equipment advantages

440V Truss Girder Welding Machine Dia 6mm To 12mm Chord Bars 1

440V Truss Girder Welding Machine Dia 6mm To 12mm Chord Bars 2

Mechanical shearing avoids the use cost of hydraulic system maintenance and hydraulic oil replacement

440V Truss Girder Welding Machine Dia 6mm To 12mm Chord Bars 3

The height of the truss is 70-300 infinitely adjustable, and the application range is wider

Our factory

440V Truss Girder Welding Machine Dia 6mm To 12mm Chord Bars 4

440V Truss Girder Welding Machine Dia 6mm To 12mm Chord Bars 5

Our service

440V Truss Girder Welding Machine Dia 6mm To 12mm Chord Bars 7

Certification

440V Truss Girder Welding Machine Dia 6mm To 12mm Chord Bars 8
