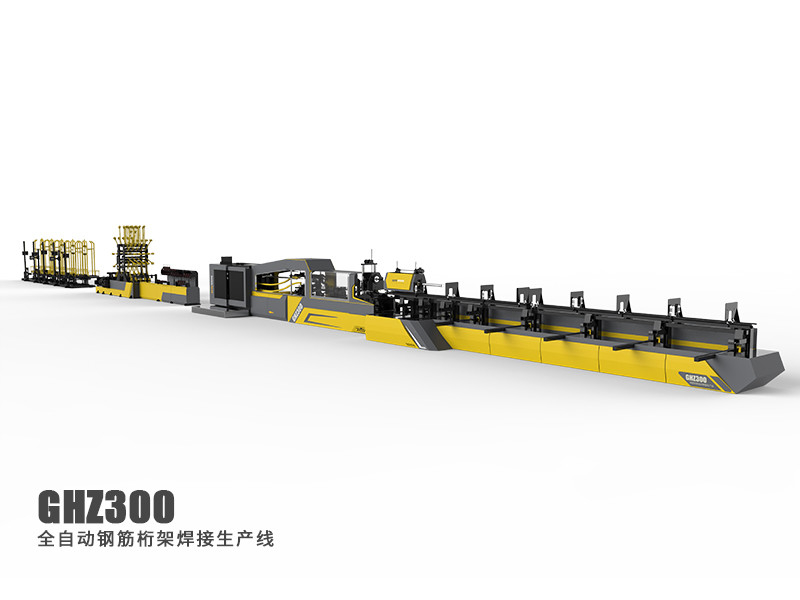

Name: 100KWA Steel Bar Rebar Truss Welding Machine PLC Control
Brand: Chengdu Gute Machinery Works Co., Ltd.
SKU: GHZ300
Price: 150,000.00 USD
Availability: InStock

Brand Name:	GUTE
Model Number:	GHZ300
MOQ:	1set
Price:	140000-160000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

Model:

GHZ300

Finished Product Height:

Straight Foot 70-300mm Folded Foot 70-250mm

Peak Spacing:

190-210mm (adjustable)

Diameter Of Upper And Lower Chord Bars:

6-12mm

Wave Rib:

4.5-8mm (round Steel)

Length Of Finished Truss:

2m-12m

Number Of Pay-off Racks:

Power Supply:

380V-50HZ-3P

Supply Ability:

50set/month

Highlight:

100KWA Rebar Truss Welding Machine

Rebar Truss Welding Machine PLC control

100KWA Steel Bar Truss Welding Machine

Product Description

12m Automatic Steel Bar Truss Resistance Welder Truss Welding Machine

Overview

The distance between wave ribs and crests is 190mm to 210mm, and the precision can be adjusted to 1mm;
The automatic stacking function of the receiving rack is more practical;
PLC adopts Siemens, with good stability;
The power adopts 16KW servo motor, with high precision and strong power;
The all-steel parts of the angle mechanism are assembled by welding, and the wear-resistant part is made of replaceable die steel, which has a longer service life;
IKO bearings imported from Japan are used in key parts to ensure service life;
Adjustable pay-off stand with brake, the steel bar feeds more smoothly;

Finished products

100KWA Steel Bar Rebar Truss Welding Machine PLC Control

Device parameters

Name	Parameter
Rated power of upper suspension bar welding	100KWA (intermittent work)
Rated welding power of lower suspension bar	63KWA*2 (intermittent work)
Shearing motor	7.5KW*2
Traction motor	16KW (servo)
Pre-adjusted traction mode	frequency conversion
Power phase number	Three-phase four-wire
power supply	380V 50HZ
Air pressure	0.6-0.8 Mpa
Finished product height	Straight foot 70-300mm Folded foot 70-250mm
Peak spacing	190-210mm (adjustable)
Diameter of upper and lower chord bars	6-12mm
Wave rib	4.5-8mm (round steel)
Maximum welding speed	12m/min≤The actual production speed is determined by the truss specifications
Length of finished truss	2m-12m
Number of pay-off racks	5
Bottom claw expansion method	pneumatic
Cutting method	Mechanical shear
way to control	PLC+touch screen
PLC	Siemens

Equipment advantages

100KWA Steel Bar Rebar Truss Welding Machine PLC Control

Mechanical shearing avoids the use cost of hydraulic system maintenance and hydraulic oil replacement

100KWA Steel Bar Rebar Truss Welding Machine PLC Control

The height of the truss is 70-300 infinitely adjustable, and the application range is wider

Our factory

100KWA Steel Bar Rebar Truss Welding Machine PLC Control

Our service

100KWA Steel Bar Rebar Truss Welding Machine PLC Control

Certification

100KWA Steel Bar Rebar Truss Welding Machine PLC Control
