Product Details:
Payment & Shipping Terms:
|
| Finished Product Height: | Straight Foot 70-300mm Folded Foot 70-250mm | Peak Spacing: | 190-210mm (adjustable) |
|---|---|---|---|
| Diameter Of Upper And Lower Chord Bars: | 6-12mm | Wave Rib: | 4.5-8mm (round Steel) |
| Length Of Finished Truss: | 2m-12m | Number Of Pay-off Racks: | 5 |
| High Light: | 210mm Truss Girder Welding Machine,210mm CNC Truss Welding Machine,5 payoff racks CNC Truss Welding Machine |
||

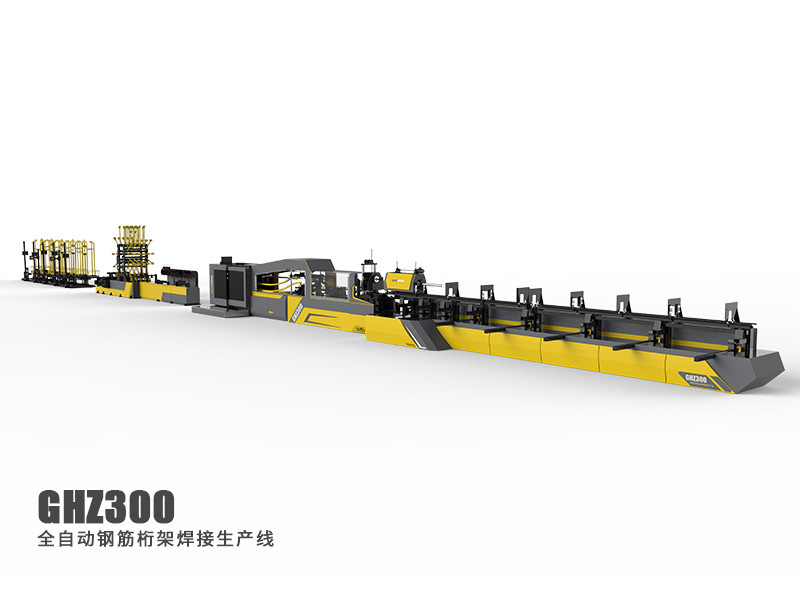

Overview Finished products Device parameters Equipment advantages Mechanical shearing avoids the use cost of hydraulic system maintenance and hydraulic oil replacement The height of the truss is 70-300 infinitely adjustable, and the application range is wider Our factory Our service Certification
Name
Parameter
Rated power of upper suspension bar welding
100KWA (intermittent work)
Rated welding power of lower suspension bar
63KWA*2 (intermittent work)
Shearing motor
7.5KW*2
Traction motor
16KW (servo)
Pre-adjusted traction mode
frequency conversion
Power phase number
Three-phase four-wire
power supply
380V 50HZ
Air pressure
0.6-0.8 Mpa
Finished product height
Straight foot 70-300mm Folded foot 70-250mm
Peak spacing
190-210mm (adjustable)
Diameter of upper and lower chord bars
6-12mm
Wave rib
4.5-8mm (round steel)
Maximum welding speed
12m/min≤The actual production speed is determined by the truss specifications
Length of finished truss
2m-12m
Number of pay-off racks
5
Bottom claw expansion method
pneumatic
Cutting method
Mechanical shear
way to control
PLC+touch screen
PLC
Siemens
