GUTE Rebar Feeding Machine 15KW Feeding Robot 12*2.8*1.6m
  • name
  • name
  • name

GUTE Rebar Feeding Machine 15KW Feeding Robot 12*2.8*1.6m

Brand Name: GUTE
Model Number: GSL-40
MOQ: 1set
Price: 20000-25000USD/SET
Packaging Details: plywood case
Payment Terms: L/C, T/T, D/P, D/A
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO 9001:2000
Rebar Diameter:
Φ12-Φ40mm
Rebar Length:
≤12m
Feeding Speed:
16/min
Machine Weight:
2.6t
Supply Ability:
50set/month
Highlight:

GUTE Rebar Feeding Machine

,

15KW Feeding Robot

,

Rebar Feeding Machine 12*2.8*1.6m

Product Description



Rebar Feeding Machine feeding Robot
01


Overview

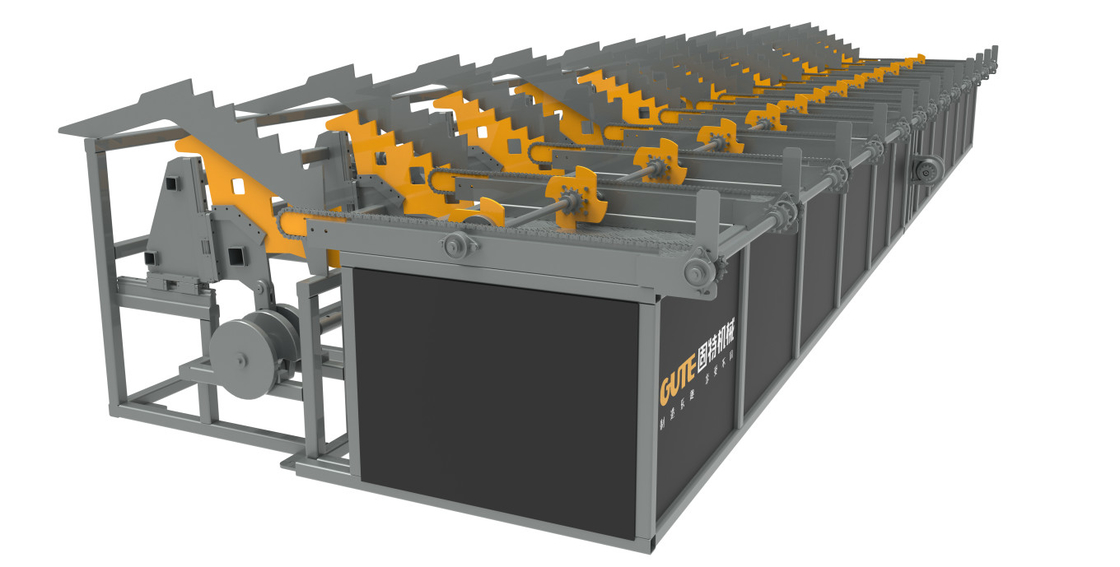

The CNC automatic rebar feeding machine is a machine and equipment that automatically divides and feeds materials. This machine only needs one button to select the corresponding number of rebars and rebar diameters on the touch screen, and automatically completes the adjustment distance of the movable ladder rubbing plate. After starting, the rebar After the cam distributing mechanism, the staggered steel bars are straightened out, and then sent to the stepped rolling mechanism to complete automatic feeding, one by one, when the number of steel bars required for the setting is reached, the steel bars are automatically fed to the configured machinery and equipment.

02


Scope of application

Mainly used in the construction of high-speed, road and bridge, railway, subway and other projects.





03


Device parameters

Rebar diameter Φ12-φ40mm

Feeding speed



 16次/min

Rebar length



 ≦12m
rated power 15KW

Total Weight



 2.6T
Overall size 12*2.8*1.6m
04


Equipment advantages

GUTE Rebar Feeding Machine 15KW Feeding Robot 12*2.8*1.6m 0

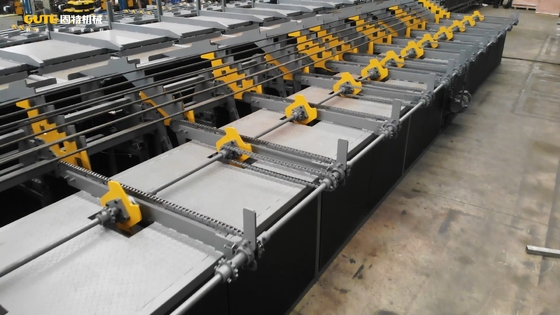

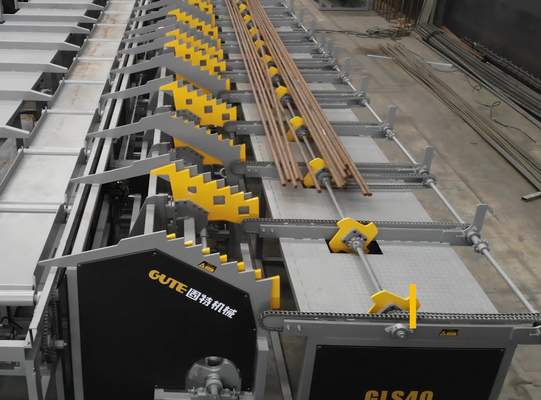

Cam material distributing mechanism: Automatically disperse materials, disperse raw materials and disordered steel bars, and automatically disperse materials;

GUTE Rebar Feeding Machine 15KW Feeding Robot 12*2.8*1.6m 1

Ladder rubbing board feeding mechanism: automatic quantitative feeding and distributing purpose according to system control;

GUTE Rebar Feeding Machine 15KW Feeding Robot 12*2.8*1.6m 2

Quantitative feeder: one-key operation, automatic distance adjustment, to achieve the purpose of automatic quantitative feed, according to the control system, control the quantity, and carry out the purpose of feed.








Our factory

GUTE Rebar Feeding Machine 15KW Feeding Robot 12*2.8*1.6m 3

GUTE Rebar Feeding Machine 15KW Feeding Robot 12*2.8*1.6m 4








Our service

GUTE Rebar Feeding Machine 15KW Feeding Robot 12*2.8*1.6m 6










Certification

GUTE Rebar Feeding Machine 15KW Feeding Robot 12*2.8*1.6m 7



Tags:

CNC Rebar Feeder 16 times /min

2.6t Steel Bar Feeding Machine

16mm CNC Rebar Feeder

Good price online
