Rebar Shear Line
>

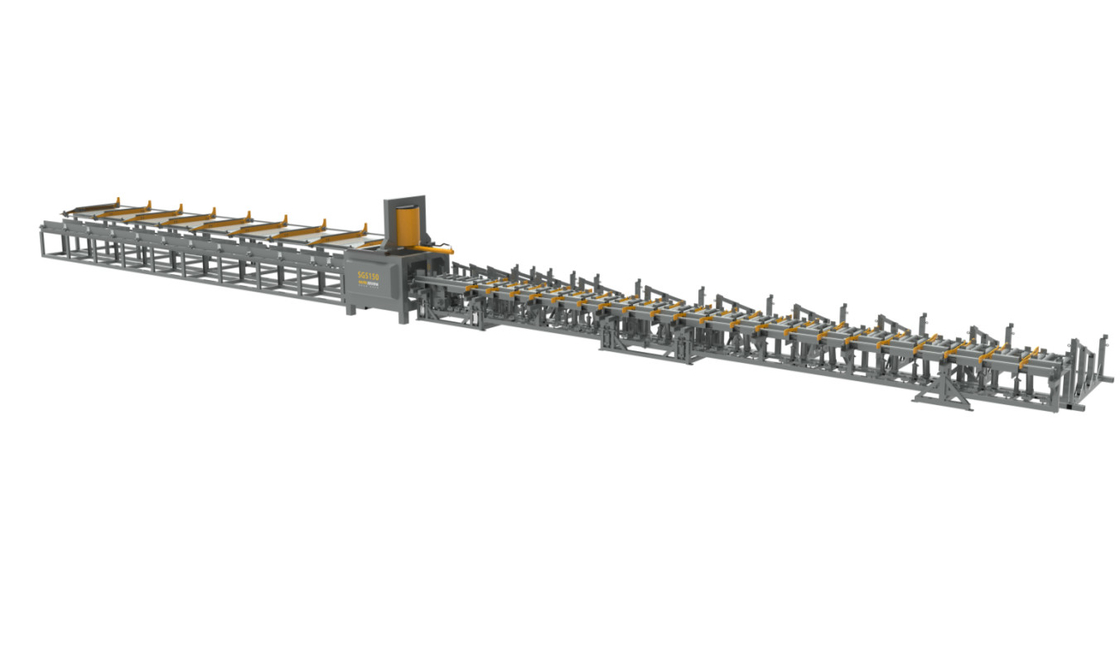

Hydraulic CNC Automatic Shearing Line Machine 30m×5m×3m

Hydraulic CNC Automatic Shearing Line Machine 30m×5m×3m

Brand Name: GUTE
Model Number: SGS150
MOQ: 1set
Price: 45000-54000USD/SET
Packaging Details: plywood case
Payment Terms: L/C, T/T, D/P, D/A
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO 9001:2000
Brand:
GUTE
Model:
SGS150
Cutting Edge Width:
500mm
Cutting Capacity:
12-50mm
Cutting Type:
Hydraulic
Max Cutting:
50mm
Supply Ability:
200set/month
Highlight:

Hydraulic Shearing Line Machine

,

Hydraulic CNC Automatic Shearing Machine

,

Shearing Line Machine 30m×5m×3m

Product Description

50mm Hydraulic Rebar Cnc Automatic Cutting Machine Shearing Machine 12m Length图片1.png

  • Mechanical shearing mode, thicker and wider gears, stable and efficient cutting, fully encapsulated shield, effectively enhance safety;
  • The use of inclined blade design, to ensure the simultaneous shearing of multiple steel bars, strong shearing capacity.
  • Fixed-length plate and cylinder are connected by pin to ensure working sensitivity; one fixed-length plate and one cylinder can turn over material faster and set length faster;
  • The fixed-length frame moving guide rail adopts the whole solid square steel, which is more stable; there are keys under the transmission chain as guide rail, which can guide and reduce friction and improve the service life of the chain;
  • The positioning screw rod uses a high-strength spiral elevator and is not easy to start.
  • The feeding drum is installed on the top of channel steel, which is easy to disassemble and assemble, and easy to maintain.



Cutting edge width 500mm
Shearing mode Hydraulic shearing
Roller speed 0-100m/min adjustable
Maximum shear length 12m
Minimum shear length 1.4m
Shear Accuracy ±5mm
Shear frequency ≤12n/min
Silo Series 3
Rated power 42kw
Total weight 15t
Long x wide x high 30m×5m×3m
Reinforcement diameter 50 40 32 25 20 18 16 12
Bending quantity 1 2 6 15 20 22 25 40
Length Control Mode Servo



Hydraulic CNC Automatic Shearing Line Machine 30m×5m×3m 2

 Hydraulic CNC Automatic Shearing Line Machine 30m×5m×3m 3

Hot Tags: rebar shearing machine, manufacturers, suppliers, price







Our factory

Hydraulic CNC Automatic Shearing Line Machine 30m×5m×3m 4

Hydraulic CNC Automatic Shearing Line Machine 30m×5m×3m 5








Our service

Hydraulic CNC Automatic Shearing Line Machine 30m×5m×3m 7










Certification

Hydraulic CNC Automatic Shearing Line Machine 30m×5m×3m 8
