Cutting Edge Width 500mm CNC Automatic Hydraulic Rebar Shearing Line 100m/Min

Brand Name:	GUTE
Model Number:	SGS150
MOQ:	1set
Price:	45000-54000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

Brand:

Model:

SGS150

Cutting Edge Width:

500mm

Maximum Shear Length:

Cutting Type:

Hydraulic

Max Cutting:

Supply Ability:

200set/month

Highlight:

500mm Hydraulic Rebar Shearing Line

Hydraulic Rebar Shearing Line 100m/min

500mm CNC Automatic Rebar Shearing

Product Description

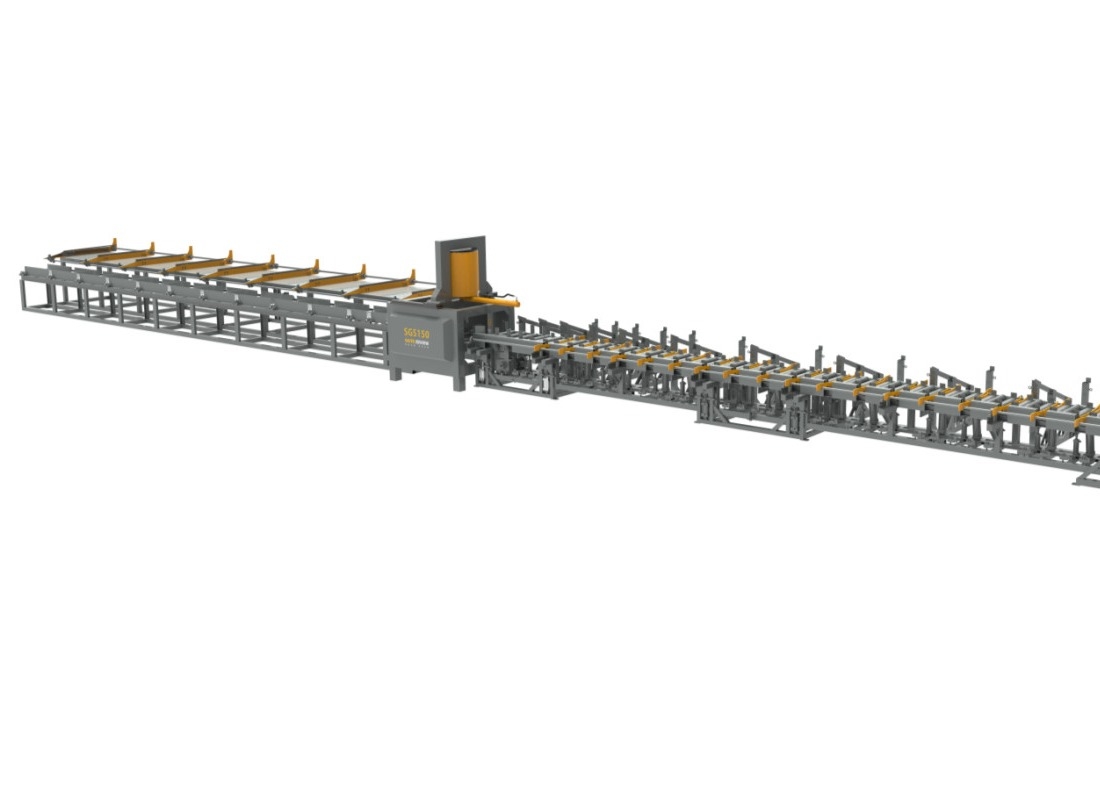

500mm Hydraulic Rebar CNC Automatic Cutting Machine Shearing Line Machine 图片1.png

The loading frame and feeding frame are designed as a whole with more stable structure, fixed feeding position and no displacement deformation;
The feeding trough increases unilaterally to avoid the steel bar rolling out when feeding, which is safer;
The key bar under the transmission chain acts as a guide rail to guide and reduce friction force and improve The service life of the chain;
There is a pre-feeding mechanism to make the two reinforcing bars discharge coherently and increase the service life of the chain; and there is a pre-feeding mechanism to make the two reinforcing bars discharge continuously. Processing efficiency.

Cutting edge width	500mm
Shearing mode	Hydraulic shearing
Roller speed	0-100m/min adjustable
Maximum shear length	12m
Minimum shear length	1.4m
Shear Accuracy	±5mm
Shear frequency	≤12n/min
Silo Series	3
Rated power	42kw
Total weight	15t
Long x wide x high	30m×5m×3m
Reinforcement diameter	50	40	32	25	20	18	16	12
Bending quantity	1	2	6	15	20	22	25	40
Length Control Mode	Servo


Cutting Edge Width 500mm CNC Automatic Hydraulic Rebar Shearing Line 100m/Min 2

Cutting Edge Width 500mm CNC Automatic Hydraulic Rebar Shearing Line 100m/Min 3
