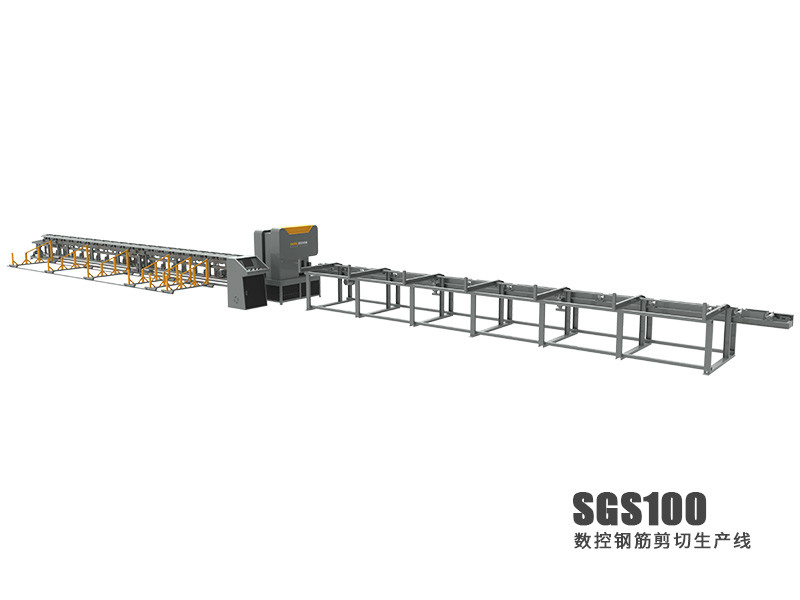

10-40mm Mechanical CNC Rebar Shearing Line Machine High Positioning Accuracy

CNC Rebar Shearing Line

• PLC control shearing precision, high precision of finished steel bar, suitable for shearing processing of steel bar with many specifications and small batches.
• The machine has 24 fixed length plates, all of them are steel plate structure, with fixed length servo motor, the fixed length is fast and accurate.
• Large length blade and inclined blade design are adopted to ensure that multiple reinforcing bars can be cut at the same time.
• Equipped with centralized oil supply system to ensure long life operation.
• Level 3 product storage mechanism facilitates the collection of multiple products.
• Thickened and widened gears, stable and efficient cutting, fully encapsulated shield, effectively enhance safety.
• The positioning screw adopts high strength spiral elevator, which is not easy to deform and has high positioning accuracy.
• The loading frame and feeding frame are designed as a whole with more stable structure, fixed feeding position and no displacement deformation;
• The feeding trough increases unilaterally to avoid the steel bar rolling out when feeding, which is safer;
• The key bar under the transmission chain acts as a guide rail to guide and reduce friction force and improve The service life of the chain;
• There is a pre-feeding mechanism to make the two reinforcing bars discharge coherently and increase the service life of the chain; and there is a pre-feeding mechanism to make the two reinforcing bars discharge continuously. Processing efficiency.

• Mechanical shearing mode, thicker and wider gears, stable and efficient cutting, fully encapsulated shield, effectively enhance safety;
• The use of inclined blade design, to ensure the simultaneous shearing of multiple steel bars, strong shearing capacity.

• Fixed-length plate and cylinder are connected by pin to ensure working sensitivity; one fixed-length plate and one cylinder can turn over material faster and set length faster;
• The fixed-length frame moving guide rail adopts the whole solid square steel, which is more stable; there are keys under the transmission chain as guide rail, which can guide and reduce friction and improve the service life of the chain;
• The positioning screw rod uses a high-strength spiral elevator and is not easy to start.
• The feeding drum is installed on the top of channel steel, which is easy to disassemble and assemble, and easy to maintain.

• pneumatic components adopt famous brand Airtac of Taiwan , ensure the service life
• Split thickening blade design, thickness up to 40mm, easy to use for many times
