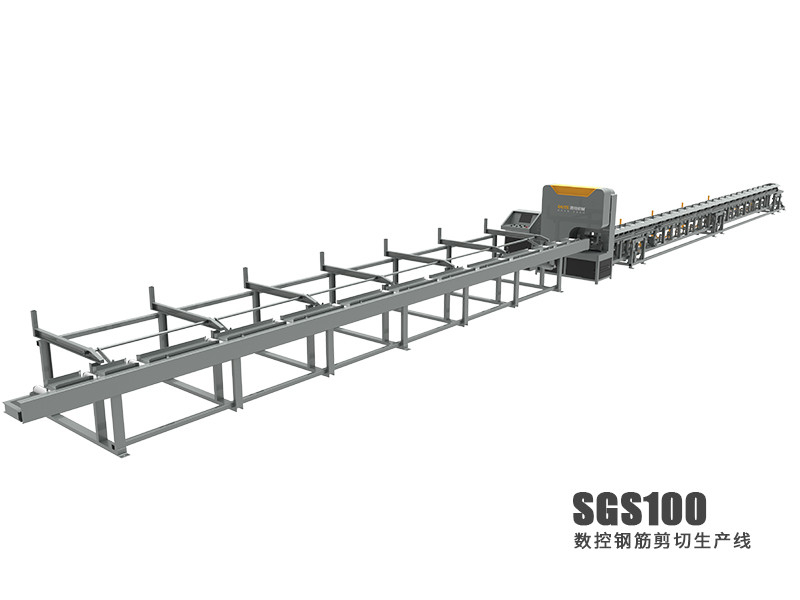

Name: Electric Knife CNC Cutting Rebar Shear Line 28m×3m×2m
Brand: Chengdu Gute Machinery Works Co., Ltd.
SKU: SGS100
Price: 43,000.00 USD
Availability: InStock

Brand Name:	GUTE
Model Number:	SGS100
MOQ:	1set
Price:	42000-44000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C,T/T,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

Cutting Edge Width:

300mm

Maximum Shear Length:

12m

Minimum Shear Length:

1.5m

Shear Accuracy:

±5mm

Long X Wide X High:

28m×3m×2m

Cutting Capacity:

10-40mm

Model:

SGS100

Brand:

GUTE

Supply Ability:

200set/month

Highlight:

Electric Knife Rebar Shear Line

Electric Knife CNC Cutting Shear Line

CNC shear line 28m×3m×2m

Product Description

Introduce:

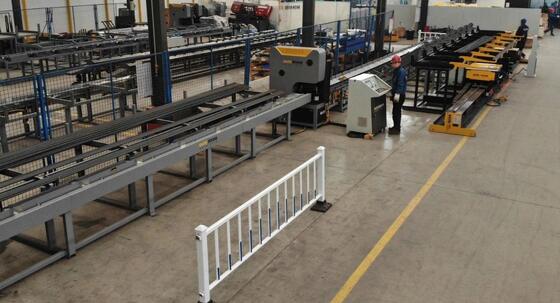

PLC control shearing precision, high precision of finished steel bar, suitable for shearing processing of steel bar with many specifications and small batches.
The machine has 24 fixed length plates, all of them are steel plate structure, with fixed length servo motor, the fixed length is fast and accurate.

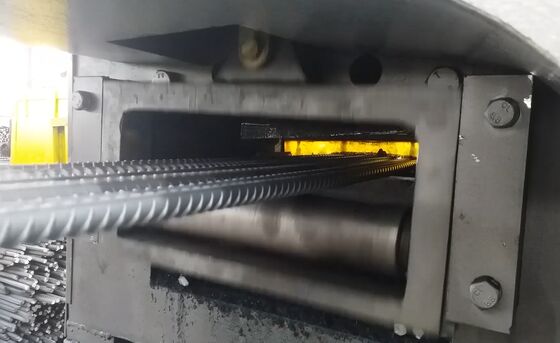

Large length blade and inclined blade design are adopted to ensure that multiple reinforcing bars can be cut at the same time.
Equipped with centralized oil supply system to ensure long life operation.
Level 3 product storage mechanism facilitates the collection of multiple products.
Thickened and widened gears, stable and efficient cutting, fully encapsulated shield, effectively enhance safety.
The positioning screw adopts high strength spiral elevator, which is not easy to deform and has high positioning accuracy.
The cutting length can be set arbitrarily and work continuously. The speed block can be conveyed, and the cutting accuracy of fixed length is high.
Chains have keys as guide ways, and chains and guide ways are rolling friction. They have small wear and tear, long service life and high transmission efficiency.

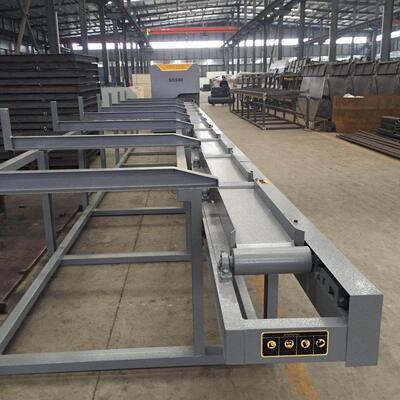

The loading frame and feeding frame are designed as a whole with more stable structure, fixed feeding position and no displacement deformation;
The feeding trough increases unilaterally to avoid the steel bar rolling out when feeding, which is safer;
The key bar under the transmission chain acts as a guide rail to guide and reduce friction force and improve The service life of the chain;
There is a pre-feeding mechanism to make the two reinforcing bars discharge coherently and increase the service life of the chain; and there is a pre-feeding mechanism to make the two reinforcing bars discharge continuously. Processing efficiency.

Mechanical shearing mode, thicker and wider gears, stable and efficient cutting, fully encapsulated shield, effectively enhance safety;
The use of inclined blade design, to ensure the simultaneous shearing of multiple steel bars, strong shearing capacity.

Fixed-length plate and cylinder are connected by pin to ensure working sensitivity; one fixed-length plate and one cylinder can turn over material faster and set length faster;
The fixed-length frame moving guide rail adopts the whole solid square steel, which is more stable; there are keys under the transmission chain as guide rail, which can guide and reduce friction and improve the service life of the chain;
The positioning screw rod uses a high-strength spiral elevator and is not easy to start.
The feeding drum is installed on the top of channel steel, which is easy to disassemble and assemble, and easy to maintain.

pneumatic components adopt famous brand Airtac of Taiwan , ensure the service life
Split thickening blade design, thickness up to 40mm, easy to use for many times

CERTIFICATION

WORLDWIDE PARTNER

OUR SHOP

CONTACT

Contacts:	Jurrivh
Mobile(What's APP):	+86 18349380338
Email:	sales5@cdgute.com

CNC shear line 28m×3m×2m

12m CNC Rebar Cutting line

Electric Knife CNC Cutting Shear Line

Products Details

Home > Products >

Rebar Shear Line

Electric Knife CNC Cutting Rebar Shear Line 28m×3m×2m

All Category

Automatic Stirrup Bending Machine

CNC Rebar Bending Machine

CNC Stirrup Bending Machine

Pile Cage Welding Machine

Rebar Shear Line

Rebar Saw Shear Line

Truss Girder Welding Machine

Rebar Feeder

Automatic Rebar Bending Machine

Steel Bar Bender

Steel Bar Cutter

Rebar Straightening And Cutting Machine

Electric Knife CNC Cutting Rebar Shear Line 28m×3m×2m

Brand Name:	GUTE
Model Number:	SGS100
MOQ:	1set
Price:	42000-44000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C,T/T,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Brand Name:

GUTE

Certification:

CE,ISO 9001:2000

Model Number:

SGS100

Cutting Edge Width:

300mm

Maximum Shear Length:

12m

Minimum Shear Length:

1.5m

Shear Accuracy:

±5mm

Long X Wide X High:

28m×3m×2m

Cutting Capacity:

10-40mm

Model:

SGS100

Brand:

GUTE

Minimum Order Quantity:

1set

Price:

42000-44000USD/SET

Packaging Details:

plywood case

Delivery Time:

20 work days

Payment Terms:

L/C,T/T,D/P,D/A

Supply Ability:

200set/month

Highlight:

Electric Knife Rebar Shear Line

Electric Knife CNC Cutting Shear Line

CNC shear line 28m×3m×2m

Product Description

Introduce:

PLC control shearing precision, high precision of finished steel bar, suitable for shearing processing of steel bar with many specifications and small batches.
The machine has 24 fixed length plates, all of them are steel plate structure, with fixed length servo motor, the fixed length is fast and accurate.
Large length blade and inclined blade design are adopted to ensure that multiple reinforcing bars can be cut at the same time.
Equipped with centralized oil supply system to ensure long life operation.
Level 3 product storage mechanism facilitates the collection of multiple products.
Thickened and widened gears, stable and efficient cutting, fully encapsulated shield, effectively enhance safety.
The positioning screw adopts high strength spiral elevator, which is not easy to deform and has high positioning accuracy.
The cutting length can be set arbitrarily and work continuously. The speed block can be conveyed, and the cutting accuracy of fixed length is high.
Chains have keys as guide ways, and chains and guide ways are rolling friction. They have small wear and tear, long service life and high transmission efficiency.

The loading frame and feeding frame are designed as a whole with more stable structure, fixed feeding position and no displacement deformation;
The feeding trough increases unilaterally to avoid the steel bar rolling out when feeding, which is safer;
The key bar under the transmission chain acts as a guide rail to guide and reduce friction force and improve The service life of the chain;
There is a pre-feeding mechanism to make the two reinforcing bars discharge coherently and increase the service life of the chain; and there is a pre-feeding mechanism to make the two reinforcing bars discharge continuously. Processing efficiency.

Mechanical shearing mode, thicker and wider gears, stable and efficient cutting, fully encapsulated shield, effectively enhance safety;
The use of inclined blade design, to ensure the simultaneous shearing of multiple steel bars, strong shearing capacity.

Fixed-length plate and cylinder are connected by pin to ensure working sensitivity; one fixed-length plate and one cylinder can turn over material faster and set length faster;
The fixed-length frame moving guide rail adopts the whole solid square steel, which is more stable; there are keys under the transmission chain as guide rail, which can guide and reduce friction and improve the service life of the chain;
The positioning screw rod uses a high-strength spiral elevator and is not easy to start.
The feeding drum is installed on the top of channel steel, which is easy to disassemble and assemble, and easy to maintain.

pneumatic components adopt famous brand Airtac of Taiwan , ensure the service life
Split thickening blade design, thickness up to 40mm, easy to use for many times
