Name: Maximum Shear Length 12m CNC Rebar Shearing And Cutting Line 22n/Min
Brand: Chengdu Gute Machinery Works Co., Ltd.
SKU: SGS100
Price: 41,000.00 USD
Availability: InStock

Brand Name:	GUTE
Model Number:	SGS100
MOQ:	1set
Price:	38000-44000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

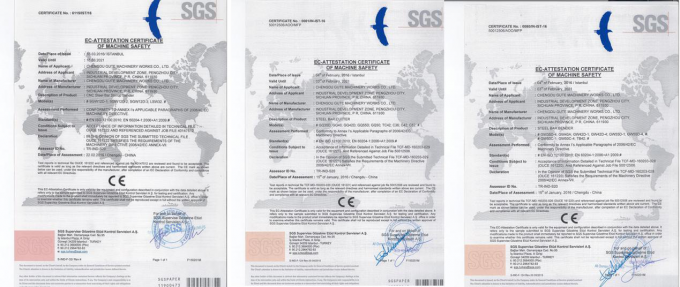

CE,ISO 9001:2000

Cutting Edge Width:

300mm

Maximum Shear Length:

12m

Minimum Shear Length:

1.5m

Shear Accuracy:

±5mm

Long X Wide X High:

28m×3m×2m

Cutting Capacity:

10-40mm

Supply Ability:

200set/month

Highlight:

12m CNC Rebar Cutting line

CNC Rebar Cutting line 22n/min

CNC Shearing line 22n/min

Product Description

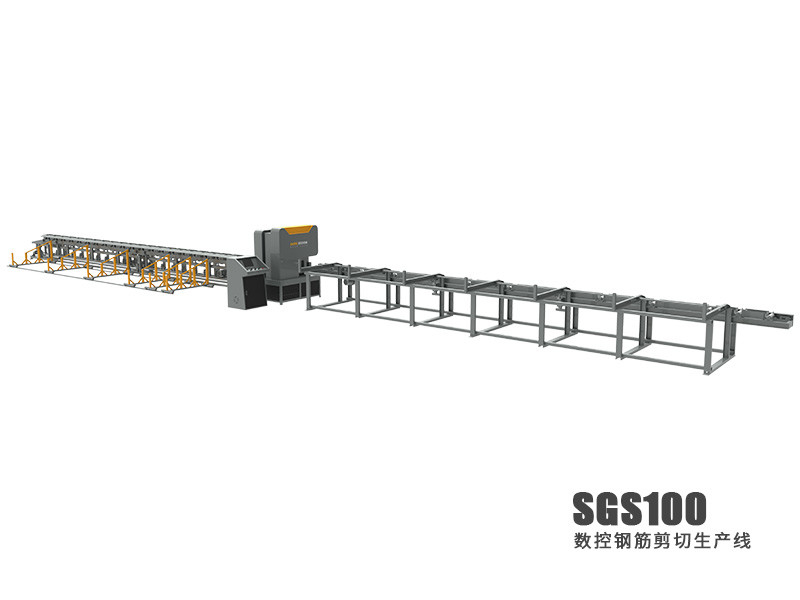

40mm Rebar CNC Cutting Machine shear line


1. Controlled by PLC system, cutting length can be setted freely, and produce in a constant and efficient way.

2. Fixing length accurately, using multi-level baffles and automatic CNC removal equipment, which makes the operation much more easier.

3. Three-step storage bin can satisfy the placement for various specifications of steel bar.

4. Extending easily, it can be blocked with BENDING CENTER and THREAD ROLLER.

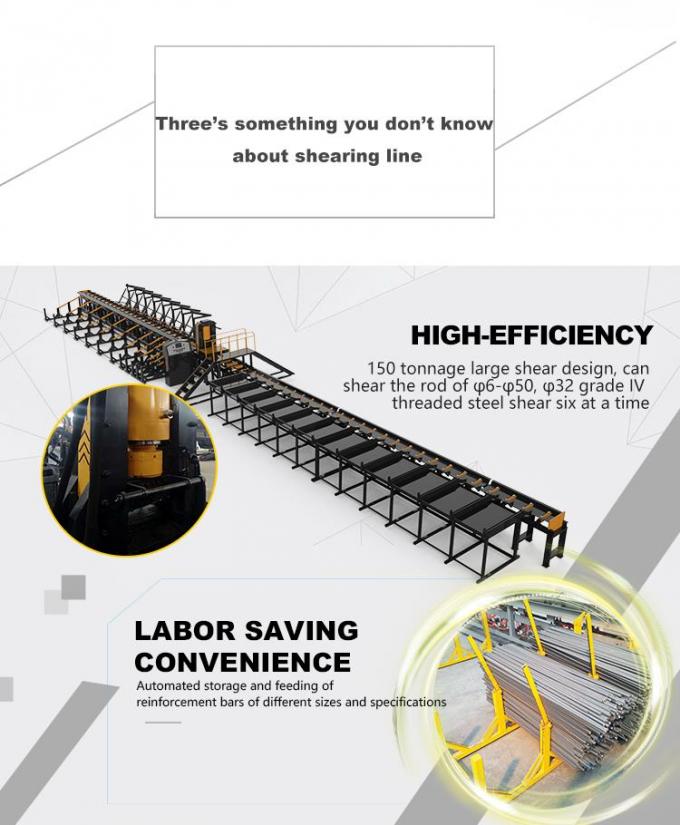

5. Cutting strength can reach to 150t, max diameter is 50mm for cutting steel bar.

6. Can cut 6 pieces of screw of screw thread seel bars by 32mm diameter each time.

Cutting edge width	300mm
Shearing mode	mechanical shearing
Roller speed	0-100m/min adjustable
Maximum shear length	12m
Minimum shear length	1.5m
Shear Accuracy	±5mm
Shear frequency	≤22n/min
Silo Series	3
Rated power	27kw
Total weight	6.8t
Long x wide x high	28m×3m×2m
Reinforcement diameter	40	36	32	28	25	20	16	12
Bending quantity	1	1	2	3	4	6	10	12
Length Control Mode	Servo

图片2.png 排切_01

排切_02

排切_03
