Product Details:
Payment & Shipping Terms:
|
| Brand: | GUTE | Maximum Bending Angle: | -120°~180° |
|---|---|---|---|
| Longest Stirrup: | 11m | Minimum Margin Spacing: | 950mm |
| L*W*H: | 12.8m×3m×1.1m | Max Bending: | 40mm |
| Highlight: | 18mm CNC Rebar Bending Machine,Horizontal Long Hook Bender machine,18mm CNC Rebar Bending Machine |
||

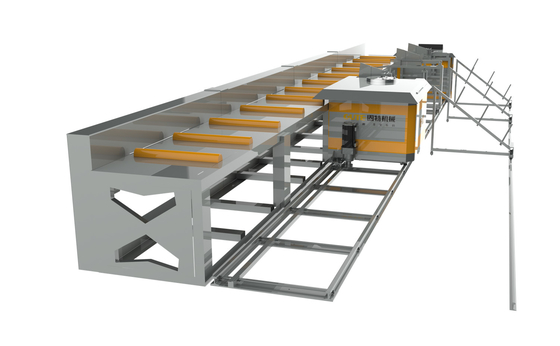

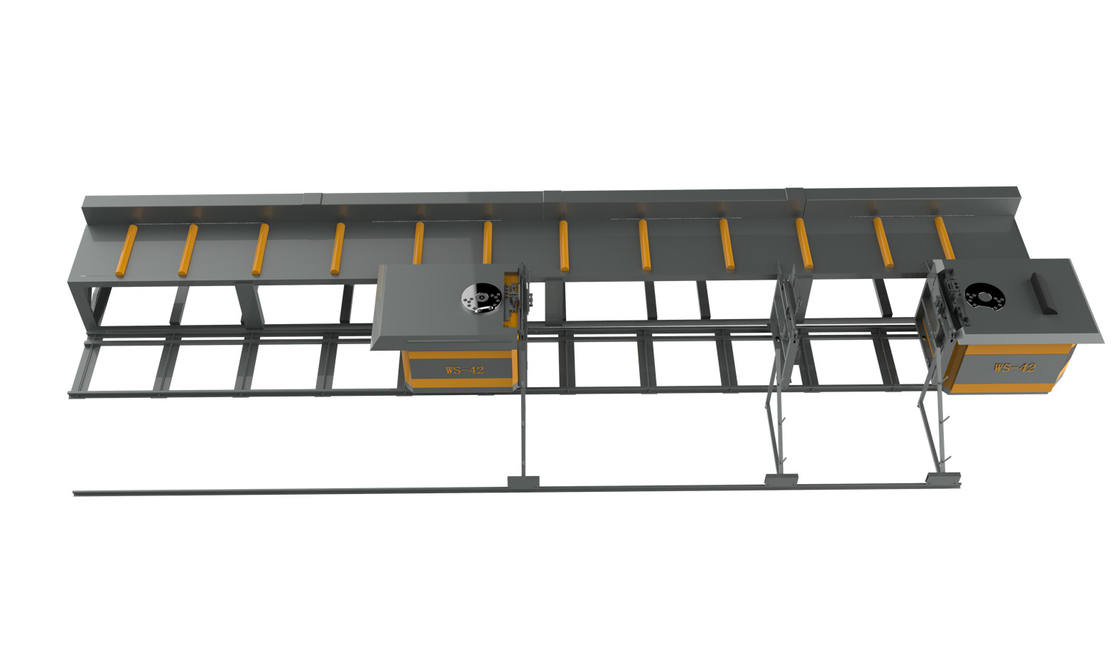

18mm Horizontal Type Autmatic Rebar Bending Machine Long Hook Bender 32m Double Head Cnc Autmatic Rebar Bending Machine Overview The steel bar support adopts the crank connecting rod mechanism, and the steel bar support .At the same time, the steel bar is sent to the top of the bending machine head, which is convenient for the operator to discharge and reduce the labor intensity of the workers. In addition, it is driven by a motor reducer. All the supporting rods have the same action and the transmission is stable and reliable. Device parameters Equipment advantages The steel bar support adopts the crank connecting rod mechanism, and the steel bar support .At the same time, the steel bar is sent to the top of the bending machine head, which is convenient for the operator to discharge and reduce the labor intensity of the workers. In addition, it is driven by a motor reducer. All the supporting rods have the same action and the transmission is stable and reliable. Both the left and right bending heads and the holder are equipped with automatic steel unloading hooks to process longer steel When reinforcing steel bars, the automatic unloading of steel bars can still be realized. Case Our factory Our service Certification
rated power
28.5KW
Air source working pressure
0.8MPa
Maximum bending angle
-120°至180°
Maximum bending length
10m
Minimum curved edge spacing
950mm
Moving speed of machine head
0.5-0.9m/sec
Fastest bending speed
72°/sec
total weight
6.5t
L*W*H
12.8m×3m×1.1m
Diameter
10
12
14
16
20
22
25
32
40
Quantity
7
6
5
5
3
2
2
1
1
±≤90°
Movement Control
Servo
Bending Control
Servo
Power source
pneumatic
