Product Details:
Payment & Shipping Terms:
|
| Maximum Bending Angle: | -120°~180° | Longest Stirrup: | 10m |
|---|---|---|---|
| Minimum Margin Spacing: | 390mm | Head Movement Speed: | 0.1-1m/sec |
| L*W*H: | 12m×2m×1.5m | Voltage: | 380V/420V/440V |
| Highlight: | 5KW/H CNC Rebar Bending Machine,5KW/H automatic stirrup bender,10m automatic stirrup bender |
||

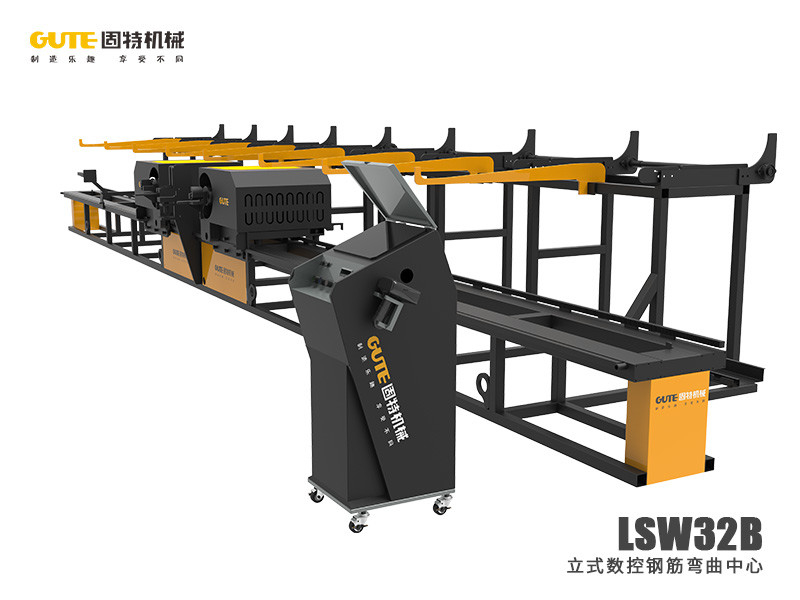

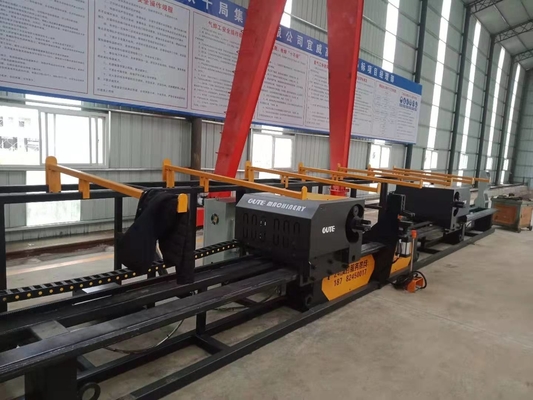

Overview The vertical CNC steel bar bending center can be used in the construction of high-speed, road and bridge, housing construction, subway and other projects. The raw material is 10-32mm bar. Can process a variety of graphics, using PLC control. Device parameters Equipment advantages The all-steel welded box body is strong, durable, and will not deform for life. Using rack drive to ensure accurate product size. The bending and walking are all controlled by servo motors, the bending angle is accurate, and the forming size is accurate. Case Our factory Our service Certification
rated power
18KW
Air source working pressure
0.8MPa
Maximum bending angle
-120°至180°
Maximum bending length
10m
Minimum curved edge spacing
390mm
Moving speed of machine head
0.5-1m/sec
Fastest bending speed
72°/sec
total weight
4t
Average power consumption
5KW/H
L*W*H
12m×2m×1.5m
Diameter
10
12
14
16
20
22
25
28
32
Quantity
7
6
5
4
3
2
1
1
1
±≤90°
Movement Control
Servo
Bending Control
Servo
Power source
pneumatic
