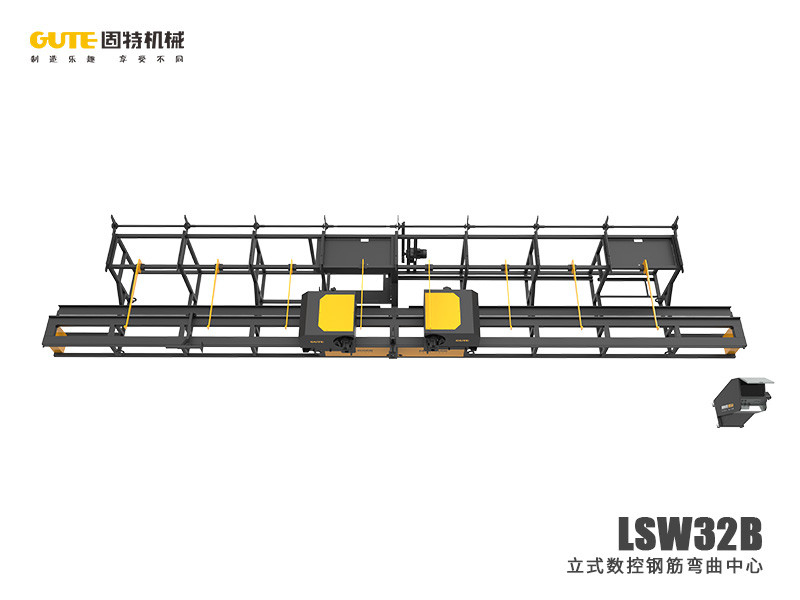

Name: 380V 420V Automatic Rebar Stirrup Bending Machine Double Head 18KW
Brand: Chengdu Gute Machinery Works Co., Ltd.
SKU: LSW-32B
Price: 24,500.00 USD
Availability: InStock

Brand Name:	GUTE
Model Number:	LSW-32B
MOQ:	1set
Price:	21000-28000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

Model:

LSW-32B

Longest Stirrup:

10m

Minimum Margin Spacing:

390mm

Head Movement Speed:

0.1-1m/sec

L*W*H:

12m×2m×1.5m

Voltage:

380V/420V/440V

Supply Ability:

200set/month

Highlight:

380V 420V automatic rebar stirrup bending machine

380V 420V Double Head Rebar Bending Machine

Double Head Rebar Bending Machine 18KW

Product Description

32m Rebar Double Head Cnc Automatic Rebar Bending Machine Stirrup Bender

32m Rebar Double Head Cnc Autmatic Rebar Bending Machine Stirrup Bender

Overview

Φ32 threaded steel bars are bent forward and backward to meet the needs of more customers.
Tailor-made forming wheels can bend complex rebar patterns.
The longest can be bent to 10 meters, to meet a variety of graphics requirements, strong practicability.
Computer programming can store hundreds of graphics.
The bending and walking are all controlled by servo motors, the bending angle is accurate, and the molding size is more accurate.
Touch screen console, easy operation, automatic bending and rapid prototyping.
All steel plate welded box base, strong and durable; equipped with standard reducer to increase the service life.
Rack drive is adopted to ensure accurate product size.
Pneumatic adopts the well-known brand Taiwan AirTAC to ensure the quality, and is equipped with a 5.5KW air compressor to ensure sufficient air supply.
Innovative horseshoe rib forming wheel design, the shortest side of horseshoe can reach 390mm.

Device parameters

rated power	18KW
Air source working pressure	0.8MPa
Maximum bending angle	-120°至180°
Maximum bending length	10m
Minimum curved edge spacing	390mm
Moving speed of machine head	0.5-1m/sec
Fastest bending speed	72°/sec
total weight	4t
Average power consumption	5KW/H
LWH	12m×2m×1.5m
Diameter	10	12	14	16	20	22	25	28	32
Quantity	7	6	5	4	3	2	1	1	1	±≤90°
Movement Control	Servo
Bending Control	Servo
Power source	pneumatic

Equipment advantages

The all-steel welded box body is strong, durable, and will not deform for life.

Using rack drive to ensure accurate product size.

The bending and walking are all controlled by servo motors, the bending angle is accurate, and the forming size is accurate.

Finished product

380V 420V Automatic Rebar Stirrup Bending Machine Double Head 18KW 3

Case

380V 420V Automatic Rebar Stirrup Bending Machine Double Head 18KW 4

Our factory

380V 420V Automatic Rebar Stirrup Bending Machine Double Head 18KW 5

380V 420V Automatic Rebar Stirrup Bending Machine Double Head 18KW 6

Our service

380V 420V Automatic Rebar Stirrup Bending Machine Double Head 18KW 8

Certification

380V 420V Automatic Rebar Stirrup Bending Machine Double Head 18KW 9
