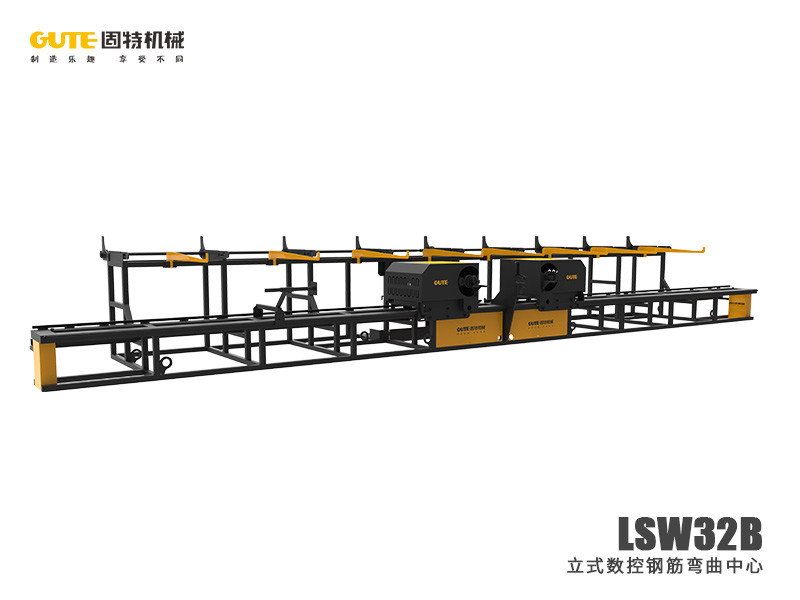

1m/Sec CNC Rebar Bending Machine Ribbed Bar Bender PLC Control

Brand Name:	GUTE
Model Number:	LSW-32B
MOQ:	1set
Price:	21000-28000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

Brand:

Gas Source Wor:

0.8MPa

Maximum Bending Angle:

-120°~180°

Longest Stirrup:

Minimum Margin Spacing:

390mm

Head Movement Speed:

0.1-1m/sec

Supply Ability:

200set/month

Highlight:

1m/sec CNC Rebar Bending Machine

Ribbed Bar Bender machine PLC control

1m/sec Ribbed Bar Bender machine

Product Description

Double Head Cnc Automatic Rebar Bending Machine 28mm Ribbed Bar Bender

Overview

The vertical CNC steel bar bending center can be used in the construction of high-speed, road and bridge, housing construction, subway and other projects. The raw material is 10-32mm bar. Can process a variety of graphics, using PLC control. The machining accuracy can be controlled within ±2mm.

Touch screen console, easy operation, automatic bending and rapid prototyping.
All steel plate welded box base, strong and durable; equipped with standard reducer to increase the service life.
Rack drive is adopted to ensure accurate product size.
Pneumatic adopts the well-known brand Taiwan AirTAC to ensure the quality, and is equipped with a 5.5KW air compressor to ensure sufficient air supply.
Innovative horseshoe rib forming wheel design, the shortest side of horseshoe can reach 390mm.

Device parameters

rated power	18KW
Air source working pressure	0.8MPa
Maximum bending angle	-120°至180°
Maximum bending length	10m
Minimum curved edge spacing	390mm
Moving speed of machine head	0.5-1m/sec
Fastest bending speed	72°/sec
total weight	4t
Average power consumption	5KW/H
LWH	12m×2m×1.5m
Diameter	10	12	14	16	20	22	25	28	32
Quantity	7	6	5	4	3	2	1	1	1	±≤90°
Movement Control	Servo
Bending Control	Servo
Power source	pneumatic

Equipment advantages

The all-steel welded box body is strong, durable, and will not deform for life.

Using rack drive to ensure accurate product size.

The bending and walking are all controlled by servo motors, the bending angle is accurate, and the forming size is accurate.

Finished product

1m/Sec CNC Rebar Bending Machine Ribbed Bar Bender PLC Control 3

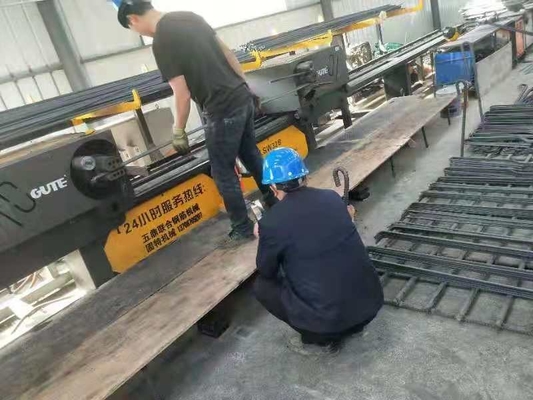

Case

1m/Sec CNC Rebar Bending Machine Ribbed Bar Bender PLC Control 4

Our factory

1m/Sec CNC Rebar Bending Machine Ribbed Bar Bender PLC Control 5

1m/Sec CNC Rebar Bending Machine Ribbed Bar Bender PLC Control 6

Our service

1m/Sec CNC Rebar Bending Machine Ribbed Bar Bender PLC Control 8

Certification

1m/Sec CNC Rebar Bending Machine Ribbed Bar Bender PLC Control 9
