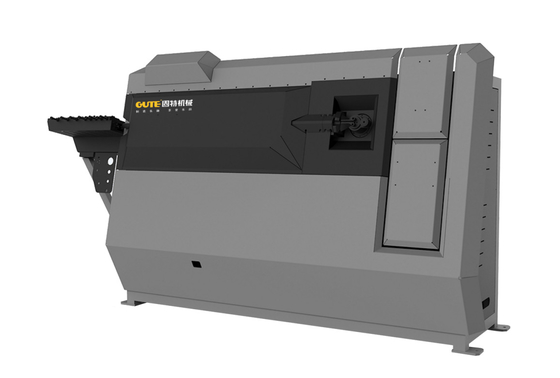

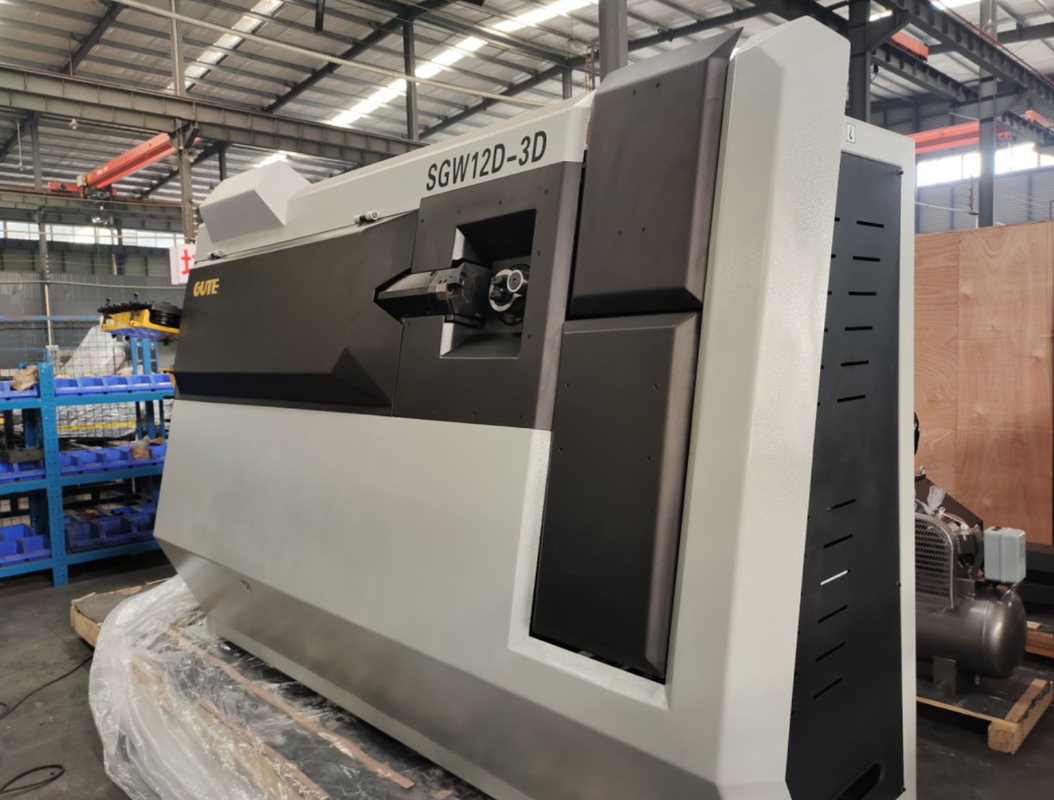

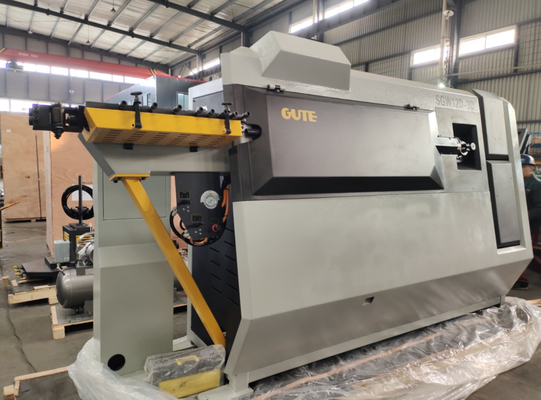

Name: 3D CNC Rebar Stirrup Bending Machine 12mm 5KW/H Constraction Use
Brand: Chengdu Gute Machinery Works Co., Ltd.
SKU: SGW12D-3D
Price: 45,000.00 USD
Availability: InStock

Brand Name:	GUTE
Model Number:	SGW12D-3D
MOQ:	1set
Price:	40000-50000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

MODEL:

SGW12D-3D

SINGLE WIRE BENDING:

5-12mm

DOUBLE WIRE BENDING:

5-10 Mm

BENDING DIRECTION:

Single-direction

WEIGHT:

3.5T

TOTAL POWER:

33KW

Supply Ability:

200set/month

Highlight:

3D CNC rebar Stirrup Bending Machine

rebar stirrup bending machine 5KW/H

3D rebar stirrup bending machine

Product Description

3D CNC Steel Bar Stirrup Bending Machine 12mm Srebar Bender Constraction Use

Overview

This machine can process 3D shapes, horseshoes, stirrup, circles, hooks H-shaped steel, long straight bar and so on hundreds of shapes.
Process 5-12mm single wires for deformed steel coil.
1600 stirrups production per for hour and each batch can be yield up to 8tons.
The electric components are of famous brands such as Schneider the power is provided by servo motor, with high efficiency and accuracy Support multi - language interactive interface, simple operation.
IKO bearings imported from Japan are used in key parts to ensure service life.
Straightening wheel made of alloy steel service life is longer.

Finished products

3D CNC Rebar Stirrup Bending Machine 12mm 5KW/H Constraction Use 0

Device parameters

Single wire bending diameter	5–12mm
Rebar double wire bending diameter	5–10mm
Maximum bending speed	1050°/sec
Total power	33KW
Power consumption	5KW/H
Stirrup length accuracy	±1mm
Rib length accuracy	±5mm
Longest stirrup side	900mm
Total Weight	3.5T

Equipment advantages

3D CNC Rebar Stirrup Bending Machine 12mm 5KW/H Constraction Use 1

Equipped with 22KW high-power servo motor to ensure the smooth operation of tractio.

3D CNC Rebar Stirrup Bending Machine 12mm 5KW/H Constraction Use 2

The adoption of multi-split type blade which ensures a double lifetime co-mpared with normal one piece blade

3D CNC Rebar Stirrup Bending Machine 12mm 5KW/H Constraction Use 3

The touch screen console can store 500 hundreds of graphics and is easy to operate.

Our factory

3D CNC Rebar Stirrup Bending Machine 12mm 5KW/H Constraction Use 4

3D CNC Rebar Stirrup Bending Machine 12mm 5KW/H Constraction Use 5

Our service

3D CNC Rebar Stirrup Bending Machine 12mm 5KW/H Constraction Use 7

Certification

3D CNC Rebar Stirrup Bending Machine 12mm 5KW/H Constraction Use 8

Tags:
