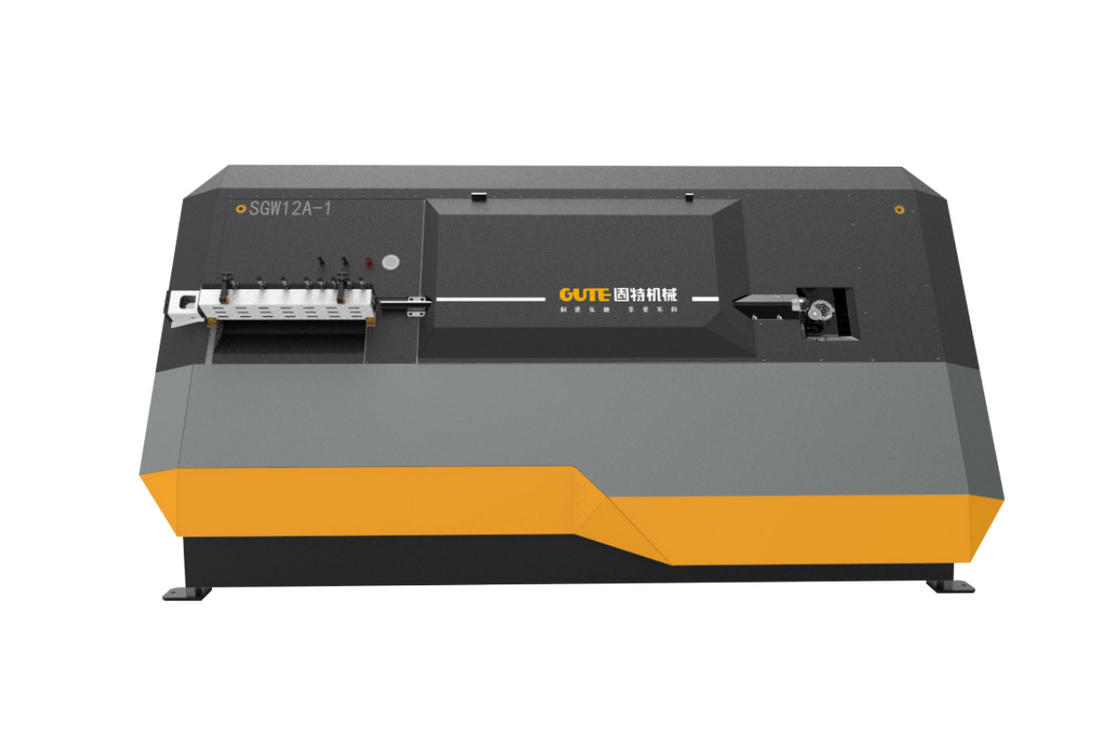

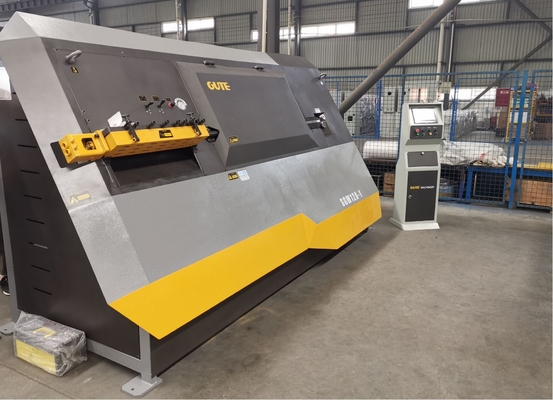

Name: 1.5T Double Wire CNC Stirrup Bending Machine 1600pcs Per Hour
Brand: Chengdu Gute Machinery Works Co., Ltd.
SKU: SGW12A-1
Price: 17,000.00 USD
Availability: InStock

Brand Name:	GUTE
Model Number:	SGW12A-1
MOQ:	1set
Price:	15000-19000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

SINGLE WIRE BENDING:

5-12mm

DOUBLE WIRE BENDING:

5-8 Mm

MAX. LENGTH OF STIRRUP SIDE:

900 Mm

MIN. LENGTH OF STIRRUP SIDE:

140 Mm

BENDING DIRECTION:

Single-direction

WEIGHT:

1.5T

Supply Ability:

200set/month

Highlight:

1.5T CNC Stirrup Bending Machine

Double wire Stirrup Bending Machine 1600pcs/h

1.5T Double wire Stirrup Bending Machine

Product Description

CNC Automatic 6mm Double wire Steel Bar Stirrup Bending Machine Steel Cutter

Overview

1. IKO bearings imported from Japan are used in key parts to ensure service life.
2. it can make stirrups 1600pcs per hour.
3. The the power is provided by servo motor and PLC control.

Finished products

1.5T Double Wire CNC Stirrup Bending Machine 1600pcs Per Hour 0

Device parameters

Single wire bending diameter	5–12mm
Rebar double wire bending diameter	5–8mm
Maximum bending speed	1050°/sec
Rib straightness error	0.02/1m
Total power	31KW
Power consumption	5KW/H
Stirrup length accuracy	±1mm
Rib length accuracy	±5mm
Longest stirrup side	900mm
Shortest stirrup side	140mm
Total Weight	1.5T

Equipment advantages

1.5T Double Wire CNC Stirrup Bending Machine 1600pcs Per Hour 1

Straightening wheel for forging alloy tool steel manufacturing, wear resistance, impact resistance.
Preset wheel plate: the overall use of 30mm thick steel plate, high strength, strong impact load, very durable.

1.5T Double Wire CNC Stirrup Bending Machine 1600pcs Per Hour 2

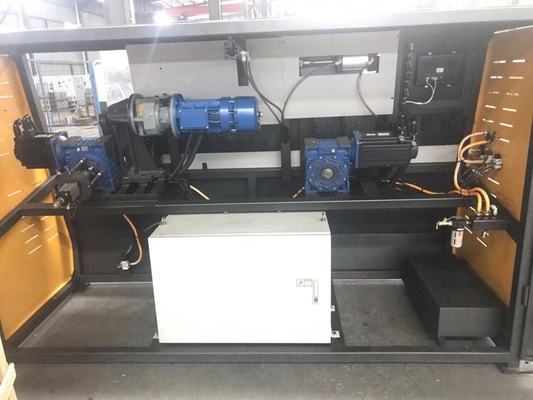

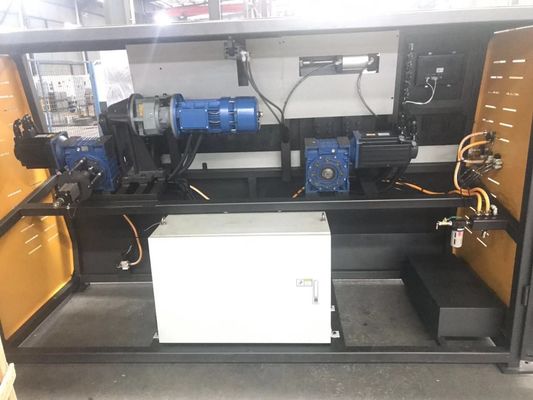

Equipped with 16KW high-power servo motor to ensure the smooth operation of tractio.

1.5T Double Wire CNC Stirrup Bending Machine 1600pcs Per Hour 3

The adoption of multi-split type blade which ensures a double lifetime co-mpared with normal one piece blade

1.5T Double Wire CNC Stirrup Bending Machine 1600pcs Per Hour 4

The touch screen console can store hundreds of graphics and is easy to operate.

Our factory

1.5T Double Wire CNC Stirrup Bending Machine 1600pcs Per Hour 5

1.5T Double Wire CNC Stirrup Bending Machine 1600pcs Per Hour 6

Our service

1.5T Double Wire CNC Stirrup Bending Machine 1600pcs Per Hour 8

Certification

1.5T Double Wire CNC Stirrup Bending Machine 1600pcs Per Hour 9
