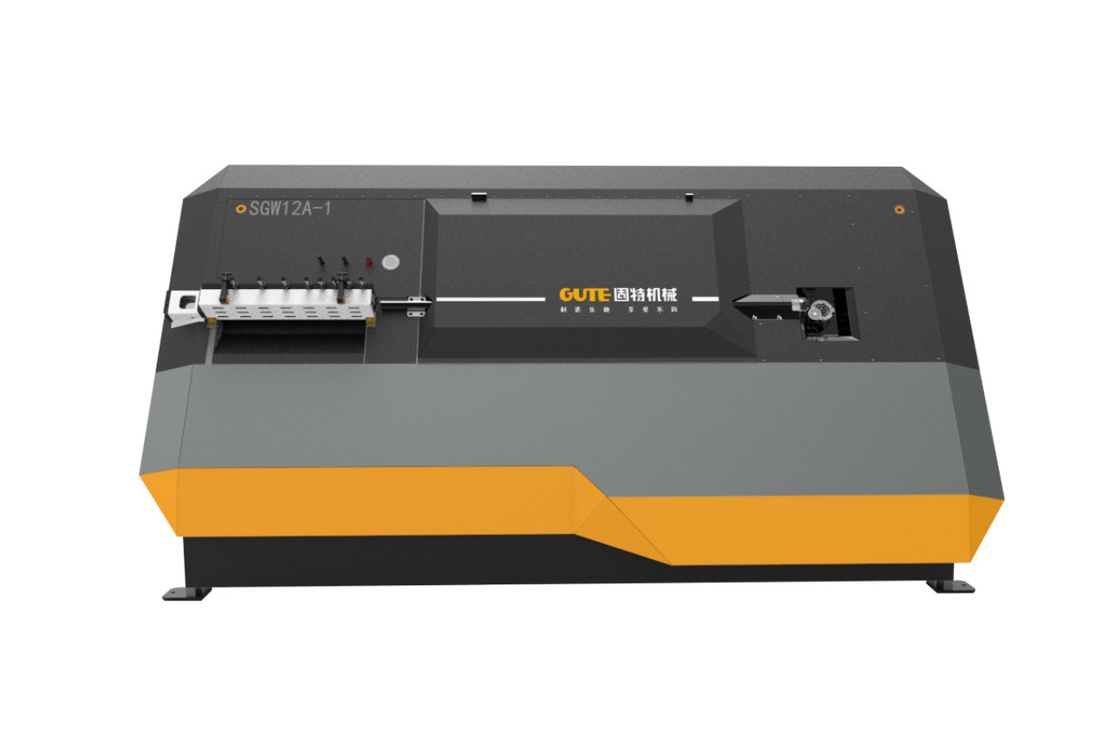

Name: 12mm Steel Wire CNC Stirrup Bending Machine Single Direction
Brand: Chengdu Gute Machinery Works Co., Ltd.
SKU: SGW12A-1
Price: 17,000.00 USD
Availability: InStock

Brand Name:	GUTE
Model Number:	SGW12A-1
MOQ:	1set
Price:	15000-19000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

SINGLE WIRE BENDING:

5-12mm

DOUBLE WIRE BENDING:

5-8 Mm

MAX. LENGTH OF STIRRUP SIDE:

900 Mm

MIN. LENGTH OF STIRRUP SIDE:

140 Mm

BENDING DIRECTION:

Single-direction

LENGTH ACCURACY:

±1mm

L×W×H:

3600×1460×1950 Mm

WEIGHT:

1.5T

Supply Ability:

200set/month

Highlight:

12mm steel wire bending machine

12mm CNC Stirrup Bending Machine

CNC Stirrup Bending Machine single direction

Product Description

Higher Cost Performance 12mm Cnc Stirrup Bending Machine Steel Wire Bender

Overview

1. IKO bearings imported from Japan are used in key parts to ensure service life.
2. 1600pcs/h stirrups and each batch can be yield up to 8tons.
3. The the power is provided by servo motor, with high efficiency and accuracy Support multi - language interactive interface, simple operation

Finished products

12mm Steel Wire CNC Stirrup Bending Machine Single Direction 0

Device parameters

Single wire bending diameter	5–12mm
Rebar double wire bending diameter	5–8mm
Maximum towing speed	100 m/min
Maximum bending speed	1050°/sec
Rib straightness error	0.02/1m
Total power	31KW
Power consumption	5KW/H
Stirrup length accuracy	±1mm
Rib length accuracy	±5mm
Maximum bending angle	±180°
Longest stirrup side	900mm
Shortest stirrup side	140mm
Total Weight	1.5T

Equipment advantages

12mm Steel Wire CNC Stirrup Bending Machine Single Direction 1

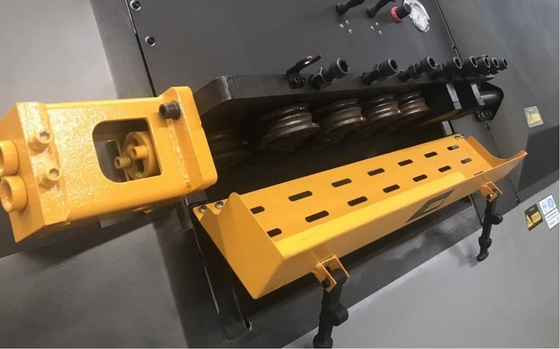

Straightening wheel for forging alloy tool steel manufacturing, wear resistance, impact resistance.
Preset wheel plate: the overall use of 30mm thick steel plate, high strength, strong impact load, very durable.

12mm Steel Wire CNC Stirrup Bending Machine Single Direction 2

Equipped with 16KW high-power servo motor to ensure the smooth operation of tractio.

12mm Steel Wire CNC Stirrup Bending Machine Single Direction 3

The adoption of multi-split type blade which ensures a double lifetime co-mpared with normal one piece blade

12mm Steel Wire CNC Stirrup Bending Machine Single Direction 4

The touch screen console can store hundreds of graphics and is easy to operate.

Our factory

12mm Steel Wire CNC Stirrup Bending Machine Single Direction 5

12mm Steel Wire CNC Stirrup Bending Machine Single Direction 6

Our service

12mm Steel Wire CNC Stirrup Bending Machine Single Direction 8

Certification

12mm Steel Wire CNC Stirrup Bending Machine Single Direction 9
