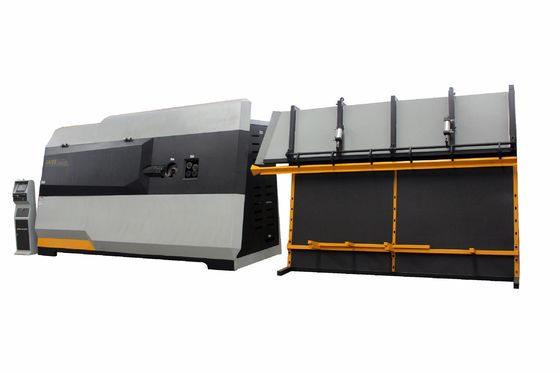

16mm CNC Stirrup Bender Automatic Stirrup Making Machine Multi Feeding

Brand Name: GUTE
Model Number: SGW16D
MOQ: 1set
Price: 65000-70000USD/SET
Packaging Details: plywood case
Payment Terms: L/C, T/T, D/P, D/A
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO 9001:2000
MODEL:
SGW16D
OPERATION:
Automatic Wire Feeding System(CNC)
SINGLE WIRE BENDING:
6-16 Mm
DOUBLE WIRE BENDING:
6-12 Mm
MAX. LENGTH OF STIRRUP SIDE:
1000 Mm
MIN. LENGTH OF STIRRUP SIDE:
90 Mm
BENDING DIRECTION:
Bi-direction
LENGTH ACCURACY:
±1mm
ANGLE ACCURACY:
±1°
L×W×H:
9800×1000×1900mm
WEIGHT:
5.5T
MAX. LENGTH OF HOOL SIDE:
6m
Supply Ability:
200set/month
Highlight:

16mm CNC stirrup bender

,

automatic stirrup making machine Multi feeding

,

16mm automatic stirrup making machine

Product Description
13mm Full Power Cnc Steel Bar Stirrup Bending Machine With Engineer Service
01


Overview

1. With the capacity of making stirrups from 6-16mm reinforced coil wires as well as 12-16mm straight wires
2. Automatic wire feeding system which is easy for operators
3. Multi-feeding bacj system ensures various processing shape available.
4. Newly designed patent cutting blade with longer life time and easy replacement.



02


Scope of application

Mainly used in the construction of housing construction, highways, roads and bridges, subways and other projects.

03


Device parameters

Single wire bending diameter 6–16mm
Rebar double wire bending diameter 6–12mm
Processing material Steel Coil
Maximum towing speed

100 m/min
Maximum bending speed

1050°/sec
Rib straightness error 0.02/1m
Total power 65KW
Power consumption 10KW/H
Stirrup length accuracy ±1mm
Rib length accuracy ±5mm
Angle accuracy ±1°
Maximum bending angle ±180°
Longest stirrup side 1000mm
Shortest stirrup side 90mm
The longest length of the rib 7m
Working temperature -5~40 ℃
Traction control method Servo
Bend control method Servo
Loopback control method Servo
Total Weight 5.5T
04


Equipment advantages

16mm CNC Stirrup Bender Automatic Stirrup Making Machine Multi Feeding 0

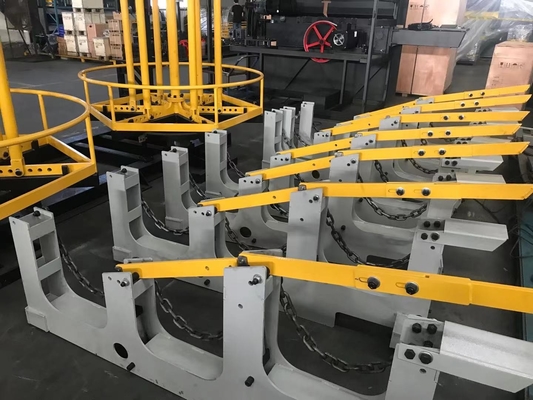

  • Automatic to pick up the Straight bar
  • Max. to straight 9m or customized

16mm CNC Stirrup Bender Automatic Stirrup Making Machine Multi Feeding 1

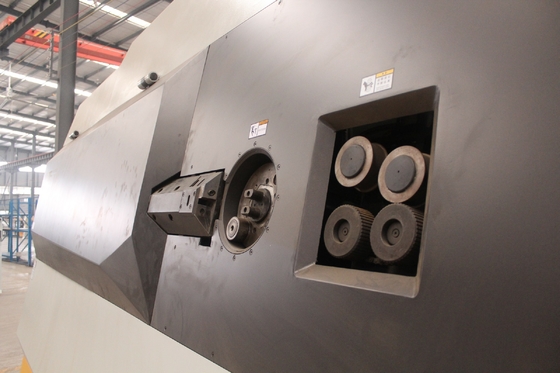

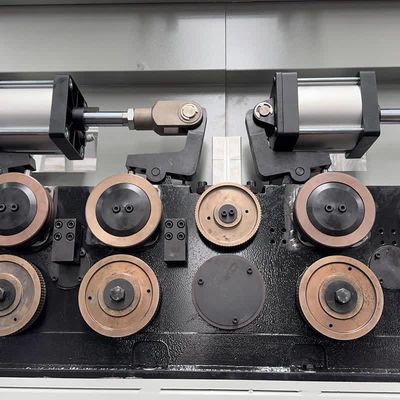

  • Straightening wheel for forging alloy tool steel manufacturing, wear resistance, impact resistance..
  • Preset wheel plate: the overall use of 30mm thick steel plate, high strength, strong impact load, very durable.

16mm CNC Stirrup Bender Automatic Stirrup Making Machine Multi Feeding 2

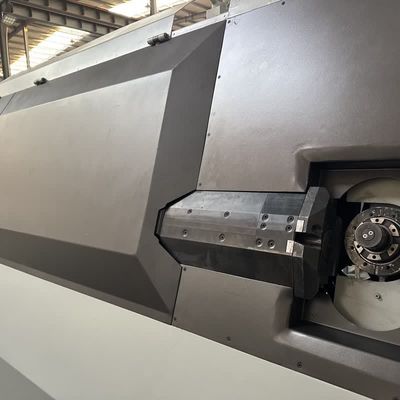

  • The adoption of multi-split type blade which ensures a double lifetime co-mpared with normal one piece blade



16mm CNC Stirrup Bender Automatic Stirrup Making Machine Multi Feeding 3

  • The touch screen console can store hundreds of graphics and is easy to operate.







Our factory

16mm CNC Stirrup Bender Automatic Stirrup Making Machine Multi Feeding 4

16mm CNC Stirrup Bender Automatic Stirrup Making Machine Multi Feeding 5








Our service

16mm CNC Stirrup Bender Automatic Stirrup Making Machine Multi Feeding 7










Certification

16mm CNC Stirrup Bender Automatic Stirrup Making Machine Multi Feeding 8
