Product Details:
Payment & Shipping Terms:
|
| SINGLE WIRE BENDING: | 5-12 Mm | DOUBLE WIRE BENDING: | 5-8 Mm |
|---|---|---|---|
| MAX. LENGTH OF STIRRUP SIDE: | 900 Mm | MIN. LENGTH OF STIRRUP SIDE: | 90 Mm |
| BENDING DIRECTION: | Bi-direction | TRACTION SERVICE MOTOR POWER: | 18KW |
| BENDING SERVICE MOTOR POWER: | 7.5KW | CUTTING MOTOR POWER: | 4 KW |
| TOTAL POWER: | 31KW | AERAGE ELECTRIC CONSUMPTION: | 5 KW/H |
| LENGTH ACCURACY: | ±1mm | ANGLE ACCURACY: | ±1° |
| High Light: | Steel coil Automatic Stirrup Bending Machine,rebar stirrup bender 100m/min,hook bending machine 100m/min |
||

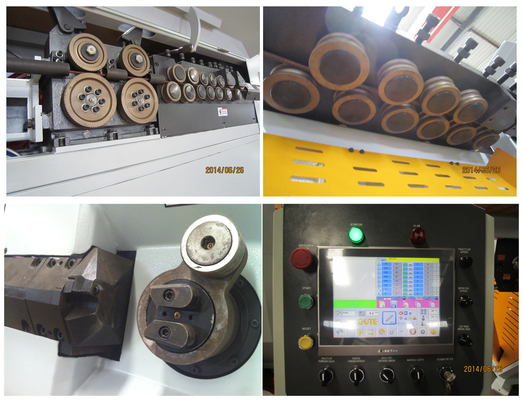

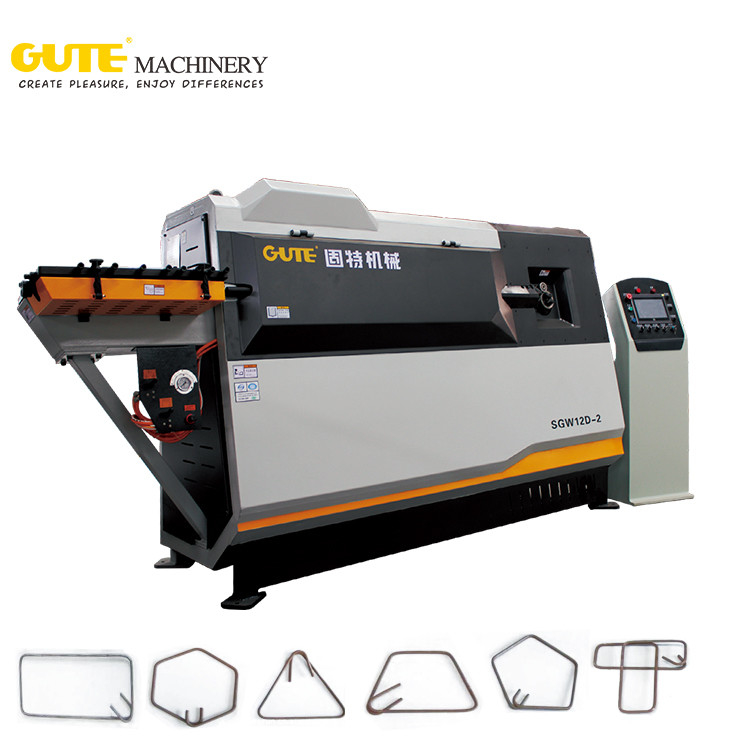

Overview CNC hoop bending machine can be used for one-time forming of stirrups, hooks, and special-shaped parts. It can automatically complete the straightening, sizing, bending, cutting and counting functions of rebar and round steel. The equipment uses a numerical control system, and controls the servo system through a touch screen and PLC. The finished stirrup has high processing accuracy, stable and reliable quality, and has strong graphic storage capabilities. It can save a lot of labor and waste. Improving processing efficiency is an indispensable part of modern construction buildings, and it is also an intelligent equipment that meets national standards. Scope of application Mainly used in the construction of housing construction, highways, roads and bridges, subways and other projects. 03 Device parameters Equipment advantages The raw material pre-aligning mechanism is composed of 14 straightening wheels. The spacing of each straightening wheel can be adjusted and controlled by bolts. The straightening wheel has double grooves and can be double-line straightened. At the same time, the straightening wheel is made of forging alloy tool steel. , Wear resistance and impact resistance. The square-head transition connection is adopted, and the strength is 12 times that of the traditional flat key connection. The traction wheel is made of forged alloy tool steel, which is resistant to wear and impact. The split thick blade design is bolted to the blade seat, and the thickness reaches 40mm. It is quick to replace and easy to maintain, which greatly reduces the maintenance cost of the equipment. The touch screen console can store hundreds of graphics and is easy to operate. Our factory Our service Certification
Single wire bending diameter
5–12mm
Double wire bending diameter
5–8mm
Processing material
Steel coil
Maximum towing speed
75-100 m/min
Maximum towing speed
1050°/sec
Rib straightness error
0.02/m
Total power
31KW
Power consumption
5KW/H
Bending direction
Bi-direction
Stirrup length accuracy
±1mm
Rib length accuracy
±5mm
Angle accuracy
±1°
Maximum bending angle
±180°
Maximum bending angle
900mm
Shortest stirrup side
90mm
Working temperature
-5~40 ℃
Traction control method
Servo
Bend control method
Servo
Loopback control method
Servo
Total Weight
3.3T
