Capping Beam Truss Girder Welding Machine 16.9m Automatic Welding Line

Brand Name:	GUTE
Model Number:	GZS190
MOQ:	1set
Price:	48000-58000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

Model:

GZS190

Max.Welding Length:

16.9m

Max. Welding Width:

Workingstation:

Double

Total Power:

Machine Length:

Supply Ability:

50set/month

Highlight:

16.9m Automatic welding line

Capping Beam Truss Girder Welding Machine

16.9m Automatic welding line

Product Description

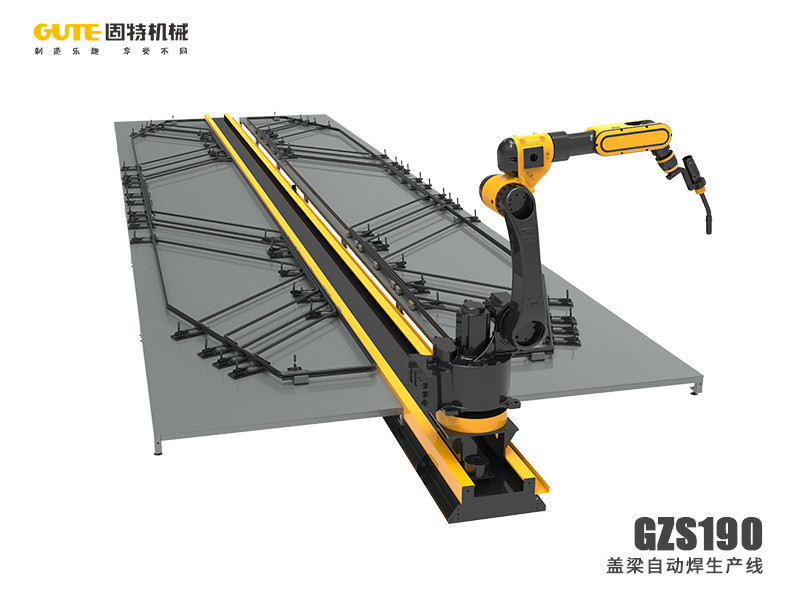

16.9m Capping Beam Automatic welding line Double station welding

Overview

Cover beam automatic welding production line is suitable for automatic welding of bridge cover beam steel bars. This production line can replace traditional manual welding. The traditional four-person combined welding is reduced to only two people, which reduces labor intensity and reduces welding occupational hazards. The production line uses robot carbon dioxide shielded welding instead of welding rod welding, which can greatly improve welding quality and effectively reduce welding defects such as slag inclusion, cracking, and deformation. During the welding process of the robot, as long as the welding parameters and motion trajectory are given, the robot will repeat the action accurately and the welding quality is stable. However, during manual welding, the welding speed and the elongation of the welding wire are changed, and it is difficult to achieve the quality. Uniformity. At the same time, Gute adopts an innovative dual-station robot for automatic welding. At the same time as the robot is welding, it is manually clamped in another station, giving full play to the advantages of the robot's continuous work and greatly improving work efficiency.

Scope of application

Mainly used in the construction of highways, roads and bridges, etc.

Device parameters

Max.Welding length	16.9m
Machine length	20m
Max.Welding lenght	1.9m
Workingstation	Double
Welding movement method	Drive
Transfer method	Precision rack drive
Welding method	Robot automatic welding
Walking speed	15m/min
Walking accuracy	±0.5mm
Power	35KW

Equipment advantages

Double welding stations can realize continuous welding production.

The robot movement adopts servo motor and high-precision rack transmission to ensure transmission accuracy and welding point accuracy.

The welding tool adopts a combination of plate and section steel, which can be fine-tuned according to the size of the cover beam.
