Rebar Feeder
>
12m Steel Bar CNC Automatic Rebar Feeding Machine PLC Control

12m Steel Bar CNC Automatic Rebar Feeding Machine PLC Control

Brand Name: GUTE
Model Number: GSL-40
MOQ: 1set
Price: 20000-25000USD/SET
Packaging Details: plywood case
Payment Terms: L/C, T/T, D/P, D/A
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO 9001:2000
Model:
GSL-40
Feeding Speed:
16/min
Machine Weight:
2.6t
Total Power:
15kw
Long X Wide X High:
±5mm
Shear Frequency:
12.9*2*1.75m
Supply Ability:
50set/month
Highlight:

12m CNC Automatic Rebar Feeding Machine

,

12m steel bar feeding machine

,

steel bar feeding machine PLC Control

Product Description



Cnc Automatic Rebar Feeding Machine feeding Robot 14mm steel bar feeding machine
01


Overview

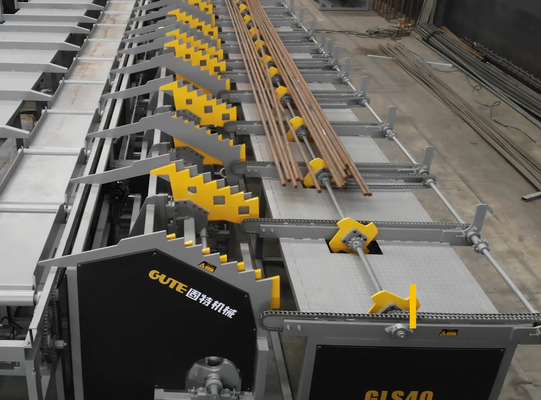

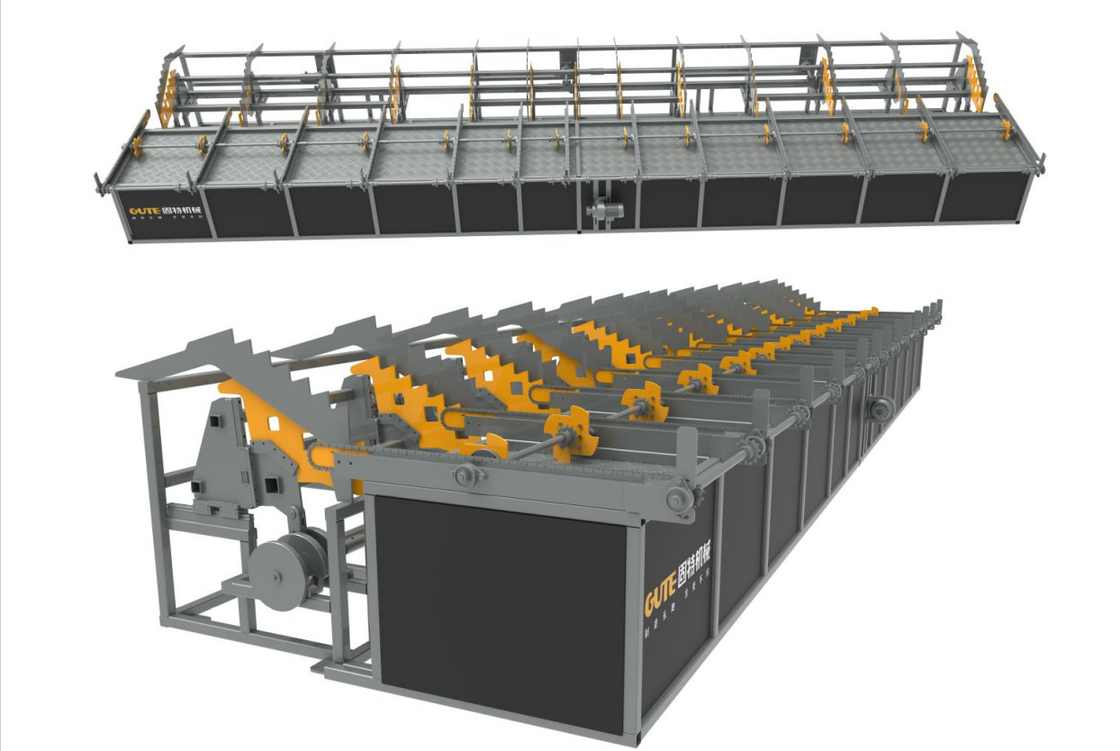

The CNC automatic rebar feeding machine is a machine and equipment that automatically divides and feeds materials. After starting, the rebar After the cam distributing mechanism, the staggered steel bars are straightened out, and then sent to the stepped rolling mechanism to complete automatic feeding, one by one, when the number of steel bars required for the setting is reached, the steel bars are automatically fed to the configured machinery and equipment. It is processed on the upper part to complete the feeding work of the steel bars. It is fully automated on the way without manual assistance; the labor intensity is low, the efficiency is high, and the work is safer.

02


Scope of application

Mainly used in the construction of high-speed, road and bridge, railway, subway and other projects.





03


Device parameters

Rebar diameter Φ12-φ40mm

Feeding speed



16/min

Rebar length



12m
rated power 15KW

Total Weight



2.6T
Overall size 12*2.8*1.6m
04


Equipment advantages

12m Steel Bar CNC Automatic Rebar Feeding Machine PLC Control 0

Cam material distributing mechanism: Automatically disperse materials, disperse raw materials and disordered steel bars, and automatically disperse materials;

12m Steel Bar CNC Automatic Rebar Feeding Machine PLC Control 1

Ladder rubbing board feeding mechanism: automatic quantitative feeding and distributing purpose according to system control;

12m Steel Bar CNC Automatic Rebar Feeding Machine PLC Control 2

Quantitative feeder: one-key operation, automatic distance adjustment, to achieve the purpose of automatic quantitative feed, according to the control system, control the quantity, and carry out the purpose of feed.








Our factory

12m Steel Bar CNC Automatic Rebar Feeding Machine PLC Control 3

12m Steel Bar CNC Automatic Rebar Feeding Machine PLC Control 4








Our service

12m Steel Bar CNC Automatic Rebar Feeding Machine PLC Control 6










Certification

12m Steel Bar CNC Automatic Rebar Feeding Machine PLC Control 7
