Product Details:
Payment & Shipping Terms:
|
| Model: | LSW32 | Rated Power: | 18KW |
|---|---|---|---|
| Gas Source Wor: | 0.8MPa | Maximum Bending Angle: | -120°~180° |
| Longest Stirrup: | 10.8m | Minimum Margin Spacing: | 740mm |
| Head Movement Speed: | 0.5-1m/sec | Fastest Bending Speed: | 72°/sec |
| L*W*H: | 12m×2m×1.6m | Max Bending: | 32mm |
| High Light: | 0.8MPa CNC Rebar Hoop Bending Machine,0.8MPa Rebar Hoop Bending Machine,LSW32 CNC bar bending Servo Control |
||

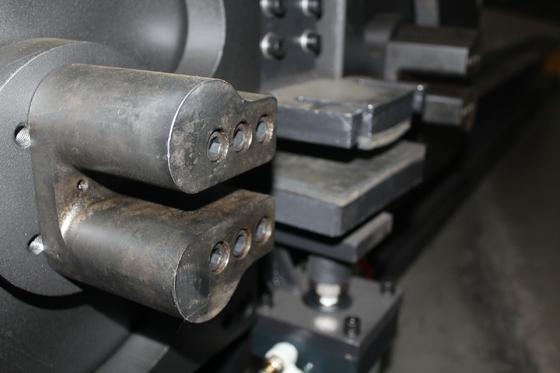

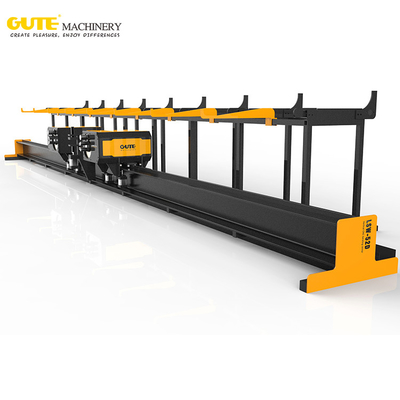

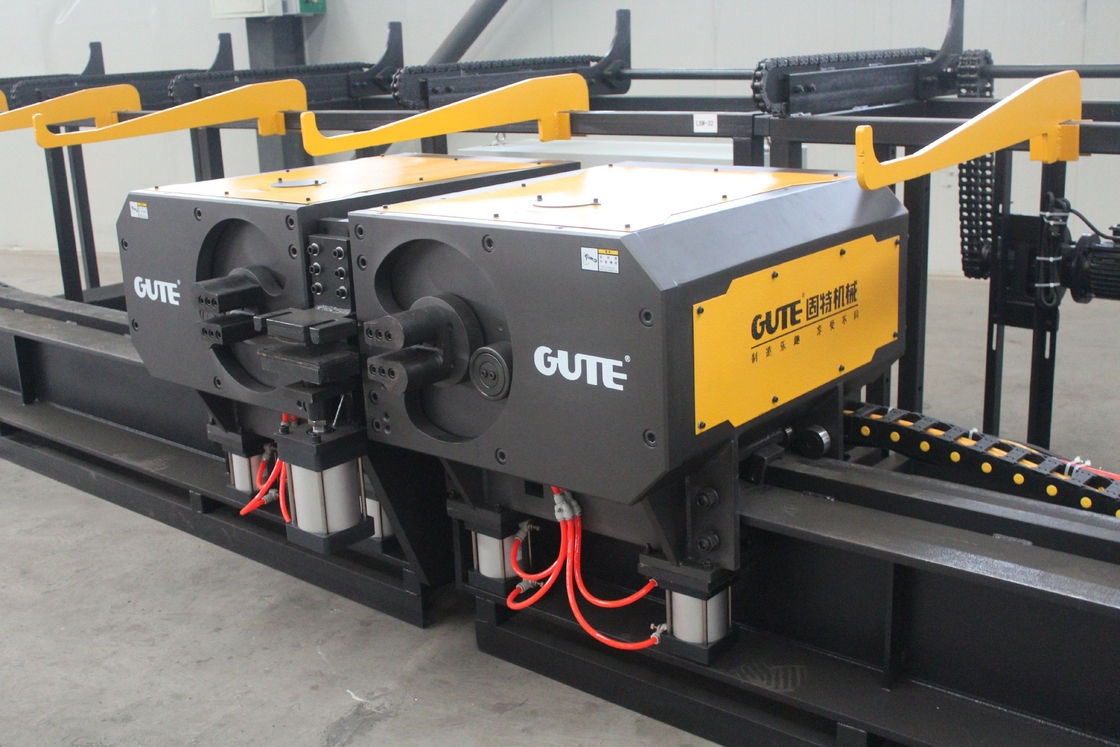

Overview The vertical CNC steel bar bending center can be used in the construction of high-speed, road and bridge, house construction, subway and other projects. The raw material is 10-32mm bar material. It can process a variety of graphics. It adopts PLC control. Intelligent CNC Operation reduces labor intensity and labor cost. The system can store 100 shapes, which can be called during processing. Innovative fixture design makes it more convenient to bend horseshoe tendons. Scope of application Mainly used in the construction of high-speed, road and bridge, housing construction, railway and other projects. Device parameters Equipment advantages The forming wheel can be customized to bend complex steel bar patterns. The all-steel welded box body is strong, durable, and will not deform for life. Using rack drive to ensure accurate product size. The bending and walking are all controlled by servo motors, the bending angle is accurate, and the forming size is accurate. Case Our factory Our service Certification
rated power
18KW
Air source working pressure
0.8MPa
Maximum bending angle
-120°至180°
Maximum bending angle
10.8m
Minimum curved edge spacing
740mm
Moving speed of machine head
0.5-1m/sec
Fastest bending speed
72°/sec
total weight
4.8t
Average power consumption
5KW/H
L*W*H
12m×2m×1.6m
Diameter
10
12
14
16
20
22
25
28
32
Quantity
7
6
5
4
3
2
1
1
1
±≤90°
Movement Control
Servo
Bending Control
Servo
Power source
pneumatic
