CNC Rebar Bending Machine

0.8MPa CNC Rebar Bending Machine 380V 440 220V Rebar Stirrup Bender

All Category

Automatic Stirrup Bending Machine

Automatic Rebar Bending Machine

Rebar Straightening And Cutting Machine

Mr. Jurrivh

sales5@cdgute.com

008618349380338

Contact Now

0.8MPa CNC Rebar Bending Machine 380V 440 220V Rebar Stirrup Bender

Brand Name:	GUTE
Model Number:	LSW-32
MOQ:	1set
Price:	22000-27000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

Model:

LSW-32

Rated Power:

Gas Source Wor:

0.8MPa

Maximum Bending Angle:

-120°~180°

Longest Stirrup:

10.8m

Minimum Margin Spacing:

750mm

Head Movement Speed:

0.5-1m/sec

L*W*H:

12m×2m×1.6m

Supply Ability:

200set/month

Highlight:

0.8MPa CNC Rebar Bending Machine

0.8MPa Rebar Stirrup Bender

380V 440 220V Rebar Stirrup Bender

Product Description

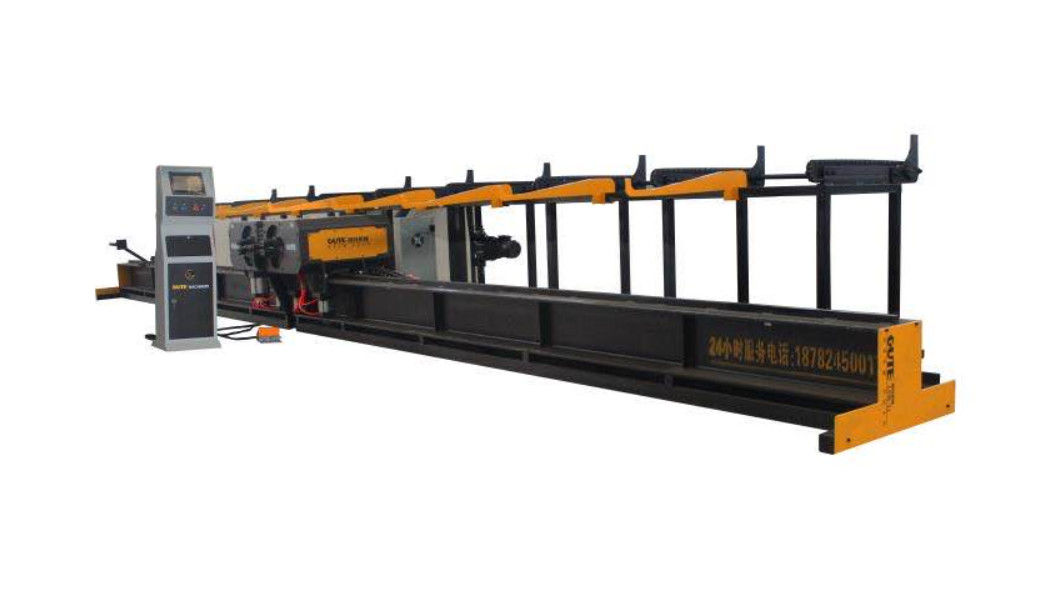

32mm Rebar Cnc Hook Bending Machine Rebar Bender Double Head Beder 380V/440/220V

Overview

The vertical CNC steel bar bending center can be used in the construction of high-speed, road and bridge, house construction projects. The raw material is 10-32mm bar material. It can process a variety of graphics. It adopts PLC control. The processing accuracy can be controlled within ±2mm. Intelligent CNC Operation reduces labor intensity and labor cost. The system can store 100 shapes, which can be called during processing.

Scope of application

Mainly used in the construction of high-speed, road and bridge, housing construction, railway and other projects.

Device parameters

rated power	18KW
Air source working pressure	0.8MPa
Maximum bending angle	-120°至180°
Maximum bending angle	10.8m
Minimum curved edge spacing	750mm
Moving speed of machine head	0.5-1m/sec
Fastest bending speed	72°/sec
total weight	4.8t
Average power consumption	5KW/H
LWH	12m×2m×1.6m
Diameter	10	12	14	16	20	22	25	28	32
Quantity	7	6	5	4	3	2	1	1	1	±≤90°
Movement Control	Servo
Bending Control	Servo
Power source	pneumatic

Equipment advantages

The forming wheel can be customized to bend complex steel bar patterns.

The all-steel welded box body is strong, durable, and will not deform for life.

Using rack drive to ensure accurate product size.

The bending and walking are all controlled by servo motors, the bending angle is accurate, and the forming size is accurate.

Finished product

0.8MPa CNC Rebar Bending Machine 380V 440 220V Rebar Stirrup Bender 4

Case

0.8MPa CNC Rebar Bending Machine 380V 440 220V Rebar Stirrup Bender 5

Our factory

0.8MPa CNC Rebar Bending Machine 380V 440 220V Rebar Stirrup Bender 6

0.8MPa CNC Rebar Bending Machine 380V 440 220V Rebar Stirrup Bender 7

Our service

0.8MPa CNC Rebar Bending Machine 380V 440 220V Rebar Stirrup Bender 9

Certification

0.8MPa CNC Rebar Bending Machine 380V 440 220V Rebar Stirrup Bender 10

Tags:

18mm CNC Rebar Bending Machine

32mm CNC Rebar Bending Machine

LSW32 CNC bar bending Servo Control
