Product Details:
Payment & Shipping Terms:
|
| Model: | SJT50 | Sawing Length: | 1.5~12m |
|---|---|---|---|
| Sawing Diameter: | 16~50mm | Max Length Of Raw Materials: | 12m |
| Sawing Frequency: | ≤2.5 Times/min | Sawing Width: | 480mm |
| High Light: | 480mm Steel Bar Shear Sawing Cutting Line,Steel Bar Shear Sawing Cutting Line 2.5 times/min,480mm CNC Sawing Cutting Line |
||

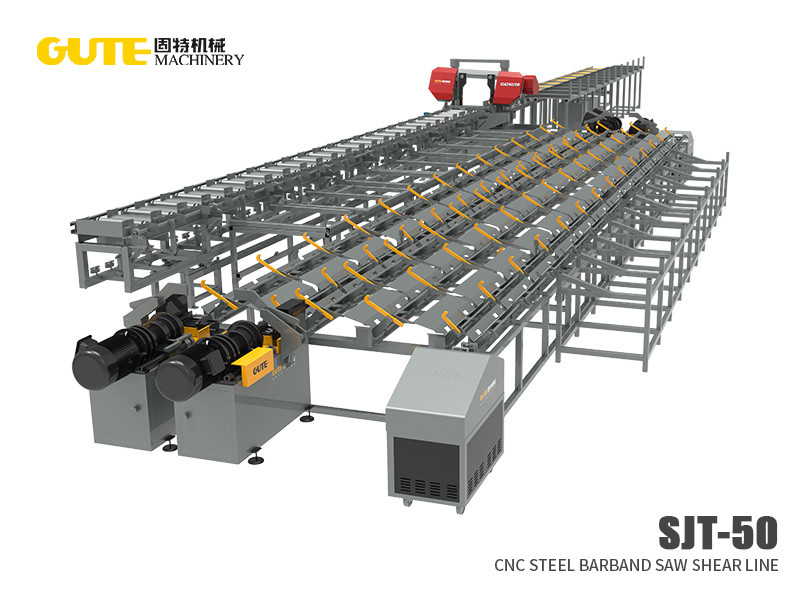

Overview Gute CNC sawing and threading production line is an intelligent processing equipment that integrates automatic sawing, upsetting, threading and polishing of steel bars. Rebar sawing—— Rebar upsetting-rebar threading-port grinding can be operated by one person, and one person can be configured to receive the material, which reduces the work intensity of workers and is safer and more secure. Take double-end threading 9 meters long 32 rebar as an example 8 hours in a shift, 1 person can process 1200-1500 thread ends (about 20 tons of steel bar processing capacity), which is an efficient choice for steel bar processing. Scope of application Mainly used in the construction of high-speed, road and bridge, housing construction, railway and other projects Equipment advantages A special design is adopted to protect the sensor, prevent the steel bar from colliding with the sensor, and effectively extend the service life of the sensor. Hydraulic control of the sawing feed, stepless adjustable workpiece clamping adopts double vise clamping, so that the sawing is more stable. Through clever design, the automatic and precise positioning of the steel bar can be realized, so that the automatic positioning of the wire can be realized. The whole body is made of corrosion-resistant plated pipes, welded and formed by a special process, with large ventilation, and the cylinder reacts quickly and is not easy to rust. Device parameters Our service Certification
Sawing length
Sawing diameter
Transmission speed
Max length of raw materials
Sawing frequency
Rated power
1.5~12m
16~50mm
0~50m/min
12m
≤2.5 times/min
56 kw
Sawing machine model
Sawing width
Sawing speed
Threading diameter
Thread length
CNC Threading Machine
GB4240/60
480mm
Adjustable
16~40mm
80mm
2 sets
Sanding machine
Sander model
Belt size
Upsetting machine
Upsetting machine model
Upsetting steel bar diameter
2 sets
DS-2100
2100*76mm
2 sets
HDCJ-32S
Ф16-32mm
Sawing diameter
Ф50mm
Ф40mm
Ф32mm
Ф28mm
Ф25mm
Ф20mm
Ф16mm
Sawing quantity
7
10
12
13
15
18
22
