50m/Min Rebar Saw Shear Line CNC Sawing Cutting GB4240

Brand Name:	GUTE
Model Number:	SJT50
MOQ:	1set
Price:	40000-60000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

Model:

SJT50

Sawing Length:

1.5~12m

Sawing Diameter:

16~50mm

Transmission Speed:

0~50m/min

Max Length Of Raw Materials:

Sawing Frequency:

≤2.5 Times/min

Sawing Width:

480mm

Threading Diameter:

16~40mm

Supply Ability:

200set/month

Highlight:

50m/min Rebar Saw Shear Line

50m/min CNC Sawing Cutting Line

CNC Sawing Cutting Line GB4240

Product Description

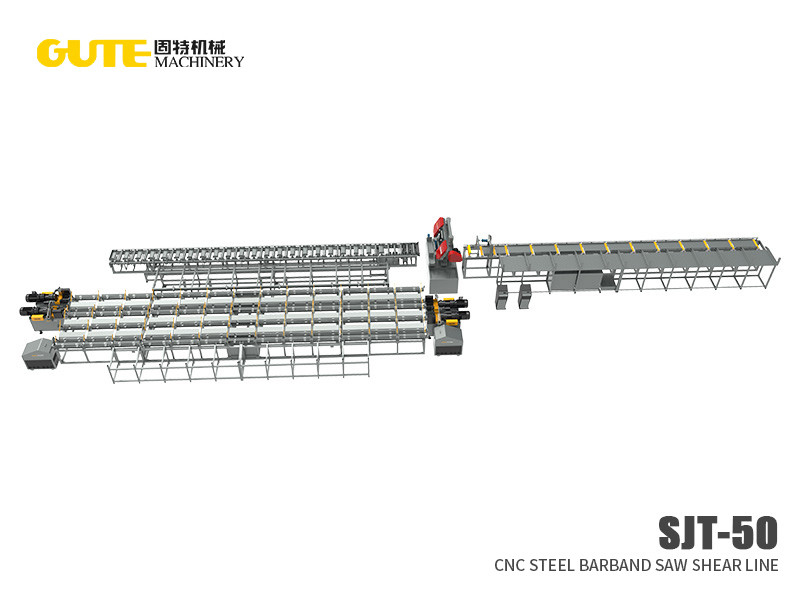

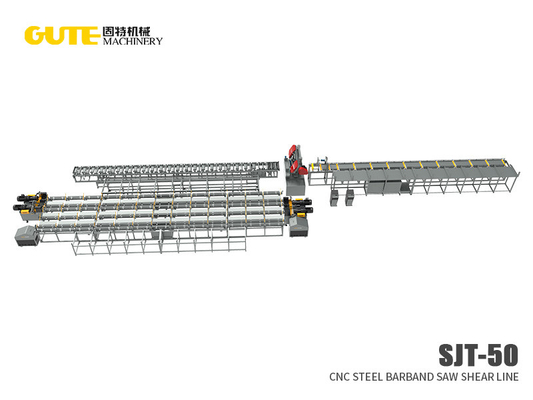

50mm Cnc Steel Bar Band Saw Shear Line Sawing Machine

Overview

Gute CNC sawing and threading production line is an intelligent processing equipment that integrates automatic sawing, upsetting, threading and polishing of steel bars. This equipment can automatically saw steel bars to the required length according to requirements. , And arrange the bar and steel bars with good materials, and realize the automatic upsetting, threading, and grinding process. It has the characteristics of high cutting efficiency, fine cut length, energy saving and material saving, and simple operation. Rebar sawing—— Rebar upsetting-rebar threading-port grinding can be operated by one person, and one person can be configured to receive the material, which reduces the work intensity of workers and is safer and more secure. Take double-end threading 9 meters long 32 rebar as an example 8 hours in a shift, 1 person can process 1200-1500 thread ends (about 20 tons of steel bar processing capacity), which is an efficient choice for steel bar processing.

Scope of application

Mainly used in the construction of high-speed, road and bridge, housing construction, railway and other projects

Equipment advantages

A special design is adopted to protect the sensor, prevent the steel bar from colliding with the sensor, and effectively extend the service life of the sensor.

Hydraulic control of the sawing feed, stepless adjustable workpiece clamping adopts double vise clamping, so that the sawing is more stable.

Through clever design, the automatic and precise positioning of the steel bar can be realized, so that the automatic positioning of the wire can be realized.

The whole body is made of corrosion-resistant plated pipes, welded and formed by a special process, with large ventilation, and the cylinder reacts quickly and is not easy to rust.

Device parameters

Sawing length	Sawing diameter		Transmission speed		Max length of raw materials			Sawing frequency		Rated power
1.5~12m	16~50mm		0~50m/min		12m			≤2.5 times/min		56 kw
Sawing machine model	Sawing width		Sawing speed		Threading diameter			Thread length		CNC Threading Machine
GB4240/60	480mm		Adjustable		16~40mm			80mm		2 sets
Sanding machine	Sander model		Belt size		Upsetting machine			Upsetting machine model		Upsetting steel bar diameter
2 sets	DS-2100		2100*76mm		2 sets			HDCJ-32S		Ф16-32mm
Sawing diameter	Ф50mm	Ф40mm		Ф32mm		Ф28mm	Ф25mm		Ф20mm		Ф16mm
Sawing quantity	7	10		12		13	15		18		22

50m/Min Rebar Saw Shear Line CNC Sawing Cutting GB4240 4

50m/Min Rebar Saw Shear Line CNC Sawing Cutting GB4240 5

Our service

50m/Min Rebar Saw Shear Line CNC Sawing Cutting GB4240 6

Certification

50m/Min Rebar Saw Shear Line CNC Sawing Cutting GB4240 7
