Product Details:
Payment & Shipping Terms:
|
| Single Wire Processing (rebar): | 5-12mm | Double Wire: | 5-10 |
|---|---|---|---|
| Rebar Processing Length: | 0-9000mm | Maximum Traction Speed: | 100m/min |
| Reinforcement Length Processing Accuary: | ±2mm/m | L*W*H: | 12.9m×2m×1.75m |
| High Light: | 12mm Steel Bar Straightening And Cutting Machine,CNC Steel Bar Straightening And Cutting Machine,steel bar straight cutter 100m/min |
||

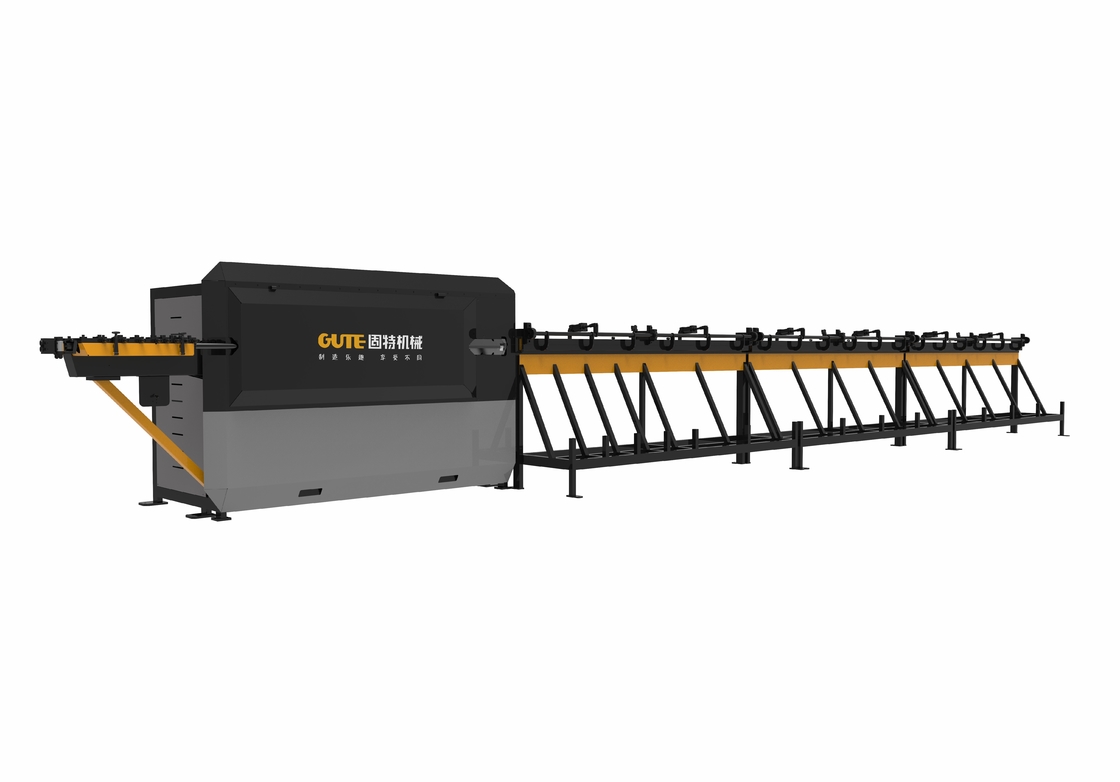

Overview The two-line high-speed straightening machine can automatically complete the straightening, sizing and cutting of steel bars. The equipment uses a numerical control system and controls the servo system through a touch screen and PLC. The quality is stable and reliable. It is simple to operate and convenient to set up. It can save a lot of labor, save waste, and improve processing efficiency. Scope of application Mainly used in the construction of high-speed, road and bridge, housing construction, railway and other projects Equipment advantages Equipped with 24KW servo motor to ensure the smooth running of traction. The lower straightening wheels are all powered, not easy to slip, and more precise in size. The traction wheels and straightening wheels are made of forged alloy tool steel, which is resistant to wear and impact. The split thick blade design is bolted to the blade seat, and the thickness reaches 40mm. It is quick to replace and easy to maintain, which greatly reduces the maintenance cost of the equipment. The air compressor adopts the well-known brand Airtac from Taiwan to ensure the service life. The air compressor adopts the 7.5KW red five-ring high-power, large-tank air compressor to ensure the stable and sufficient air source of the equipment. The standard 9-meter slab bar material rack meets the requirements of special slab bar production. At the same time, it adopts a multi-stroke return device to process more graphics. Device parameters Our factory Our service Certification
Single wire processing (rebar)
5-12mm
Double wire processing (rebar)
5-10mm
Rebar processing length
0-9000mm
Maximum towing speed
100m/min
Rebar length processing accuracy
±2mm/m
Rebar straightness error
0.02/1m
Total weight (tons)
3.5t
L*W*H
12.9m×2m×1.75m
Power
35.5KW
