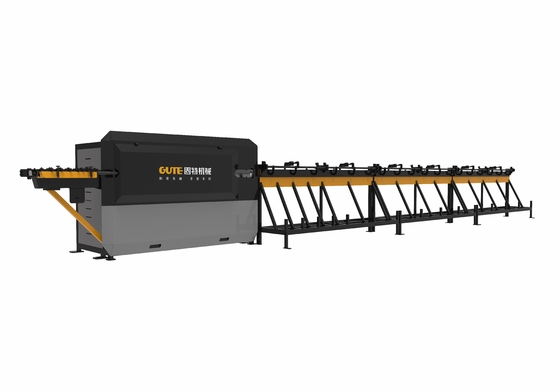

100m Rebar Straightening And Cutting Machine High Speed

Brand Name:	GUTE
Model Number:	GST5-12
MOQ:	1set
Price:	20000-24000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

Name:

GST5-12

Single Wire Processing (rebar):

5-12mm

Double Wire:

Rebar Processing Length:

0-9000mm

Maximum Traction Speed:

100m/min

Reinforcement Length Processing Accuary:

±2mm/m

Supply Ability:

200set/month

Highlight:

100m Rebar Straightening And Cutting Machine

100m rebar straightener machine

High Speed rebar straightener machine

Product Description

High Speed Double wire 12mm steel bar Straight-Cutting Machine max 100m

Overview

The two-line high-speed straightening machine can automatically complete the straightening, sizing and cutting of steel bars. The equipment uses a numerical control system and controls the servo system through a touch screen and PLC. The quality is stable and reliable, and it has a powerful graphic storage capacity. It is simple to operate and convenient to set up. It can save a lot of labor, save waste, and improve processing efficiency.

Scope of application

Mainly used in the construction of high-speed, road and bridge, housing construction, railway and other projects

Equipment advantages

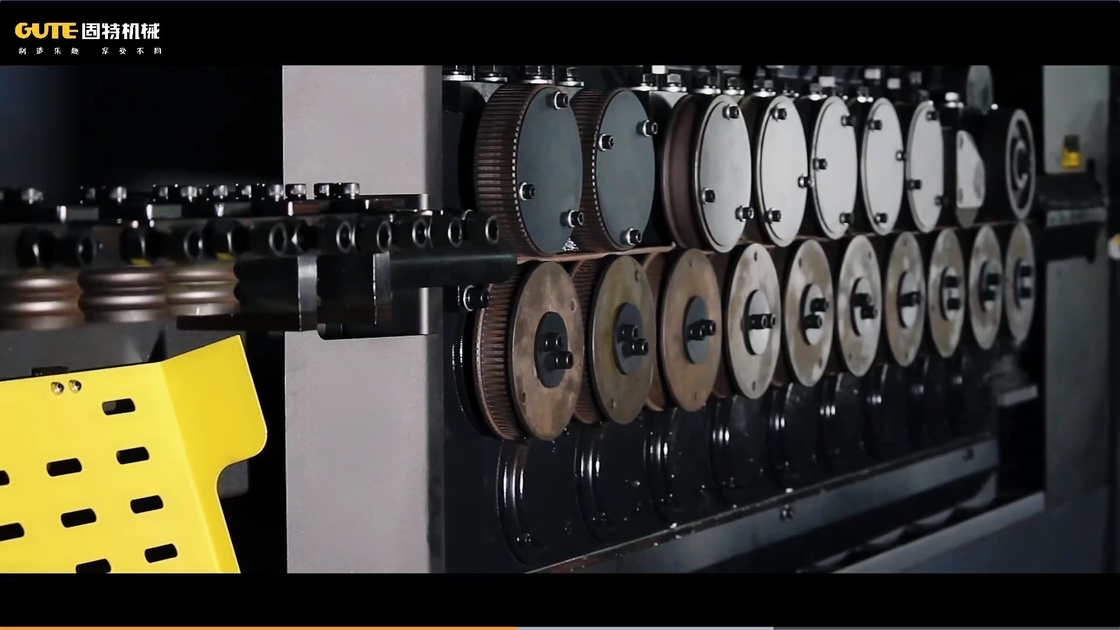

Equipped with 24KW servo motor to ensure the smooth running of traction. The lower straightening wheels are all powered, not easy to slip, and more precise in size. The traction wheels and straightening wheels are made of forged alloy tool steel, which is resistant to wear and impact.

The split thick blade design is bolted to the blade seat, and the thickness reaches 40mm. It is quick to replace and easy to maintain, which greatly reduces the maintenance cost of the equipment.

The air compressor adopts the well-known brand Airtac from Taiwan to ensure the service life. The air compressor adopts the 7.5KW red five-ring high-power, large-tank air compressor to ensure the stable and sufficient air source of the equipment.

The standard 9-meter slab bar material rack meets the requirements of special slab bar production. At the same time, it adopts a multi-stroke return device to process more graphics.

Device parameters

Single wire processing (rebar)	5-12mm
Double wire processing (rebar)	5-10mm
Rebar processing length	0-9000mm
Maximum towing speed	100m/min
Rebar length processing accuracy	±2mm/m
Rebar straightness error	0.02/1m
Total weight (tons)	3.5t
LWH	12.9m×2m×1.75m
Power	35.5KW

Our factory

100m Rebar Straightening And Cutting Machine High Speed 4

100m Rebar Straightening And Cutting Machine High Speed 5

Our service

100m Rebar Straightening And Cutting Machine High Speed 6

Certification

100m Rebar Straightening And Cutting Machine High Speed 7
