2.8m/Min Pile Cage Welding Machine 15T Automatic Cage Making Machine

Brand Name:	GUTE
Model Number:	SGH15-12
MOQ:	1set
Price:	32000-39000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

Model:

SGH15-12

Cage Diameter:

300mm-1500mm

Max. Cage Length:

12m(or Customized)

Cage Weight:

5500KG

Coil Bar Diameter:

5-14mm

Main Rebar Diamete:

12-40 Mm

L*W*H:

28000×3700×2500mm

Total Weight:

Maximum Walking Speed:

2.8m/min

Maximum Rotation Speed:

4r/min

Supply Ability:

200set/month

Highlight:

2.8m/min Pile Cage Welding Machine

2.8m/min Automatic Cage Making Machine

15T Automatic Cage Making Machine

Product Description

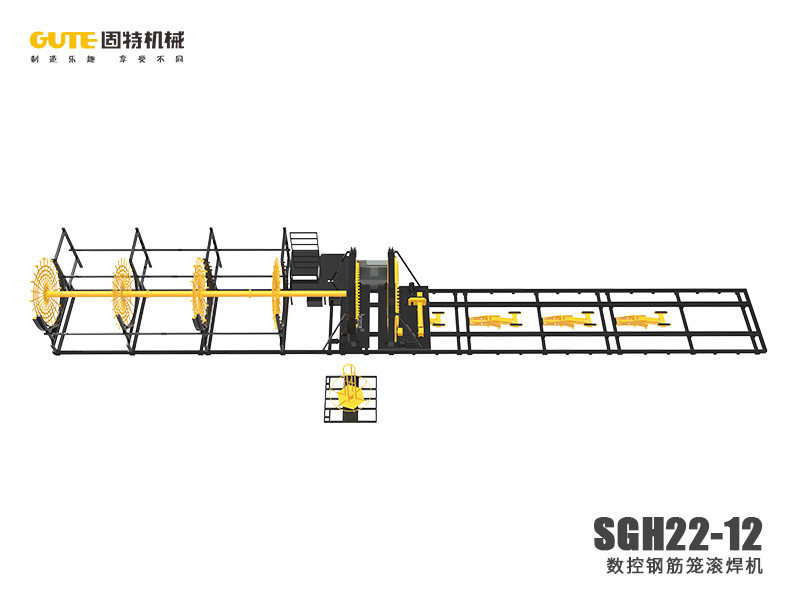

1500mm Automatic Cage Making Machine Rolling Cage Robot

Overview

Gute CNC steel cage roll welding machine is a professional equipment for making steel cages. It has the characteristics of uniform spacing, high dimensional accuracy, mechanical rotation, tight winding of the winding rib and the main rib, high concentricity, tight winding, and small deformation. At present, it is mainly used in the construction of cast-in-place piles in large bridges, high-speed railways, expressways and other fields.

Scope of application

Mainly used in the construction of high-speed, road and bridge, housing construction, railway and other projects.

Device parameters

Parameters	SGH15-12
Reinforced cage pile diameter	Φ300-φ2200(Full size adjustable)
Reinforcement cage length	3-12m
Maximum weight of steel cage	5500kg
Reinforcement diameter	Φ5-Φ14mm
Main rebar diameter	Φ12-Φ40mm
Hydraulic station pressure	10Mpa
total weight	15t
rated power	21KW
Interlocking rebar spacing	0-300mm
Size length * width * height	28.5×5×3.2m
Maximum walking speed	2.8m/min
Maximum rotation speed	2.8r/min
Control System	Touch screen + PLC + inverter + servo motor
Feeding device	Chain drive
Catheter material	Process heat treatment steel parts
Welding equipment	Carbon dioxide shielded welding
Welding method	Manual
Main rebar fixed tube	60sets

Equipment advantages

Automatic wire feeding mechanism, can adjust the distance online, with small error and high molding quality;

Equipped with automatic feeding device, easy to operate and improve efficiency;

Equipped with multiple batching automatic hydraulic rollers to prevent the steel cage from being deformed automatically

2.8m/Min Pile Cage Welding Machine 15T Automatic Cage Making Machine 3

The diameter error of the steel cage is accurately controlled.

Our factory

2.8m/Min Pile Cage Welding Machine 15T Automatic Cage Making Machine 4

2.8m/Min Pile Cage Welding Machine 15T Automatic Cage Making Machine 5

Our service

2.8m/Min Pile Cage Welding Machine 15T Automatic Cage Making Machine 6

Certification

2.8m/Min Pile Cage Welding Machine 15T Automatic Cage Making Machine 7
