5500KG Rolling Pile Cage Welding Machine 10Mpa By Touch Screen

Brand Name:	GUTE
Model Number:	SGH22-12
MOQ:	1set
Price:	32000-39000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

MODEL:

SGH22-12

CAGE DIAMETER:

650mm-2200mm

MAX. CAGE LENGTH:

12m(or Customized)

CAGE WEIGHT:

5500KG

COIL BAR DIAMETER:

5-14mm

MAIN FRAME BAR DIAMETER:

12-40 Mm

RATED POWER:

L*W*H:

28000×3700×2500mm

TOTAL WEIGHT:

FEEDING DEVICE:

CHAIN DRIVE

Supply Ability:

200set/month

Highlight:

5500KG Pile Cage Welding Machine

5500KG Rolling Cage Welding Machine

Rolling Cage Welding Machine 10Mpa

Product Description

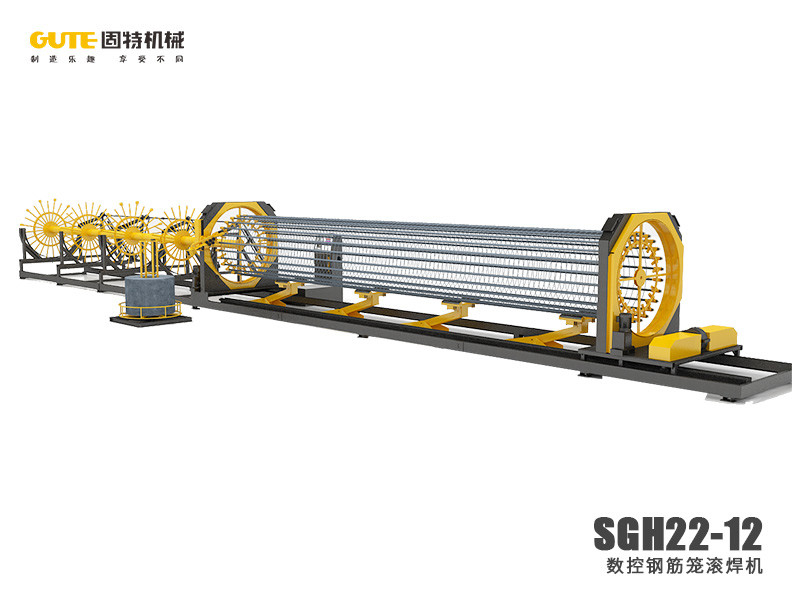

2200mm Cnc Cage Making Machine Rolling Cage Robot Welding Machine

Overview

Gute CNC steel cage roll welding machine is a professional equipment for making steel cages. It has the characteristics of uniform spacing, high dimensional accuracy, mechanical rotation, tight winding of the winding rib and the main rib, high concentricity, tight winding, and small deformation. At present, it is mainly used in the construction of cast-in-place piles in large bridges, high-speed railways, expressways and other fields.

Scope of application

Mainly used in the construction of high-speed, road and bridge, housing construction, railway and other projects.

Device parameters

Parameters	SGH22-12
Reinforced cage pile diameter	Φ650-φ2200(Full size adjustable)
Reinforcement cage length	3-12m
Maximum weight of steel cage	5500kg
Reinforcement diameter	Φ5-Φ14mm
Main rebar diameter	Φ12-Φ40mm
Hydraulic station pressure	10Mpa
total weight	15t
rated power	21KW
Interlocking rebar spacing	0-300mm
Size length * width * height	28.5×5×3.2m
Maximum walking speed	2.8m/min
Maximum rotation speed	2.8r/min
Control System	Touch screen + PLC + inverter + servo motor
Feeding device	Chain drive
Catheter material	Process heat treatment steel parts
Welding equipment	Carbon dioxide shielded welding
Welding method	Manual
Main rebar fixed tube	60sets

Equipment advantages

Automatic wire feeding mechanism, can adjust the distance online, with small error and high molding quality;

Equipped with automatic feeding device, easy to operate and improve efficiency;

Equipped with multiple batching automatic hydraulic rollers to prevent the steel cage from being deformed automatically;

The diameter error of the steel cage is accurately controlled.

Our factory

5500KG Rolling Pile Cage Welding Machine 10Mpa By Touch Screen 4

5500KG Rolling Pile Cage Welding Machine 10Mpa By Touch Screen 5

Our service

5500KG Rolling Pile Cage Welding Machine 10Mpa By Touch Screen 6

Certification

5500KG Rolling Pile Cage Welding Machine 10Mpa By Touch Screen 7
