Pile Cage Welding Machine

1500mm Rolling Pile Cage Welding Machine 2.8r/Min ISO9001

All Category

Automatic Stirrup Bending Machine

Automatic Rebar Bending Machine

Rebar Straightening And Cutting Machine

Mr. Jurrivh

sales5@cdgute.com

008618349380338

Contact Now

1500mm Rolling Pile Cage Welding Machine 2.8r/Min ISO9001

Brand Name:	GUTE
Model Number:	SGH15-22
MOQ:	1set
Price:	32000-39000USD/SET
Packaging Details:	plywood case
Payment Terms:	L/C, T/T, D/P, D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO 9001:2000

Model:

SGH22-12

Cage Pile Diameter:

650mm-2200mm

Cage Length:

12m(or Customized)

Coil Bar Dimeter:

5-14mm

Main Rebar Diameter:

12-40 Mm

L*W*H:

28000×3700×2500mm

Total Weight:

Rated Power:

Supply Ability:

200set/month

Highlight:

1500mm Pile Cage Welding Machine

1500mm Rolling Cage Welder machine

Rolling Cage Welder machine 2.8r/min

Product Description

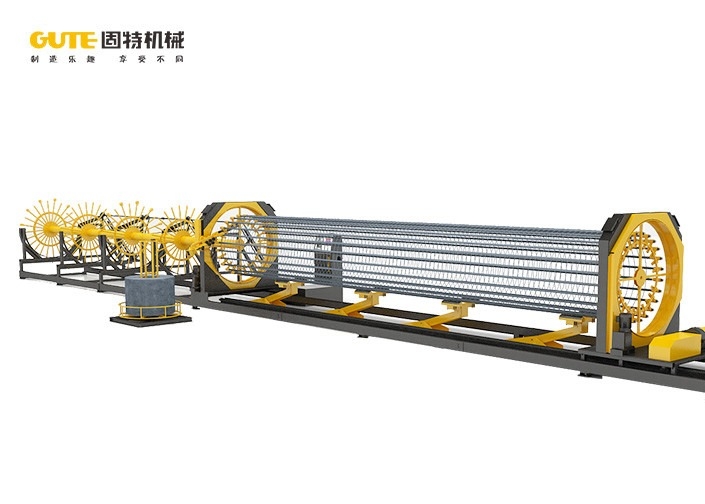

1500mm Cnc Pile Cage Making Machine Rolling Cage Robot Welder

Overview

Gute CNC steel cage roll welding machine is a professional equipment for making steel cages. It has the characteristics of uniform spacing, high dimensional accuracy, mechanical rotation, tight winding of the winding rib and the main rib, high concentricity, tight winding, and small deformation. At present, it is mainly used in the construction of cast-in-place piles in large bridges, high-speed railways, expressways and other fields.

Scope of application

Mainly used in the construction of high-speed, road and bridge, housing construction, railway and other projects.

Device parameters

Parameters	SGH22-12
Reinforced cage pile diameter	Φ650-φ2200(Full size adjustable)
Reinforcement cage length	3-12m
Maximum weight of steel cage	5500kg
Reinforcement diameter	Φ5-Φ14mm
Main rib diameter	Φ12-Φ40mm
Hydraulic station pressure	10Mpa
total weight	15t
rated power	21KW
Interlocking rib spacing	0-300mm
Size length * width * height	28.5×5×3.2m
Maximum walking speed	2.8m/min
Maximum rotation speed	2.8r/min
Feeding device	Chain drive
Catheter material	Process heat treatment steel parts
Welding equipment	Carbon dioxide shielded welding
Welding method	Manual

04 Equipment advantages

Automatic wire feeding mechanism, can adjust the distance online, with small error and high molding quality

Equipped with automatic feeding device, easy to operate and improve efficiency

Equipped with multiple batching automatic hydraulic rollers to prevent the steel cage from being deformed automatically

The diameter error of the steel cage is accurately controlled

Optional robot weld

Our factory

1500mm Rolling Pile Cage Welding Machine 2.8r/Min ISO9001 5

Our service 1500mm Rolling Pile Cage Welding Machine 2.8r/Min ISO9001 7

Certification

1500mm Rolling Pile Cage Welding Machine 2.8r/Min ISO9001 8
