Product Details:
Payment & Shipping Terms:
|
| Model: | SGH22-12 | CAGE DIAMETER: | 650mm-2200mm |
|---|---|---|---|
| MAX. CAGE LENGTH: | 12m(or Customized) | COIL BAR DIAMETER: | 5-14mm |
| MAIN FRAME BAR DIAMETER: | 12-40 Mm | RATED POWER: | 21KW |
| L*W*H: | 28000×3700×2500mm | TOTAL WEIGHT: | 15T |
| Highlight: | GUTE Rolling Cage Robot Welder,GUTE pile cage making machine,pile cage making machine PLC control |
||

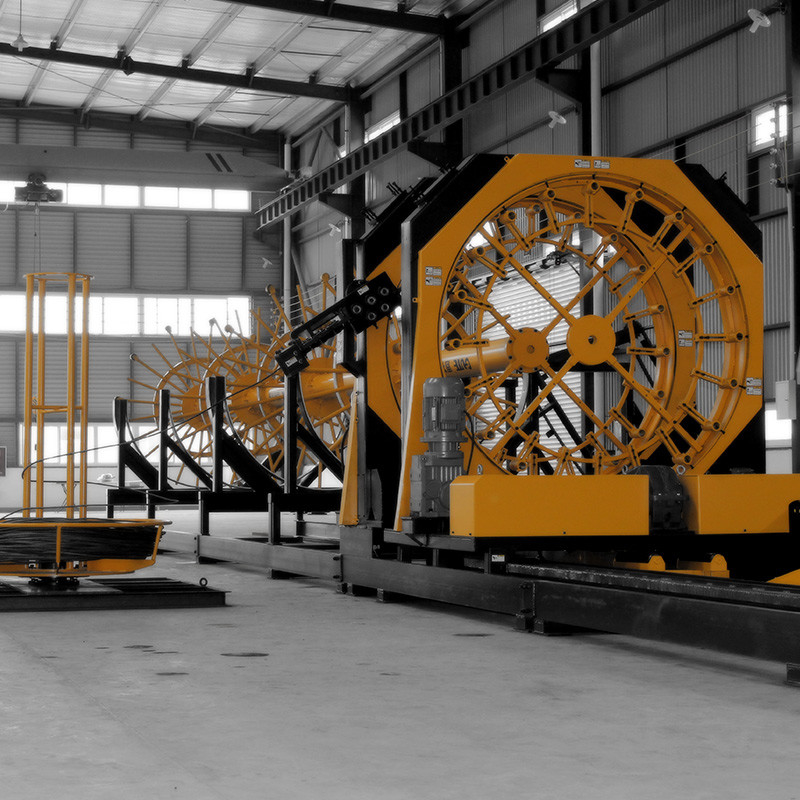

Overview Gute CNC steel cage roll welding machine is a professional equipment for making steel cages. It has the characteristics of uniform spacing, high dimensional accuracy, mechanical rotation, tight winding of the winding rib and the main rib, high concentricity, tight winding, and small deformation. At present, it is mainly used in the construction of cast-in-place piles in large bridges, high-speed railways, expressways and other fields. Scope of application Mainly used in the construction of high-speed, road and bridge, housing construction, railway and other projects. Device parameters Automatic wire feeding mechanism, can adjust the distance online, with small error and high molding quality Equipped with automatic feeding device, easy to operate and improve efficiency Equipped with multiple batching automatic hydraulic rollers to prevent the steel cage from being deformed automatically The diameter error of the steel cage is accurately controlled Optional robot weld Our factory Our service Certification Contacts Sales WhatsApp/WeChat: +8618349380338 Email: sales5@cdgute.com
Parameters

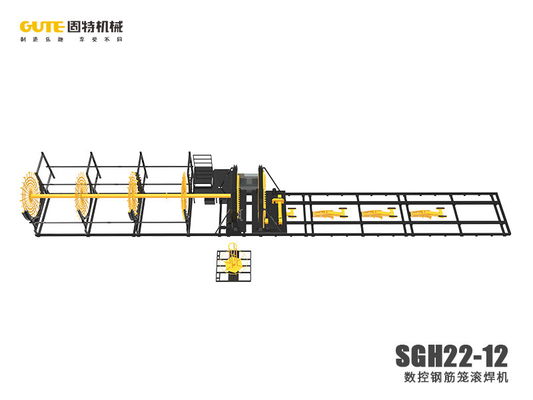

SGH22-12
Reinforced cage pile diameter
Φ650-φ2200(Full size adjustable)
Reinforcement cage length
3-12m
Maximum weight of steel cage
5500kg
Reinforcement diameter
Φ5-Φ14mm
Main rib diameter
Φ12-Φ40mm
Hydraulic station pressure
10Mpa
total weight
15t
rated power
21KW
Interlocking rib spacing
0-300mm
Size length * width * height
28.5×5×3.2m
Maximum walking speed
2.8m/min
Maximum rotation speed
2.8r/min
Control System
Touch screen + PLC + inverter + servo motor
Feeding device
Chain drive
Catheter material
Process heat treatment steel parts
Welding equipment
Carbon dioxide shielded welding
Welding method
Manual
Main rib fixed tube
60sets
