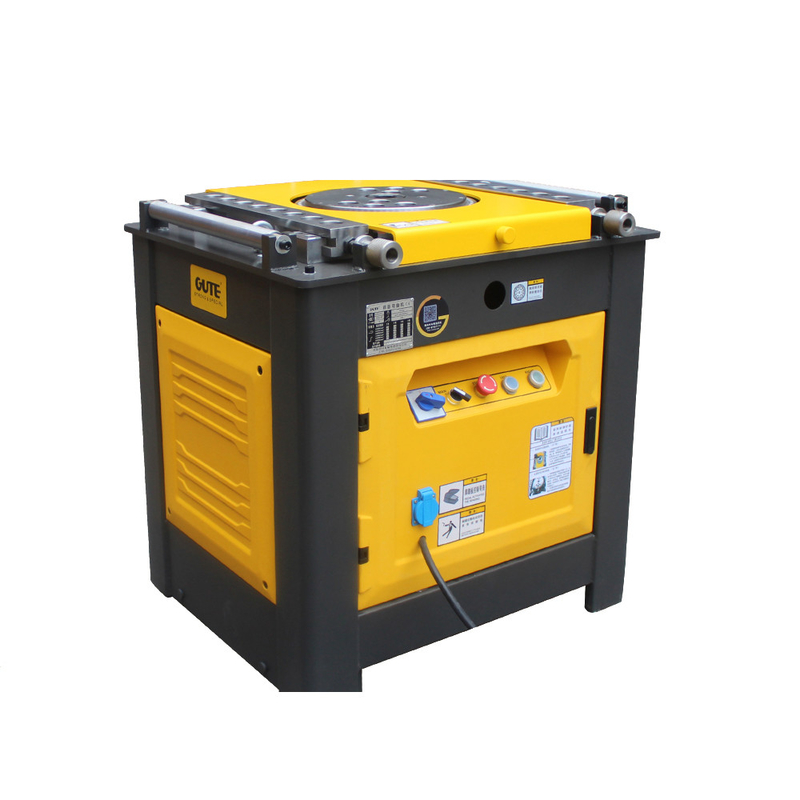

1430R/MIN Automatic Steel Rod Bending Machine GW42D-4

Brand Name: GUTE
Model Number: GW42D-4
MOQ: 1set
Price: 1300USD/SET
Packaging Details: plywood case
Payment Terms: L/C, T/T, D/P, D/A
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO 9001:2000
BENDING DIA:
6-42mm
MOTOR POWER:
3kw-4p
MOTOR SPEED:
1430R/MIN
CONTROL WAY:
AUTOMATIC
WORKING DISC SPEED:
7-10R/MIN
GEAR BOX OIL:
16L
NOISE:
75DB
WEIGHT:
365KG
Supply Ability:
200set/month
Highlight:

steel rod bending machine GW42D-4

,

1430R/MIN steel rod bending machine

,

1430R/MIN automatic rebar bender

Product Description
Steel rod bender machine GW42D-4
PRODUCT DESCRIPTION


•GW42D-4 adopts the fully enclosed gear box separated from the working disk for no distortions even under the condition of heavy loads and no oil leaking while lifting the machine.

•Gears,gear shafts,working disk,stop gauge,saddles,pile heads and pile head bushes made of high-quality alloyed steel with proper heat treatment(quenching/tempering/high frequency)and 3mm thick external case to ensure high performances also under heavy loads and long working life.

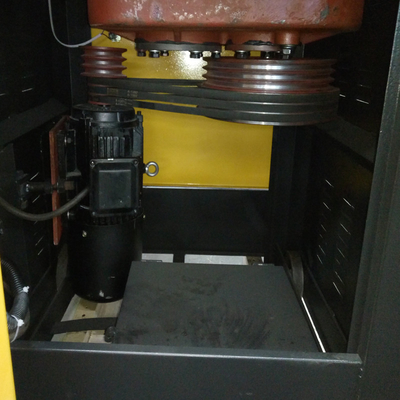

•Dust proof brake motor and two limit switch to ensure the accuracy of the bending angle also after stopping and restarting.

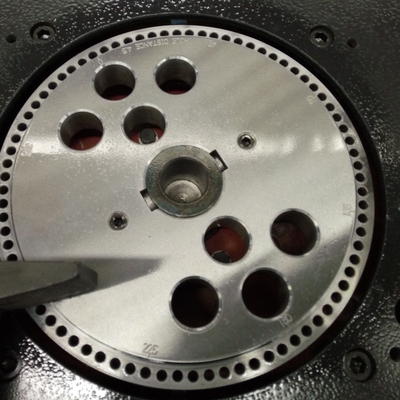

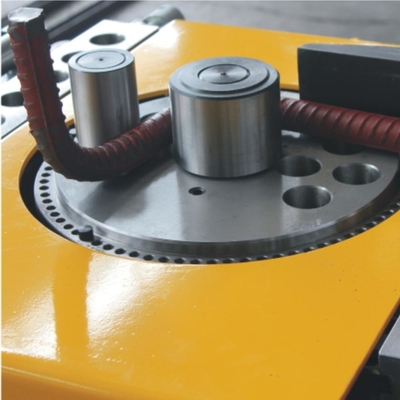

•Insert pin type disk and movable saddles for a precise adjusting of the bending angle.

•CE certification

1430R/MIN Automatic Steel Rod Bending Machine GW42D-4 0




TECHNICAL DATA

Bending Capacity 6-42 mm (ob ≤450N/mm2) 6-36 mm (ob ≤650N/mm2)
Operation Automatic
Type of Motor YEJ 100L2-4 (Brake motor)
Motor Power 3 KW-4P
Motor Roatation Speed 1420 R/min
Speed of Working Disc 12 R/min
Noise Value(1M Away) ≤80dB(A)
Weight 374KG
Size(L*W*H) 810*760*860 mm
Certification 2006/42/EC - 2006/95/EC

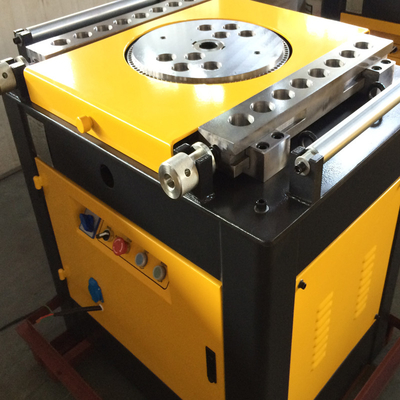

DETAIL LOOK


1430R/MIN Automatic Steel Rod Bending Machine GW42D-4 1


PRODUCTION LINE


1430R/MIN Automatic Steel Rod Bending Machine GW42D-4 2


TRANSPORTATION


1430R/MIN Automatic Steel Rod Bending Machine GW42D-4 3


CONSTRUCTION SITE


1430R/MIN Automatic Steel Rod Bending Machine GW42D-4 4


CERTIFICATION


1430R/MIN Automatic Steel Rod Bending Machine GW42D-4 5


WORLDWIDE PARTNER


1430R/MIN Automatic Steel Rod Bending Machine GW42D-4 6


OUR SHOP


1430R/MIN Automatic Steel Rod Bending Machine GW42D-4 7


CONTACT

Contacts: George/Nancy/Tiger/Arron
Mobile(What's APP): +86 13488903180/+86 13881910250/+86 18782927342/+86 15114038508
Skype: George-pengtao/Nancy.liya/gute.amy/live:sales2_1196
Tel: +86-28-66292767
