300mm CNC Pile Cage Welding Machine Steel Cage Welder

Brand Name: GUTE
Model Number: SGH15-12
MOQ: 1set
Price: 32000-39000USD/SET
Packaging Details: plywood case
Payment Terms: L/C, T/T, D/P, D/A
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO 9001:2000
CAGE DIAMETER:
300mm-1500mm
MAX. CAGE LENGTH:
12m(or Customized)
CAGE WEIGHT:
5500KG
COIL BAR DIAMETER:
5-14mm
MAIN FRAME BAR DIAMETER:
12-40 Mm
HYDRAULIC PRESSURE:
10 Mpa
RATED POWER:
21KW
L*W*H:
28000×3700×2500mm
TOTAL WEIGHT:
15T
Supply Ability:
200set/month
Highlight:

21KW Pile Cage Welding Machine

,

21KW CNC Cage Making Machine

,

CNC Cage Welding Machine anti wear

Product Description



Construction concrete Pile cage making machine/Rebar cage welding machine

Features:
1. control system: PLC, touch screen, inverter.
2. automatic wire feeding mechanism, the spacing can be adjusted online, the error is small, high molding quality.
3. frequency control drag cage institutions, high running accuracy.
4. with more automatic hydraulic feed rollers, to prevent steel cage deformation due to its own weight.
5. equipped with automatic feeding device, easy to operate and improve efficiency.
6. template using the template ring plus catheter combination, can be quickly replaced and transform the quantity of main steel cage wire .

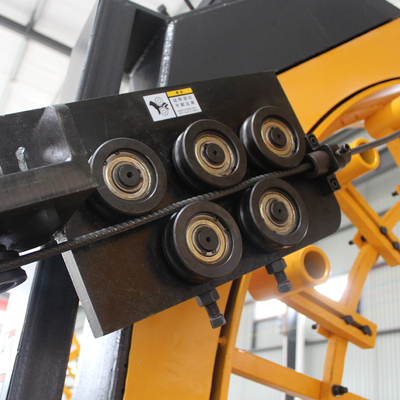

7. straightening systems are made of high strength alloy material, high strength, anti-wear and improve the life of wearing parts



CNC PILE CAGE   WELDING MACHINE(Automatic Welding)

CAGE DIAMETER

300mm-2000mm

MAX. CAGE LENGTH

12m(or customized)

CAGE WEIGHT

5500KG

COIL BAR DIAMETER

5-14mm

MAIN FRAME BAR DIAMETER

12-40 mm

HYDRAULIC PRESSURE

10 Mpa

RATED POWER

21KW

L×W×H

28000×8000×33000mm

CERTIFICATION

ISO 9001:2008

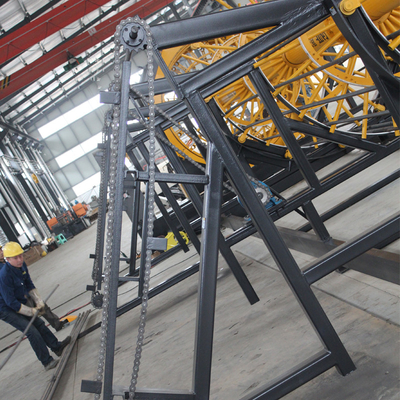

300mm CNC Pile Cage Welding Machine Steel Cage Welder 0

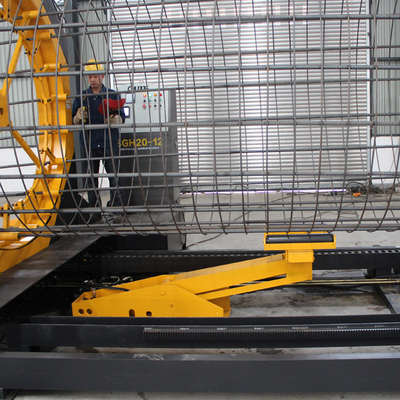

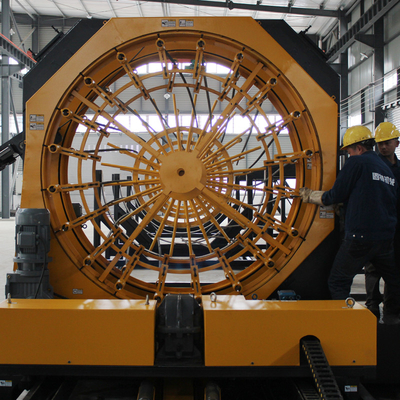

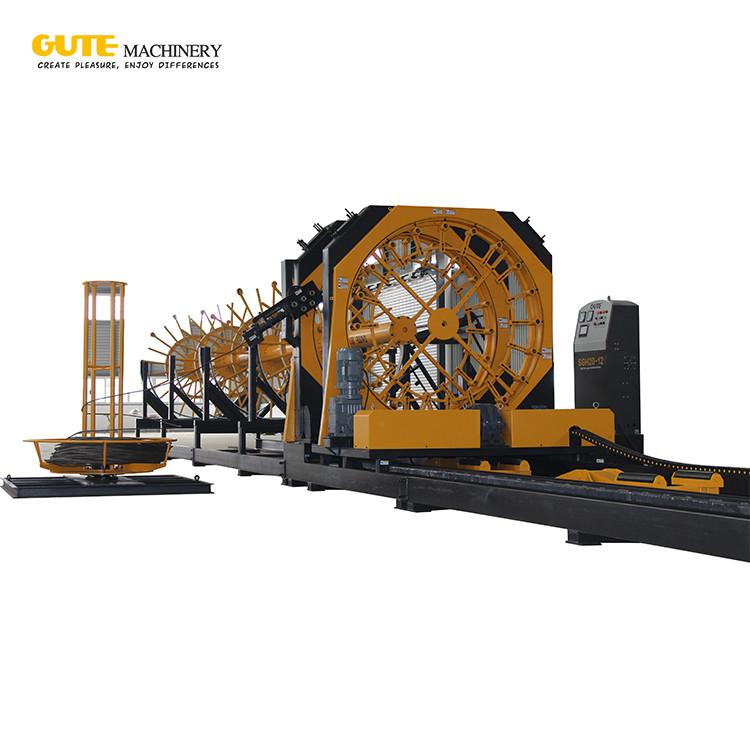

300mm CNC Pile Cage Welding Machine Steel Cage Welder 1300mm CNC Pile Cage Welding Machine Steel Cage Welder 2300mm CNC Pile Cage Welding Machine Steel Cage Welder 3

Parameters

SGH15-12

SGH20-12

SGH22-12

Cage pile diameter

Φ300-φ1500 full size adjustable

Φ650-φ2000 full size adjustable

Φ650-φ2200 full size adjustable

Cage length

3-12m

3-12m

3-12m

Cage weight

5500kg

5500kg

6000kg

Coil bar diameter

Φ5-Φ14mm

Φ5-Φ14mm

Φ5-Φ14mm

Main frame bar diameter

Φ12-Φ40mm

Φ12-Φ40mm

Φ12-Φ40mm

Total weight

15t

14t

15t

Rated power

21KW

21KW

21KW

Spacing of winding bars

0-300mm

0-300mm

0-300mm

L*W*H

28.5*3.7*2.5(M)

28.5*4.7*3(M)

28.5*5*3.6(M)

Maximum walking speed

2.8m/min

2.8m/min

2.8m/min

Maximum rotation speed

4r/min

3.1r/min

2.8r/min

Feeding Device

Chain Drive

Chain Drive

Chain Drive

Pipe Material

Process Heat Treatment Steel

Process Heat Treatment Steel

Process Heat Treatment Steel

Welding equipment

carbon dioxide shielded welding

carbon dioxide shielded welding

carbon dioxide shielded welding

Welding method

Manual/Auto

Manual/Auto

Manual/Auto

Certificate

300mm CNC Pile Cage Welding Machine Steel Cage Welder 4


WORLDWIDE PARTNER


300mm CNC Pile Cage Welding Machine Steel Cage Welder 5


OUR SHOP


300mm CNC Pile Cage Welding Machine Steel Cage Welder 6


CONTACT

Contacts: Jurrivh
Mobile(What's APP): +86 18349380338
Email: sales5@cdgute.com
