Product Details:
Payment & Shipping Terms:
|

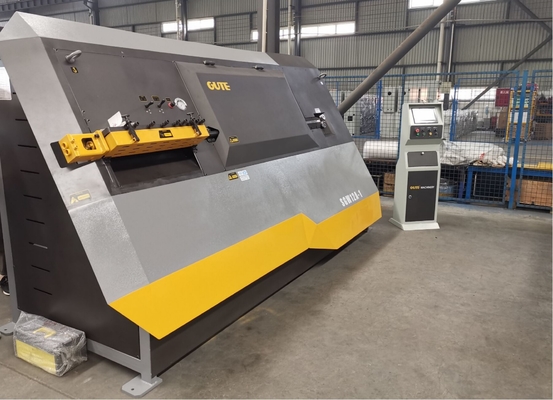

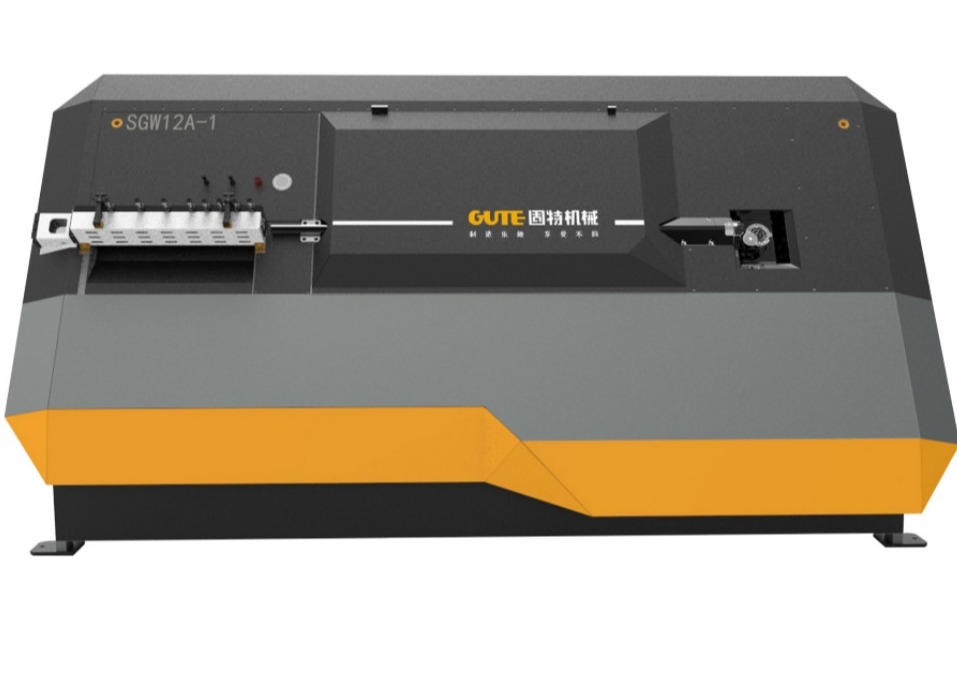

| MODEL: | SGW12A-1 | SINGLE WIRE BENDING: | 5-12mm |
|---|---|---|---|
| DOUBLE WIRE BENDING: | 5-8 Mm | MAX. LENGTH OF STIRRUP SIDE: | 900 Mm |
| MIN. LENGTH OF STIRRUP SIDE: | 140 Mm | BENDING DIRECTION: | Single-direction |
| L×W×H: | 3600×1460×1950 Mm | WEIGHT: | 1.5T |
| High Light: | CNC Stirrup Bending Machine 1600pcs/h,PLC control 12mm Steel Bar Bender,12mm Steel Bar Bender 1600pcs/h |
||
Overview Finished products Device parameters 100 m/min 1050°/sec Equipment advantages Our factory Our service Certification
1. IKO bearings imported from Japan are used in key parts to ensure service life.

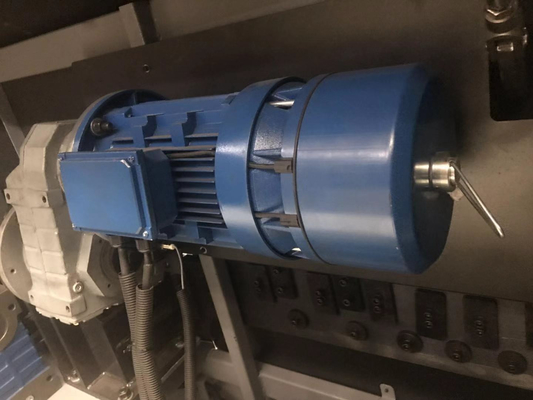

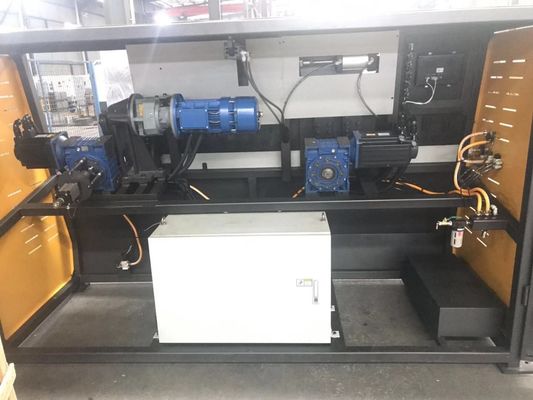

2. PLC and servo motor control.
3. 1600pcs/h stirrups and each batch can be yield up to 8tons.
4. Include 2unit Pay-off.
Single wire bending diameter
5–12mm
Rebar double wire bending diameter
5–8mm
Maximum towing speed
Maximum bending speed
Rib straightness error
0.02/1m
Stirrup length accuracy
±1mm
Rib length accuracy
±5mm
Maximum bending angle
±180°
Longest stirrup side
900mm
Shortest stirrup side
140mm
Total Weight
1.5T
